RSHEY35-TV-VA-FD

Plummer block housing unit RSHEY35-TV-VA-FD

Thêm vào yêu cầu báo giá

Main Dimensions & Performance Data

d	35 mm	Bore diameter
L	110 mm	Length
H₂	95 mm	Height
≈m	0.74 kg	Weight

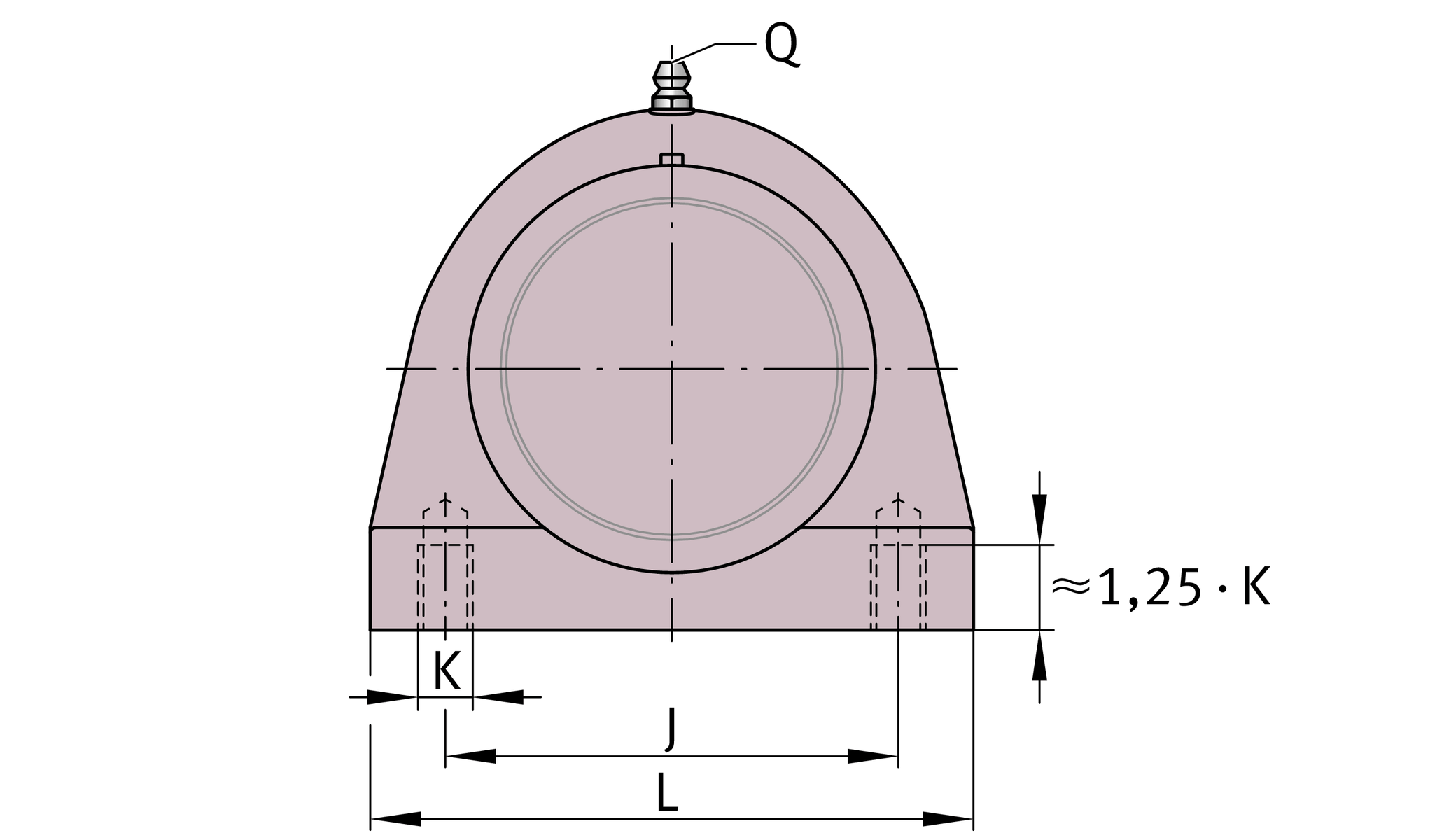

Mounting dimensions

J	82.6 mm	Distance fixing bore
K	M10	Thread fixing bore
W	3 mm	Width of flats

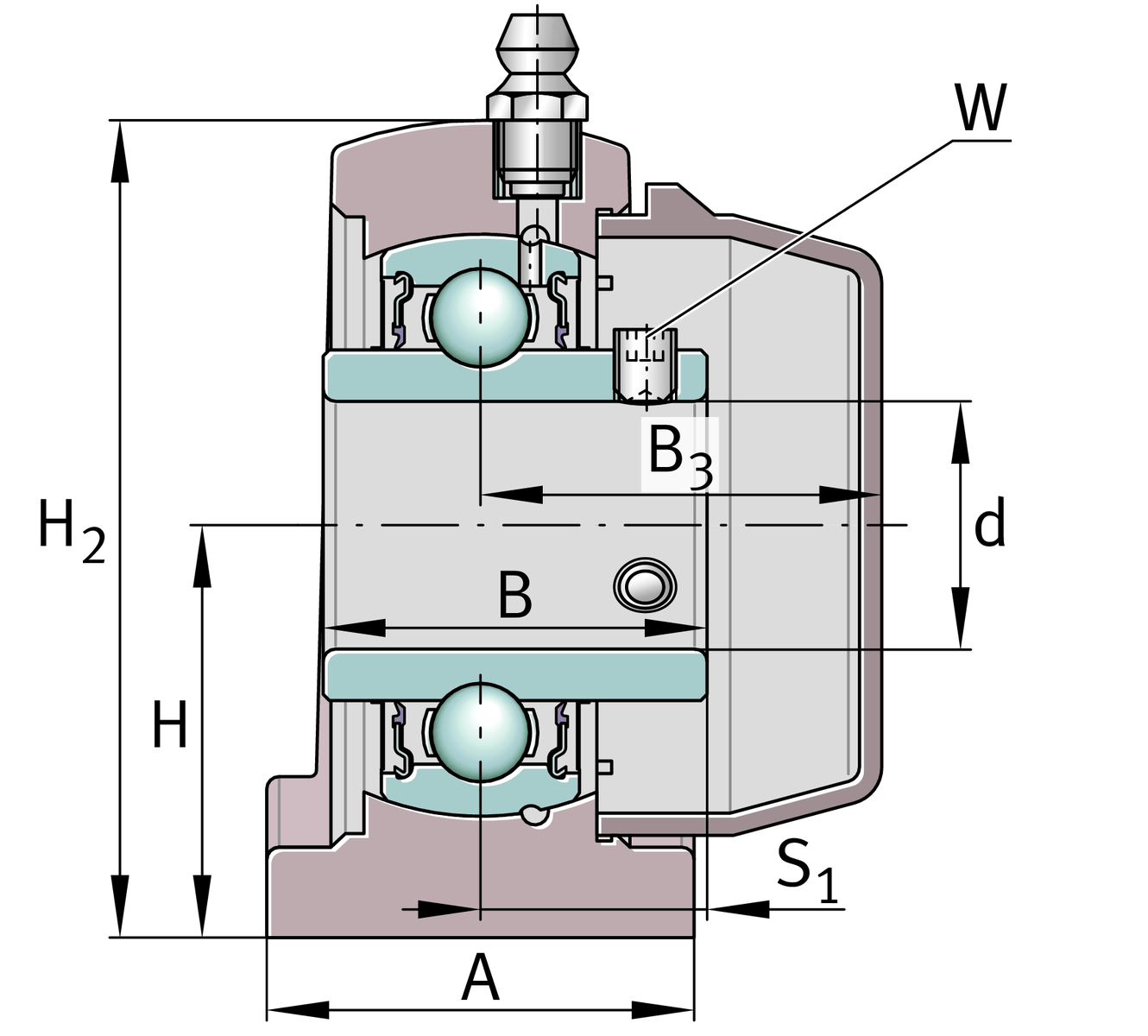

Dimensions

H	47.6 mm	Distance shaft axis
A	47.5 mm	Width (base)
B	42.9 mm	Width
B₃	45.05 mm	Distance housing centre to cap end
S₁	25.4 mm	Distance raceway to locking collar
Q	1/4"-28 UNF	Connection thread for lubrication

Additional information

	GEH.SHE07-TV-WHT	Housing
	GYE35-KRR-B-FA107-VA-FD	Bearing designation
	KASK07-S-G-WHT	End cap
	KASK07-S-R-NBR-WHT	Open protecting cap

Temperature range

T_min	-30 °C	Operating temperature min.
T_max	100 °C	Operating temperature max.

Your current product variant

Special material	TV	Plastic housing
Corrosion resistant bearing	VA	Corrosion-resistant VA design
Material	TV-FD	Plastic for food industry
