RSHE35-TV-VA-FD
Plummer block housing unit RSHE35-TV-VA-FD
Thêm vào yêu cầu báo giá

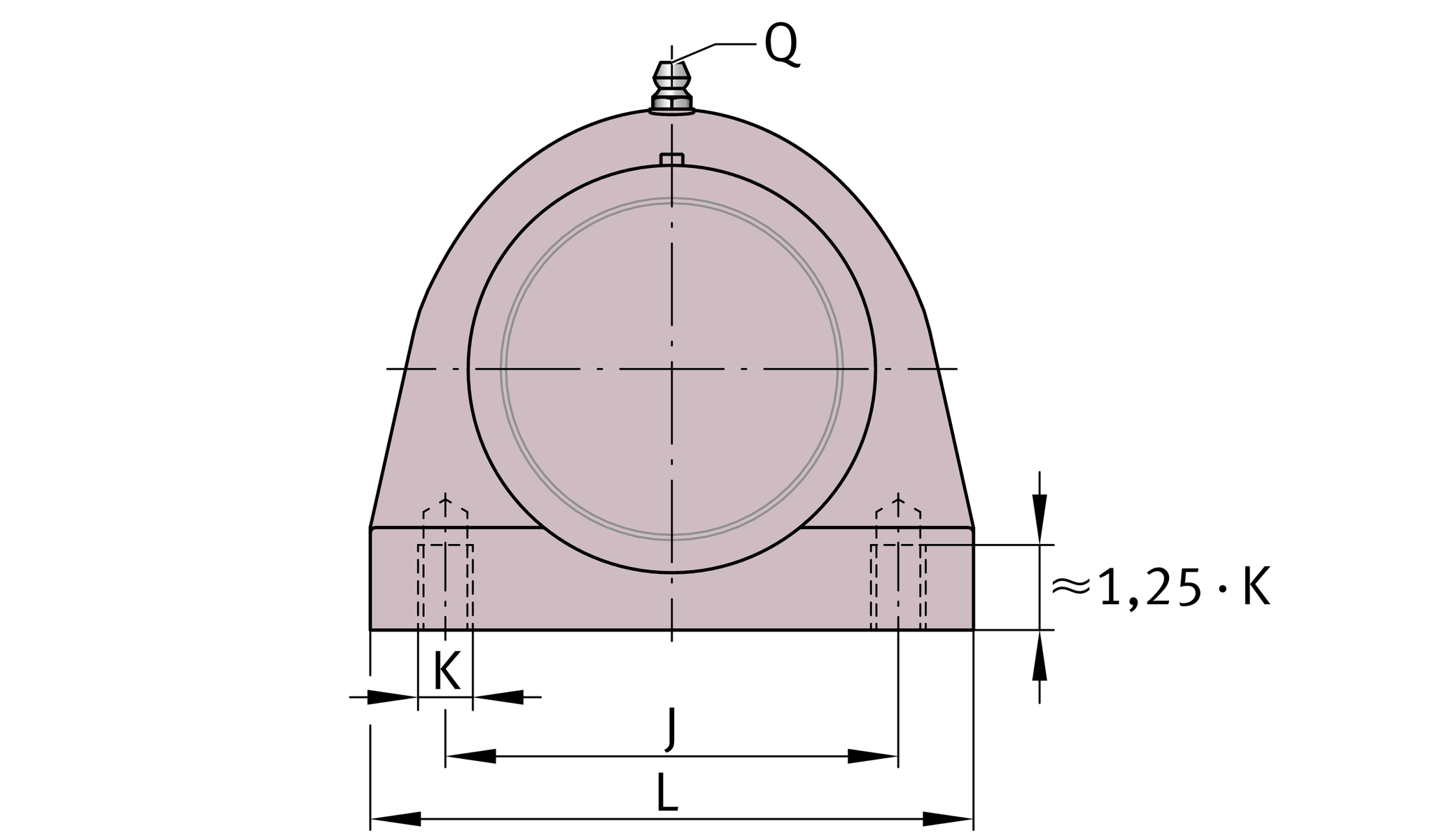

Main Dimensions & Performance Data
d
35 mm
Bore diameter
L
110 mm
Length
H2
95 mm
Height
≈m
0.79 kg
Weight

Mounting dimensions
J
82.6 mm
Distance fixing bore
K
M10
Thread fixing bore
W
3 mm
Width of flats

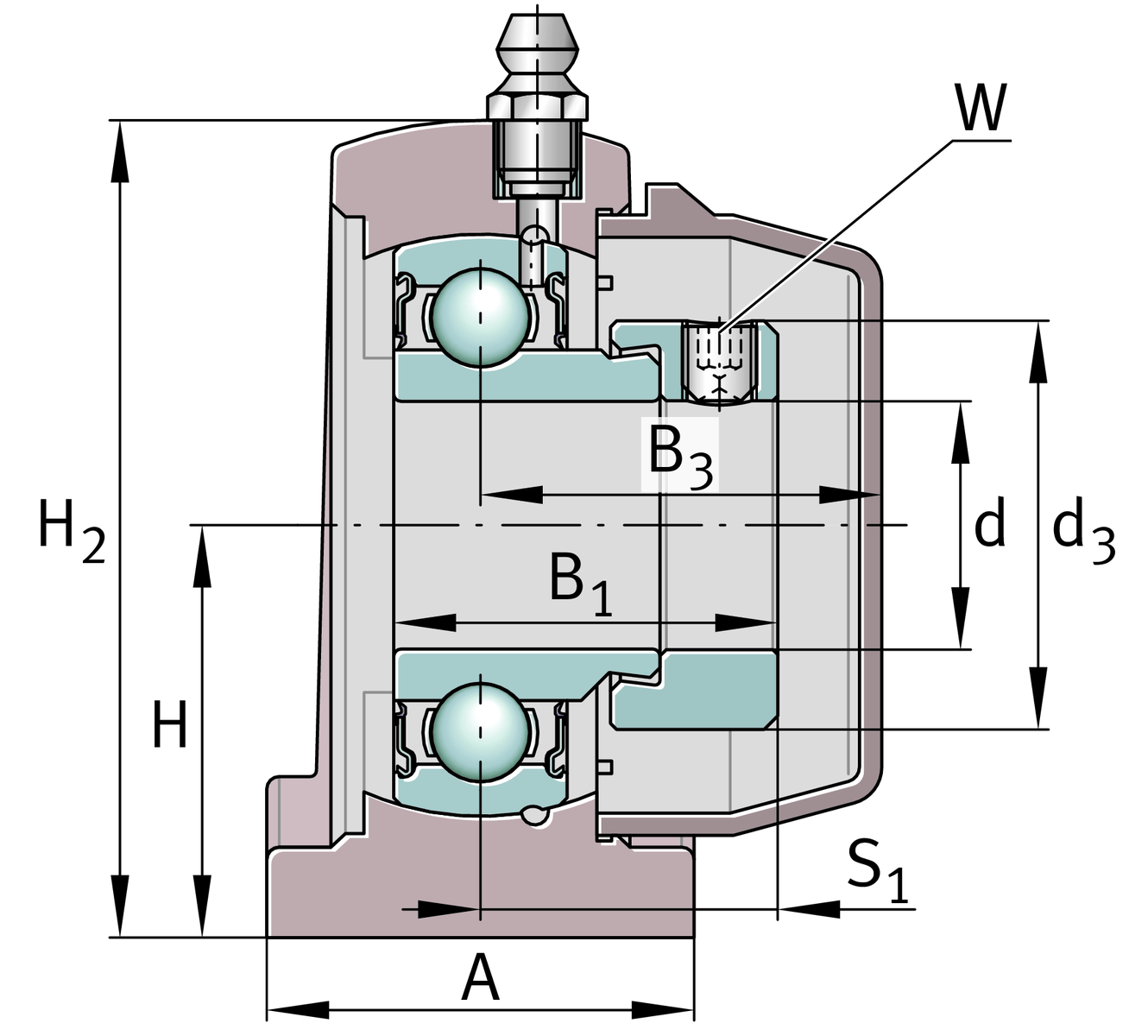

Dimensions
H
47.6 mm
Distance shaft axis
A
47.5 mm
Width (base)
B1
38.9 mm
Locking collar total width
B3
45.05 mm
Distance housing centre to cap end
S1
30.4 mm
Distance raceway to locking collar
Q
1/4"-28 UNF
Connection thread for lubrication
d3
55.6 mm
Outside diameter eccentric locking collar

Additional information
GEH.SHE07-TV-WHT
Housing
GE35-KRR-B-FA107-VA-FD
Bearing designation
KASK07-S-G-WHT
End cap
KASK07-S-R-NBR-WHT
Open protecting cap

Temperature range
Tmin
-30 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Your current product variant
Special materialTVPlastic housing
Corrosion resistant bearingVACorrosion-resistant VA design
MaterialTV-FDPlastic for food industry
