RUDS45X150-D-H
Damping carriage for linear recirculationg roller bearing and guideway assembly RUDS45X150-D-H
Thêm vào yêu cầu báo giá

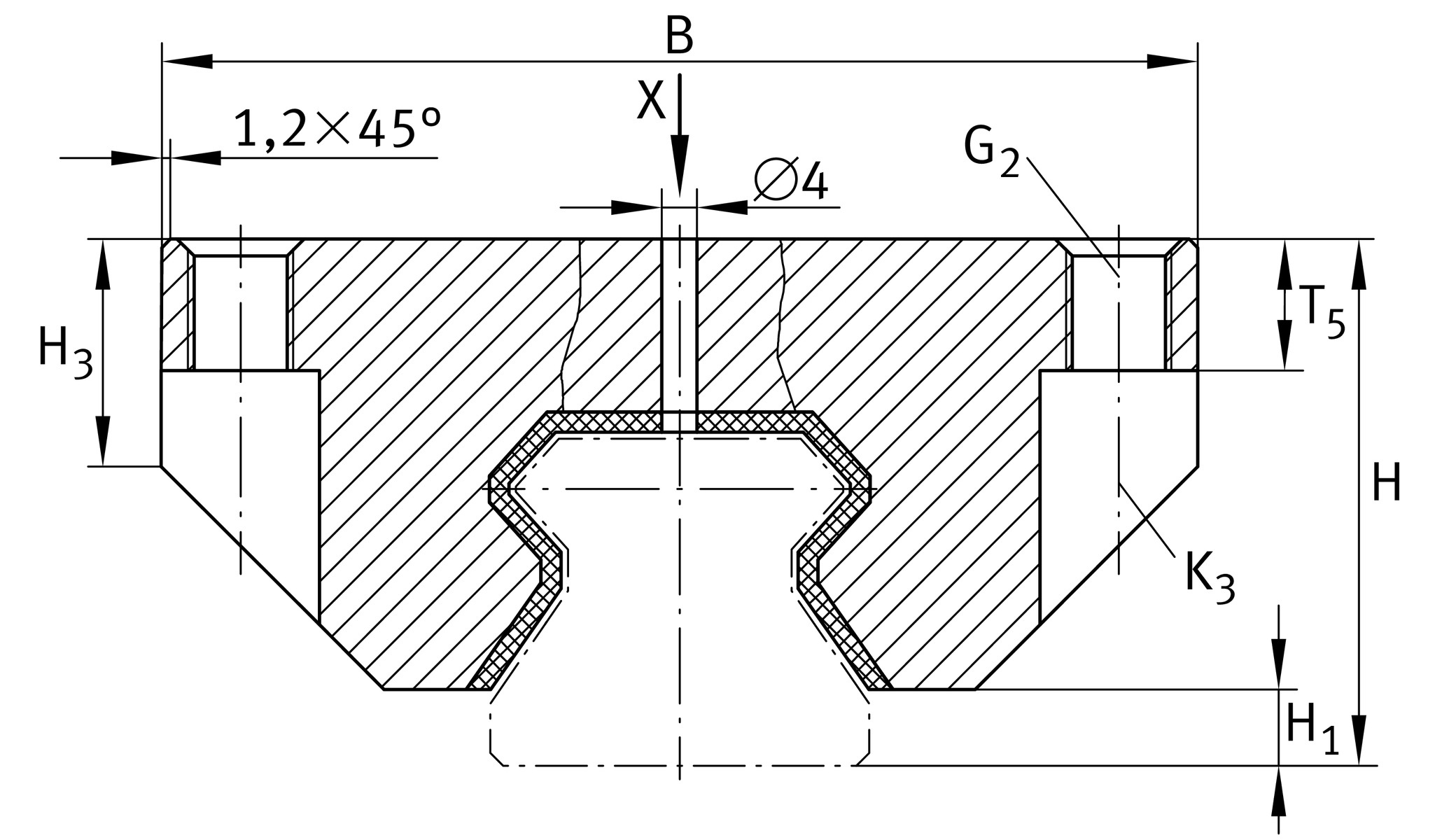

Main Dimensions & Performance Data
H
70 mm
height
B
84 mm
width
L1
150
standard length 1 1
≈m
4.51 kg
Weight

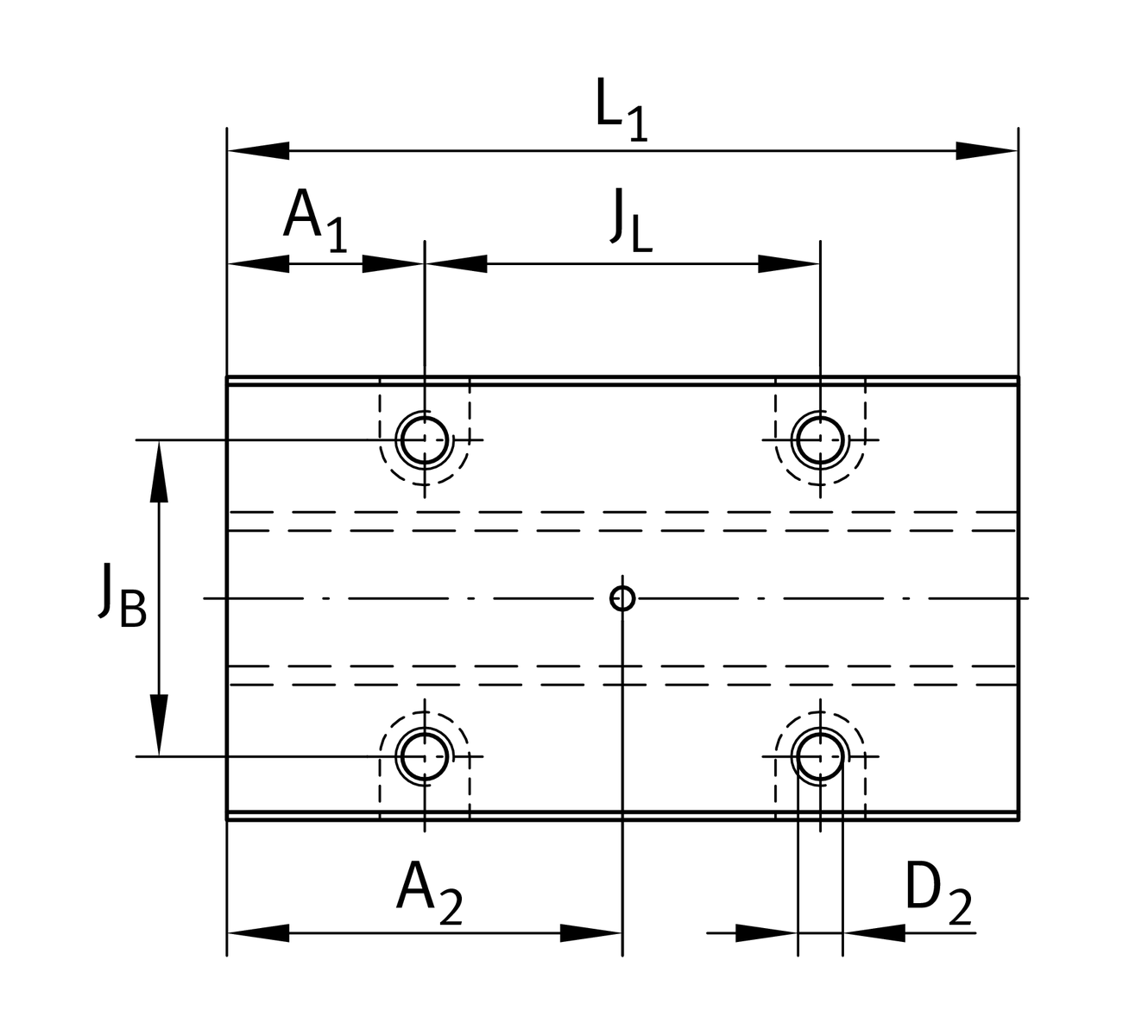

Mounting dimensions
H1
10.7 mm
T5
12 mm
H3
53 mm
JB
60 mm
A1
37.5 mm
A2
75 mm
JL
75 mm
G2
M10
fixing screws 2
G2 MA
83 Nm
tightening torque 3
n
4
number of fixing threads

Related products
RUE45-E-H, RUE45-E-HL, RUE45-F-H, RUE45-F-HL
suitable linear guidances

Your current product variant
Size code45
Length150standardlength 1
SuffixD
VersionHhigh version
