RUDS35X225-D-H
Damping carriage for linear recirculationg roller bearing and guideway assembly RUDS35X225-D-H
Thêm vào yêu cầu báo giá

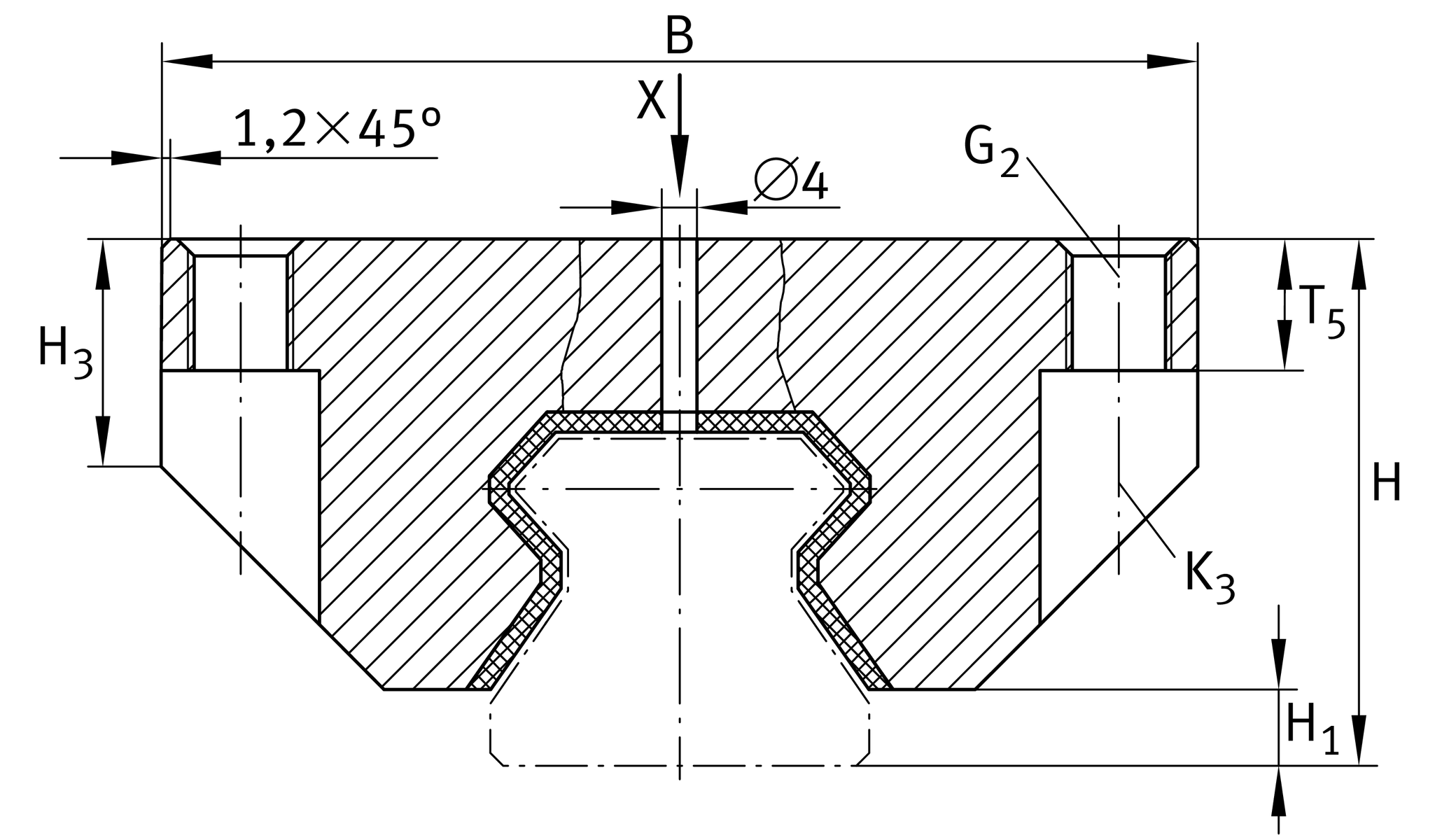

Main Dimensions & Performance Data
H
55 mm
height
B
68 mm
width
L2
225
standard length 2 1
≈m
4.194 kg
Weight

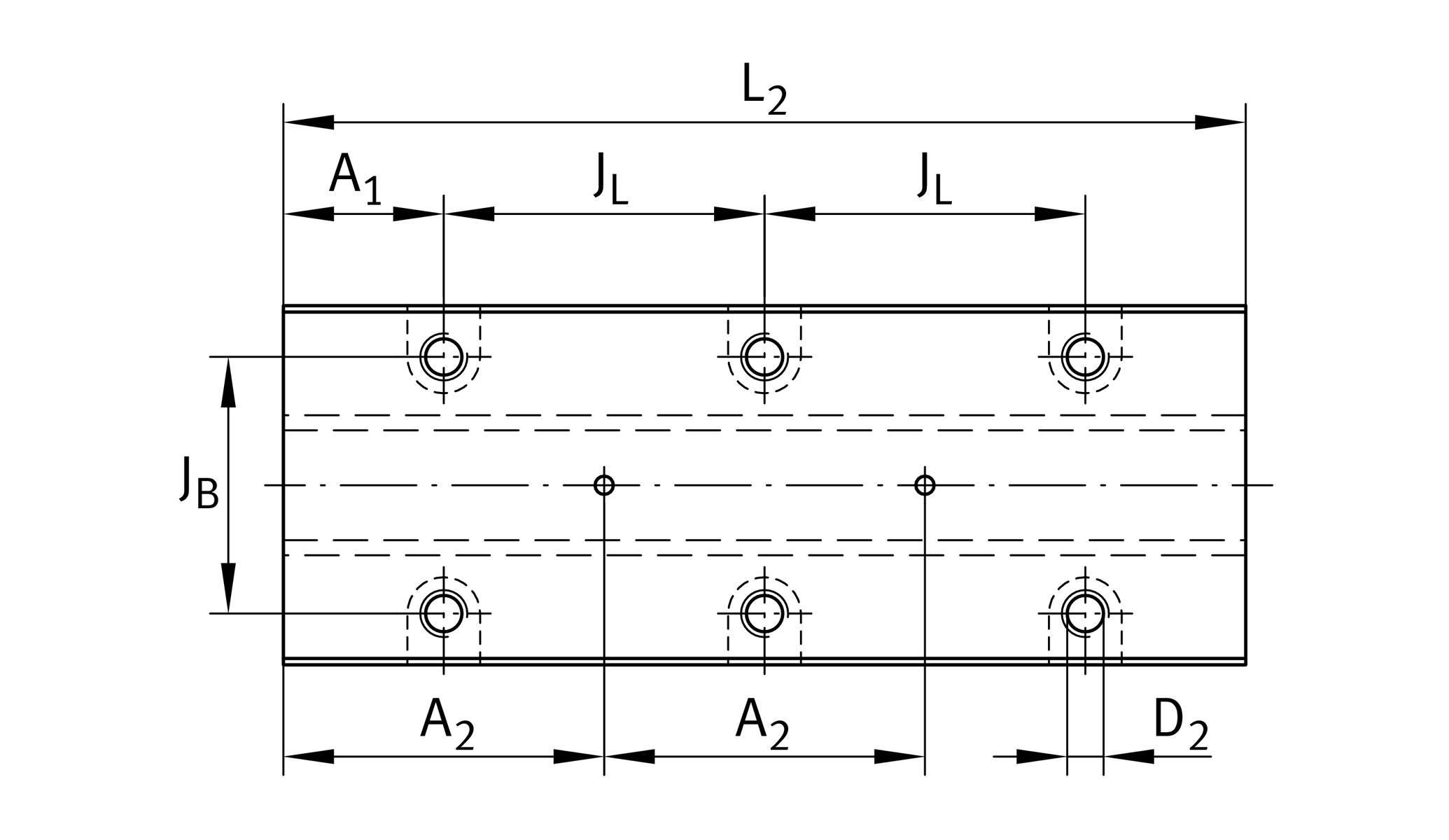

Mounting dimensions
H1
8.8 mm
T5
12 mm
H3
41 mm
JB
50 mm
A1
37.5 mm
A2
75 mm
JL
75 mm
G2
M8
fixing screws 2
G2 MA
42.2 Nm
tightening torque 3
n
6
number of fixing threads

Related products
RUE35-E-H, RUE35-E-HL, RUE35-F-H, RUE35-F-HL
suitable linear guidances

Your current product variant
Size code35
Length225standardlength 2
SuffixD
VersionHhigh version
