Main Dimensions & Performance Data
| D | 62 mm | Outside diameter |
| Fw | 35 mm | Under roller diameter |
| C | 19.8 mm | Width, outer ring |
| Cr w | 17,100 N | Basic dynamic load rating, radial |
| C0r w | 26,500 N | Basic static load rating, radial |
| Cur w | 3,600 N | Fatigue load limit, radial |
| nD G | 1,400 1/min | Speed on permanent grease lubrication |
| ≈m | 276 g | Weight |

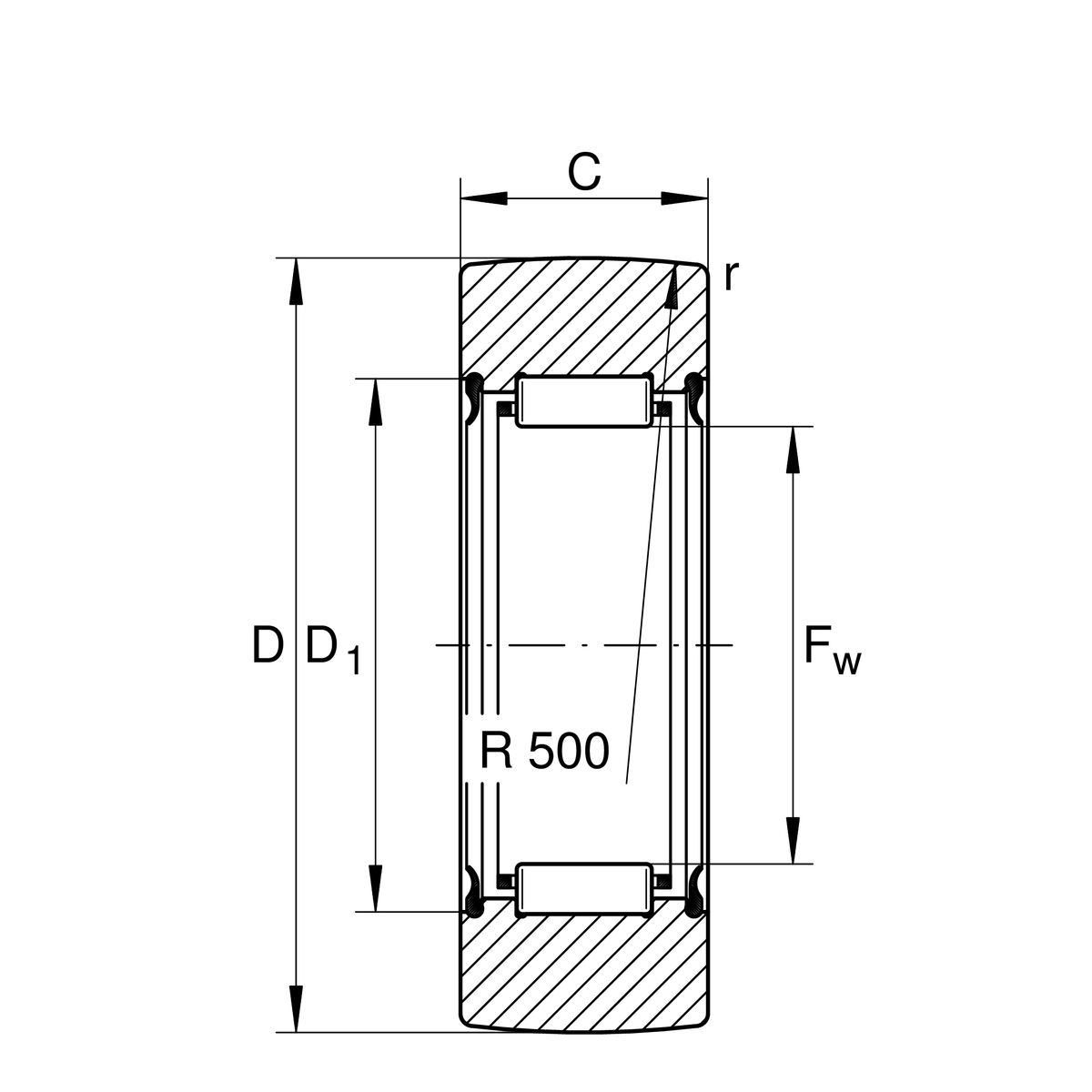

Dimensions
| D1 min | 43 mm | Minimum mounting dimension |
| rmin | 1 mm | Minimum chamfer dimension |
| R | 500 mm | Radius of outer ring outside profile |
Your current product variant
| Sealing | 2RSR | Lip seal on both sides |
| Outer Ring profile | R500 | R500 |
