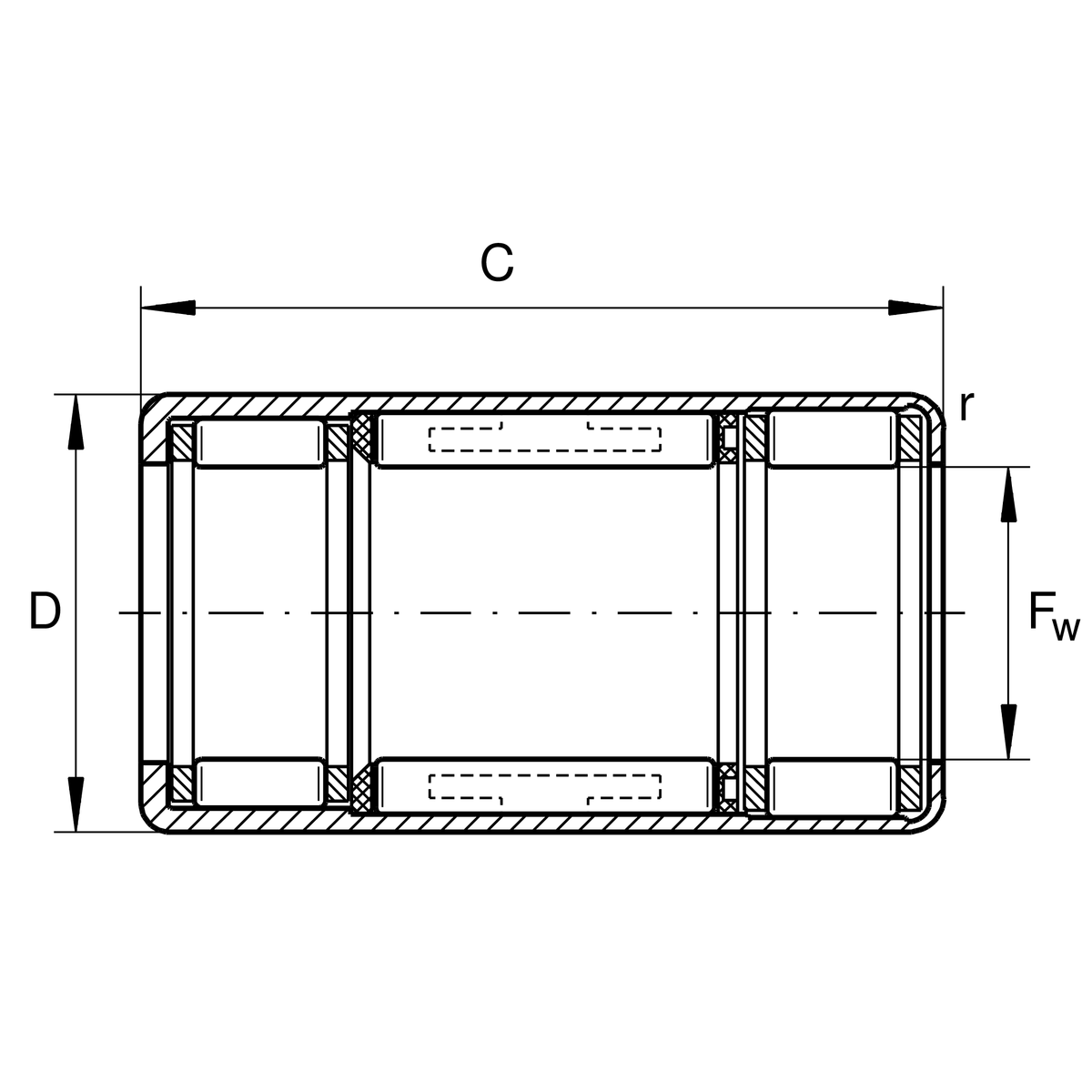

Main Dimensions & Performance Data
| Fw | 35 mm | Under roller diameter |
| D | 42 mm | Outside diameter |
| C | 30 mm | Width, outer ring |
| Cr | 12,200 N | Basic dynamic load rating, radial |
| C0r | 18,800 N | Basic static load rating, radial |
| rmin | 0.3 mm | Minimum chamfer dimension |
| Cur | 2,600 N | Fatigue load limit, radial |
| nGA | 3,900 1/min | Limiting speed for rotating outer ring |
| nGW | 3,900 1/min | Limiting speed for rotating shaft |
| ≈m | 58.215 g | Weight |
Mounting dimensions
| Md per | 121 Nm | Permissible torque |
Temperature range
| Tmin | -10 °C | Operating temperature min. |
| Tmax | 70 °C | Operating temperature max. |
Your current product variant
| Lubricant | L564 | Grease (L564/standart specific - dynamic) |
| Coating | Without | |
| Shape of outer surface | Without | Smooth outside surface |
| Spring design | Standard | Steel pressure springs |
