FLCTE35-XL
Flanged housing unit FLCTE35-XL
Thêm vào yêu cầu báo giá

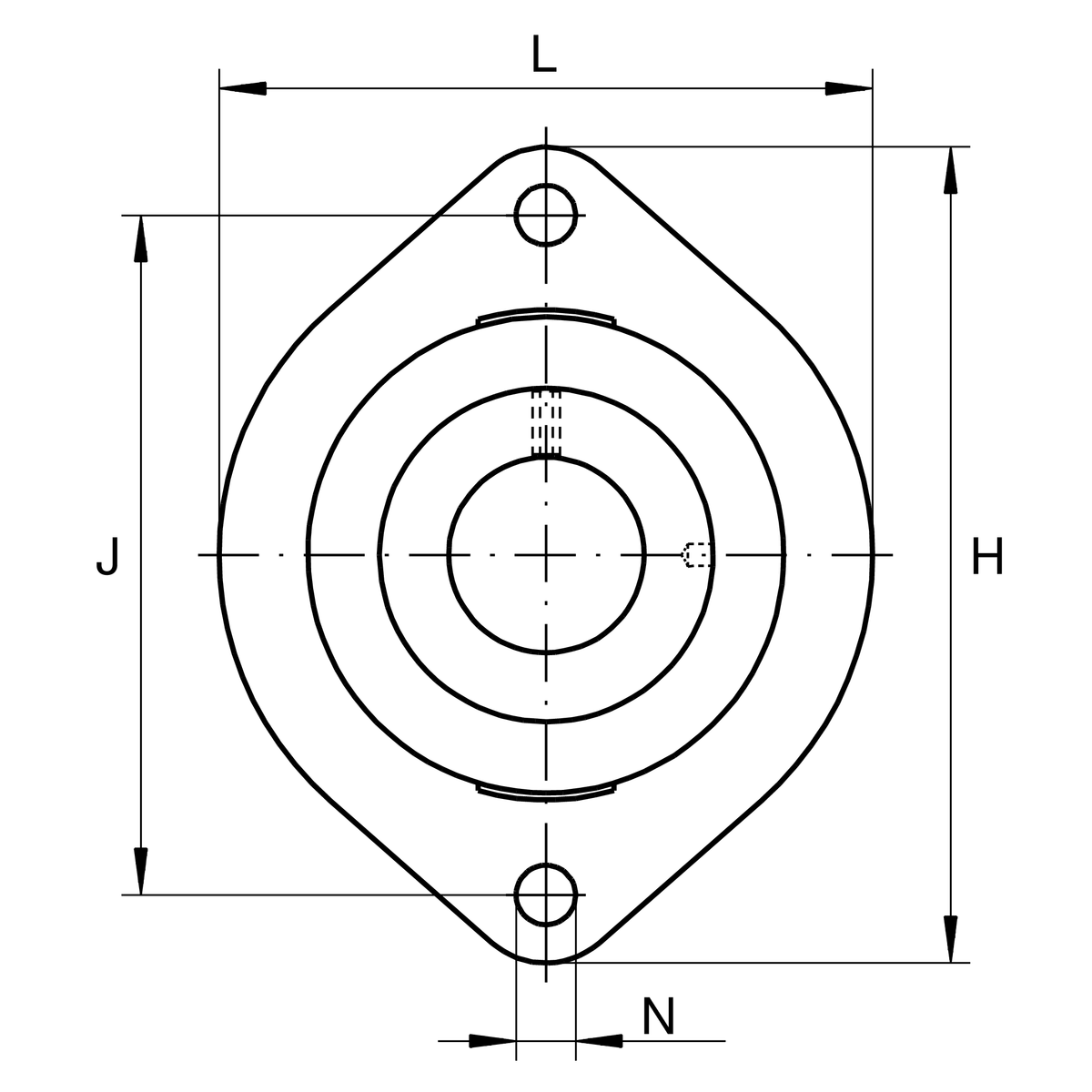

Main Dimensions & Performance Data
d
35 mm
Bore diameter
L
94 mm
Flange width
H
126 mm
Height flange
U
42 mm
Total height unit
Cr
27,500 N
Basic dynamic load rating, radial
C0r
15,300 N
Basic static load rating, radial
Cur
650 N
Fatigue load limit, radial
≈m
1.02 kg
Weight

Mounting dimensions
J
100 mm
Distance fixing bore
N
11.5 mm
Fixing bore
W
5 mm
Width across flats
n
2
Number of screwing holes

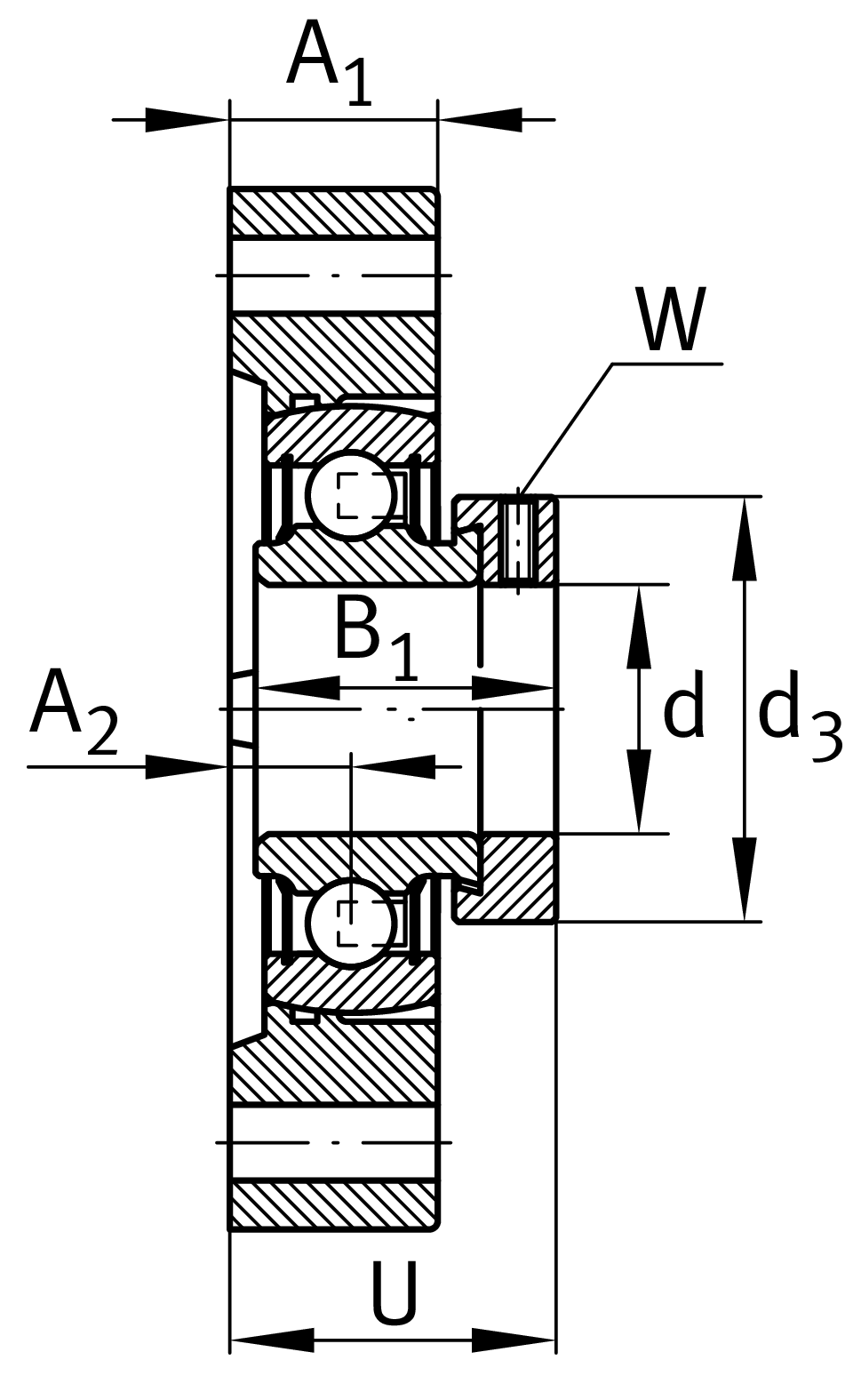

Dimensions
A1
22 mm
Thickness of flange
A2
12.4 mm
Distance raceway
B1
39 mm
Locking collar total width
d3
55 mm
Outside diameter eccentric locking collar

Additional information
1
Number of housings
LCTE07
Housing
RAE35-XL-NPP-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
