G1108-XL-KRR-B-L402/70-OSE
Radial insert ball bearing G1108-XL-KRR-B-L402/70-OSE
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
38.1 mm
Bore diameter
d
38.1 mm
Bore diameter, inch
DSP
80 mm
Outside diameter
B
42.9 mm
Width
Cur
1,030 N
Fatigue load limit, radial
Cr
34,500 N
Basic dynamic load rating, radial
C0r
19,800 N
Basic static load rating, radial
≈m
0.57 kg
Weight

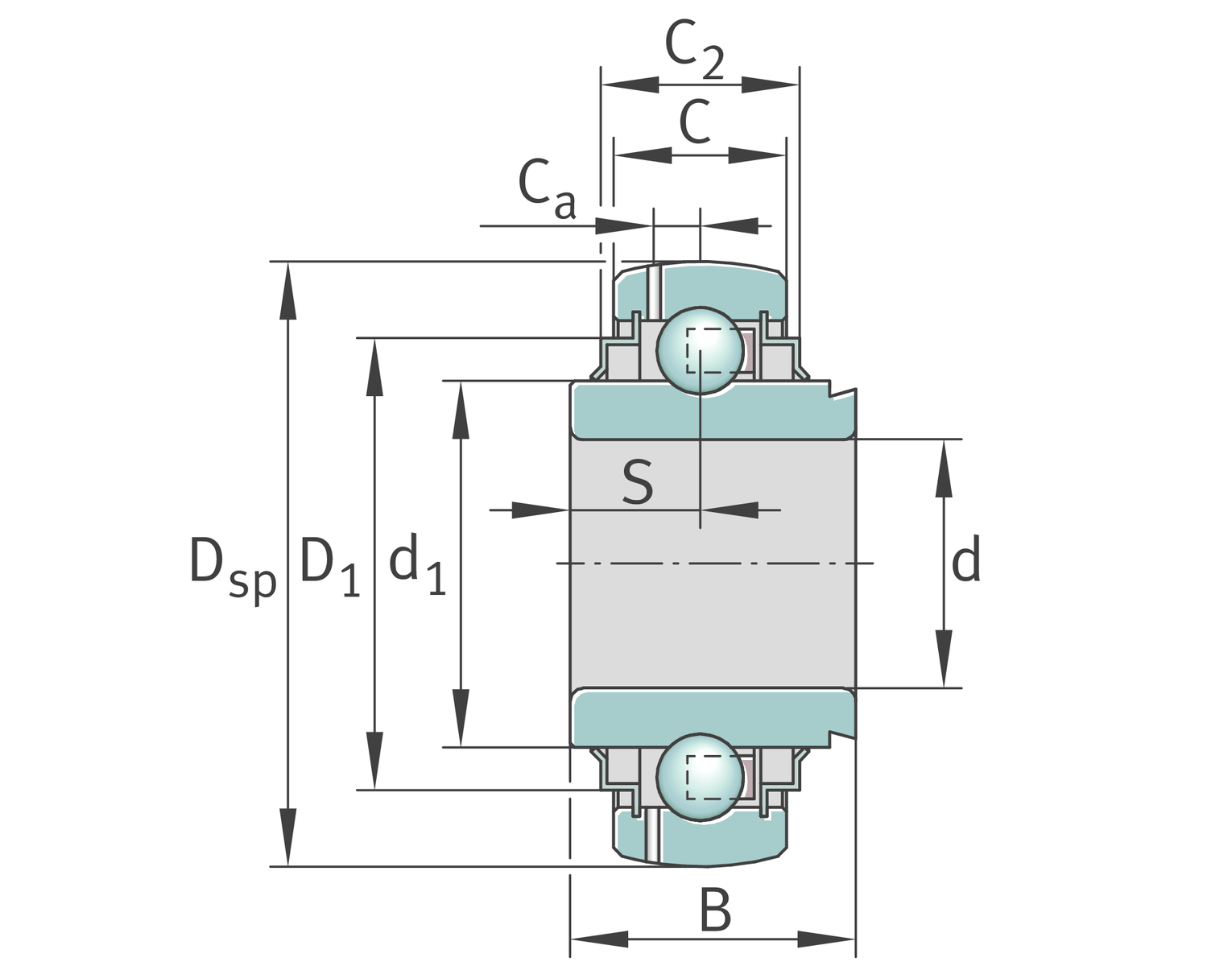

Dimensions
C
21 mm
Width, outer ring
C2
22.5 mm
Sealing total width
S
21.4 mm
Distance raceway
d1
52.3 mm
Rib diameter inner ring
D1
68.3 mm
Outside diameter seal
Ca
6.5 mm
Distance to lubrication hole

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Calculation factors
f0
14
Calculation factor

Your current product variant
SealingKRRLip seals on both sides
Shape of outer surfaceB
LubricantL402/70L402/70
Without locking deviceOSEBearing without locking element
