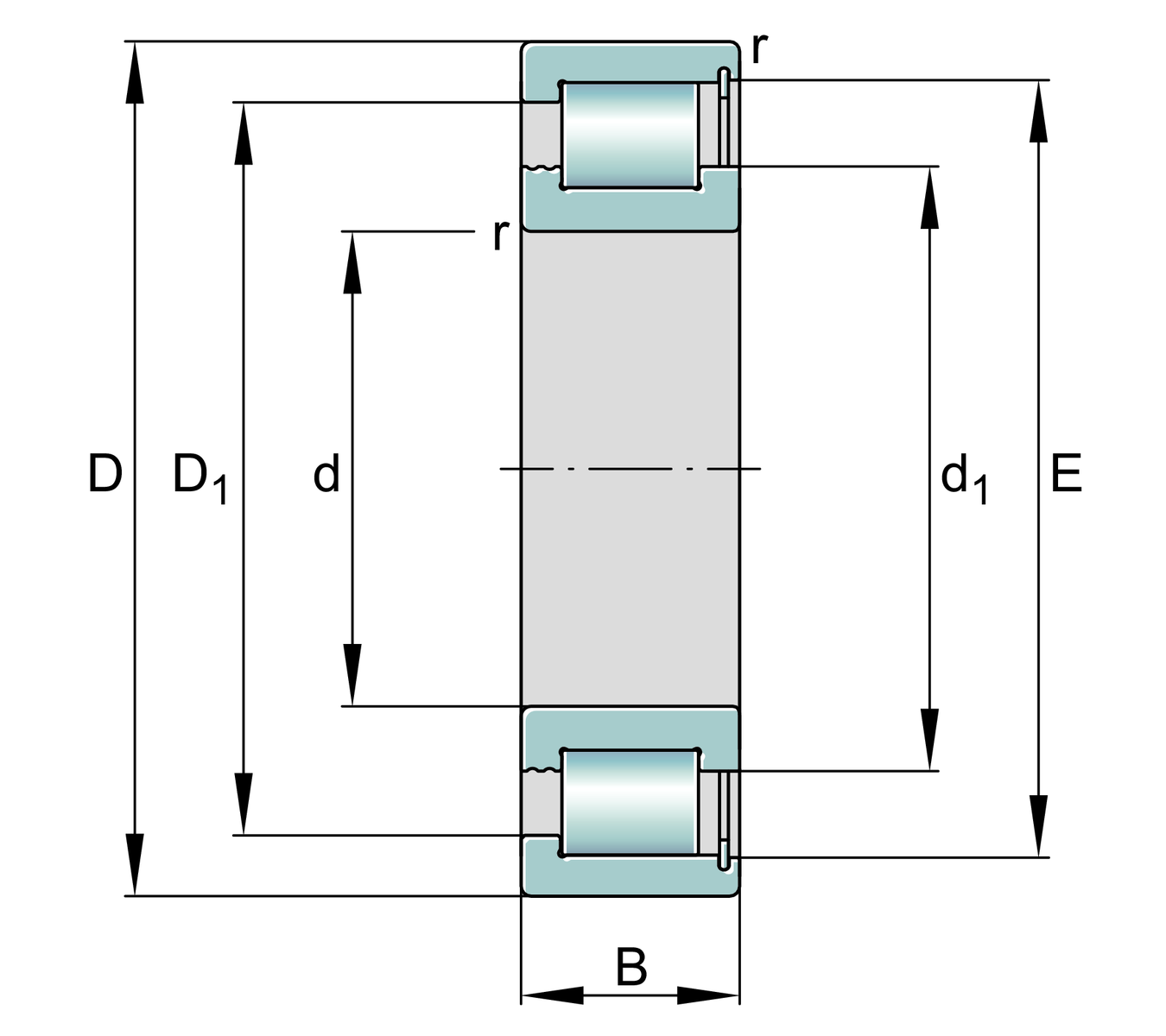

Main Dimensions & Performance Data
| d | 35 mm | Bore diameter |
| D | 62 mm | Outside diameter |
| B | 20 mm | Width |
| Cr | 55,000 N | Basic dynamic load rating, radial |
| C0r | 53,000 N | Basic static load rating, radial |
| Cur | 9,600 N | Fatigue load limit, radial |
| nG | 8,200 1/min | Limiting speed |
| nϑr | 4,950 1/min | Reference speed |
| ≈m | 245.45 g | Weight |

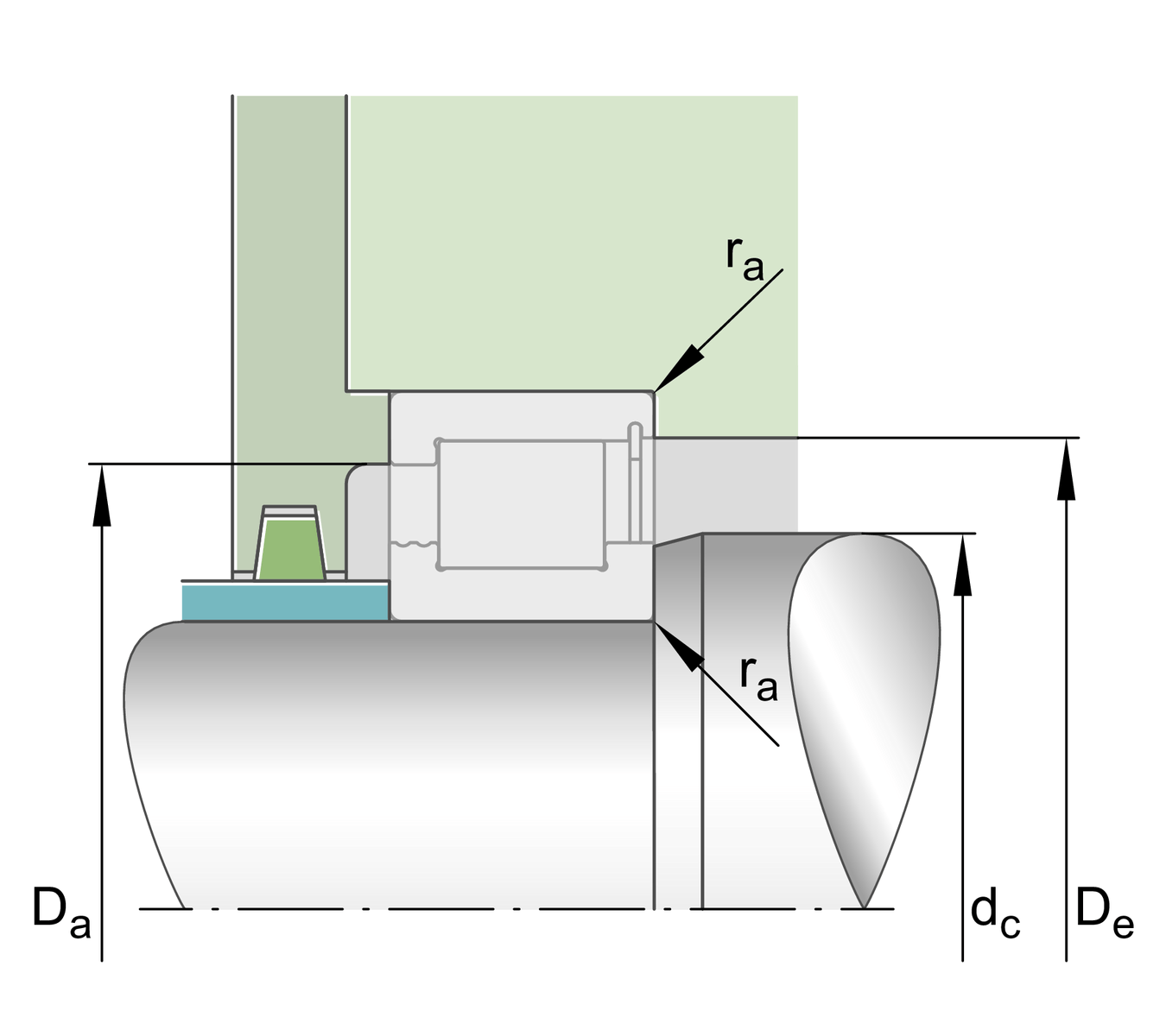

Mounting dimensions
| da min | 44.9 mm | Minimum diameter shaft shoulder |
| dc min | 44.5 mm | Minimum shaft shoulder |
| Da max | 51 mm | Maximum diameter of housing shoulder |
| De min | 55.5 mm | Minimum diameter of housing shoulder |
| ra max | 1 mm | Maximum recess radius |
| E | 55.5 mm | Raceway diameter outer ring |
Dimensions
| rmin | 1 mm | Minimum chamfer dimension |

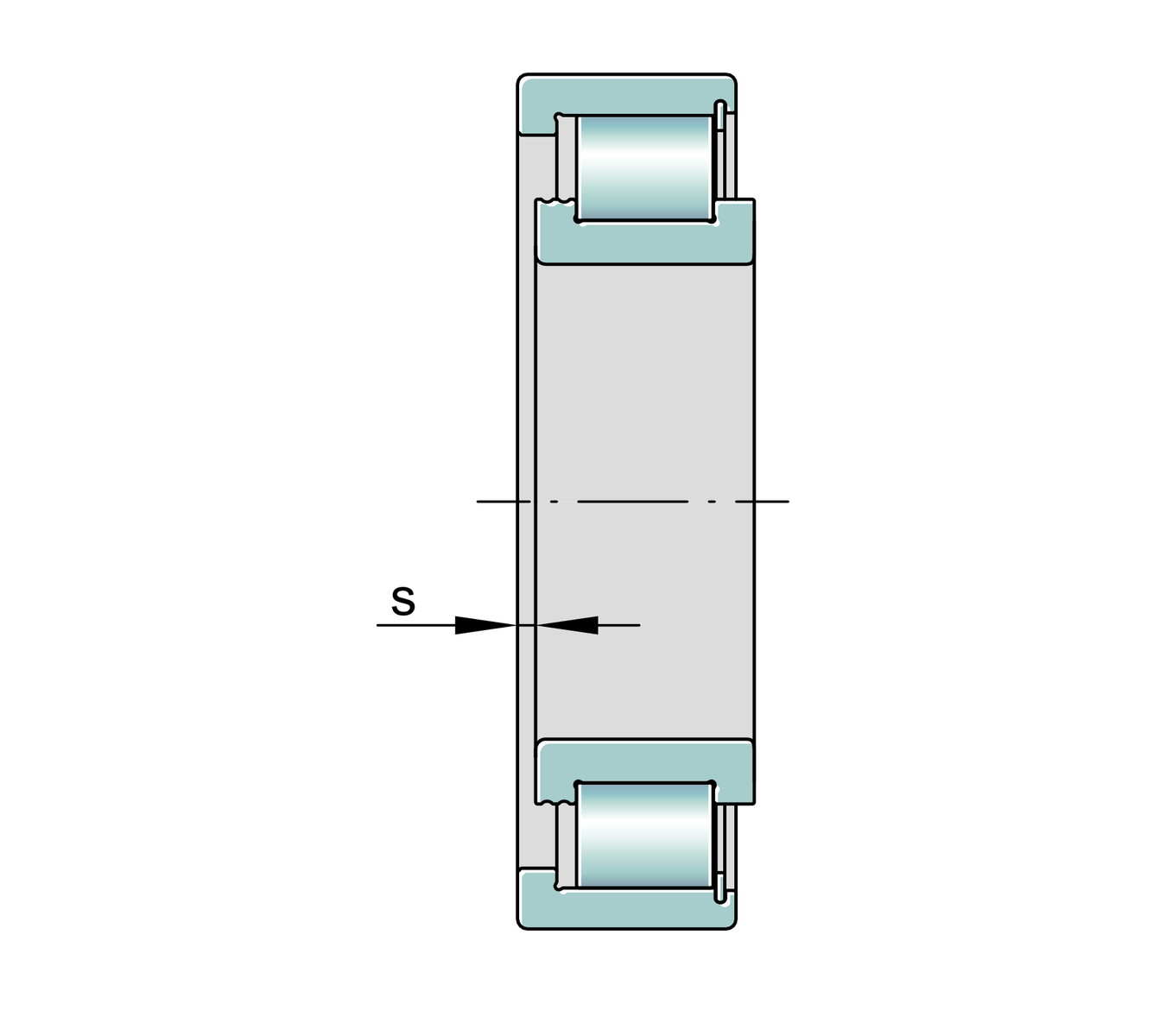

| s | 2 mm | Axial displacement |
| d1 | 44.9 mm | Maximum rib diameter inner ring |
| D1 min | 51.3 mm | Minimum rib diameter outer ring |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Design | A | Internal Variant A |
| Radial internal clearance | C3 (Group 3) | Internal clearance larger than CN |
| Tolerance class | PN | Normal (PN) |
| Number of rolling element rows | 1 | Single-row design |
