Main Dimensions & Performance Data
| Fw | 35 mm | Under roller diameter |
| D | 47 mm | Outside diameter |
| B | 17 mm | Width |
| Cr | 23,900 N | Basic dynamic load rating, radial |
| C0r | 28,500 N | Basic static load rating, radial |
| Cur | 5,500 N | Fatigue load limit, radial |
| nG | 7,500 1/min | Limiting speed |
| nG Grease | 7,500 1/min | Limiting speed for grease lubrication |
| ≈m | 71.5 g | Weight |

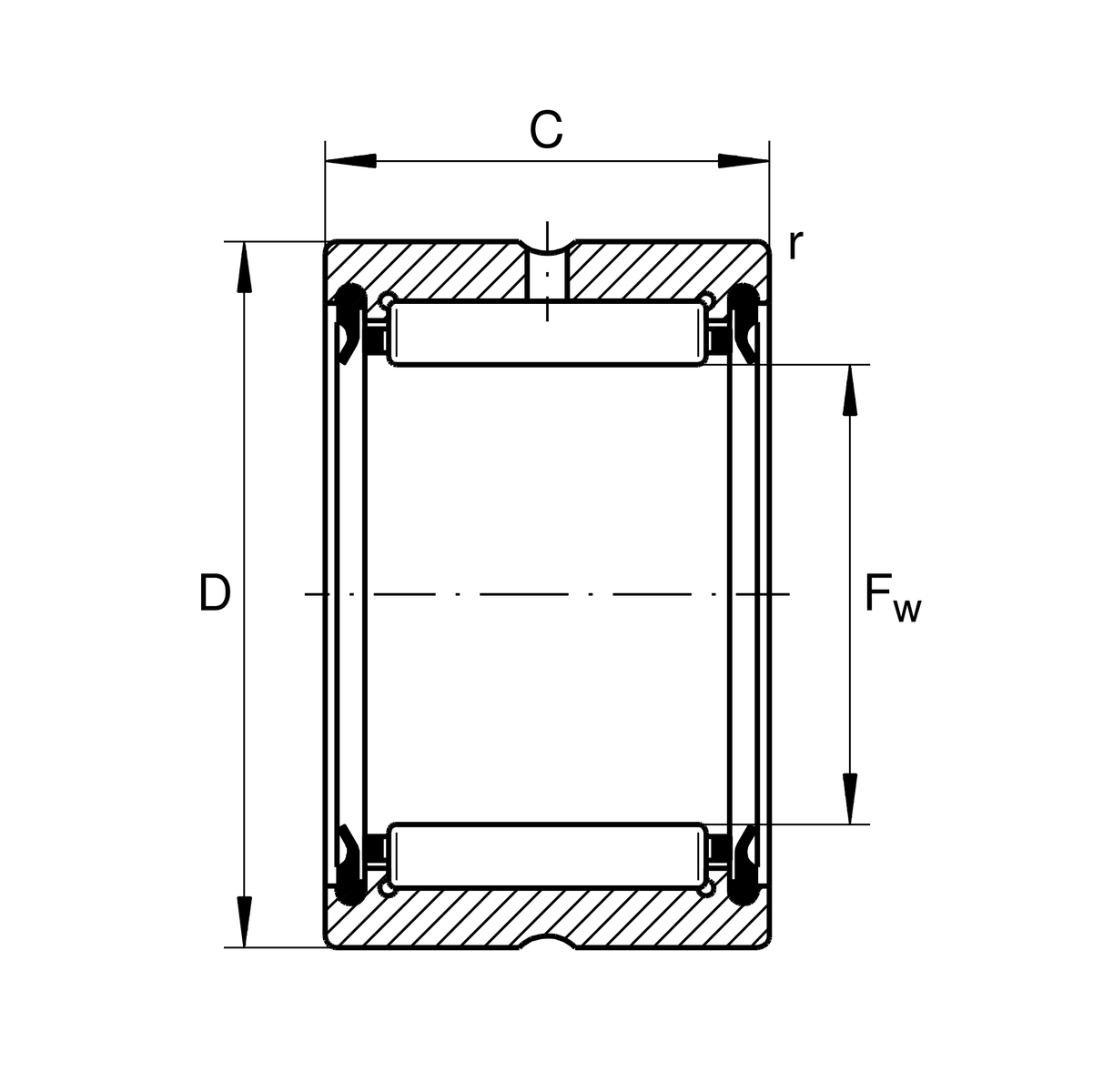

Dimensions
| rmin | 0.3 mm | Minimum chamfer dimension |
| C | 17 mm | Width, outer ring |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 100 °C | Operating temperature max. |
Your current product variant
| Cage | Standard | Standard |
| Lubrication hole | with | with |
| Coating | Without | |
| Sealing | 2RSR | Contact seals on both sides |
| Special features | Without | |
| Number of rolling element rows | 1 | Single-row design |
