FLCTEY35-XL
Flanged housing unit FLCTEY35-XL
Thêm vào yêu cầu báo giá

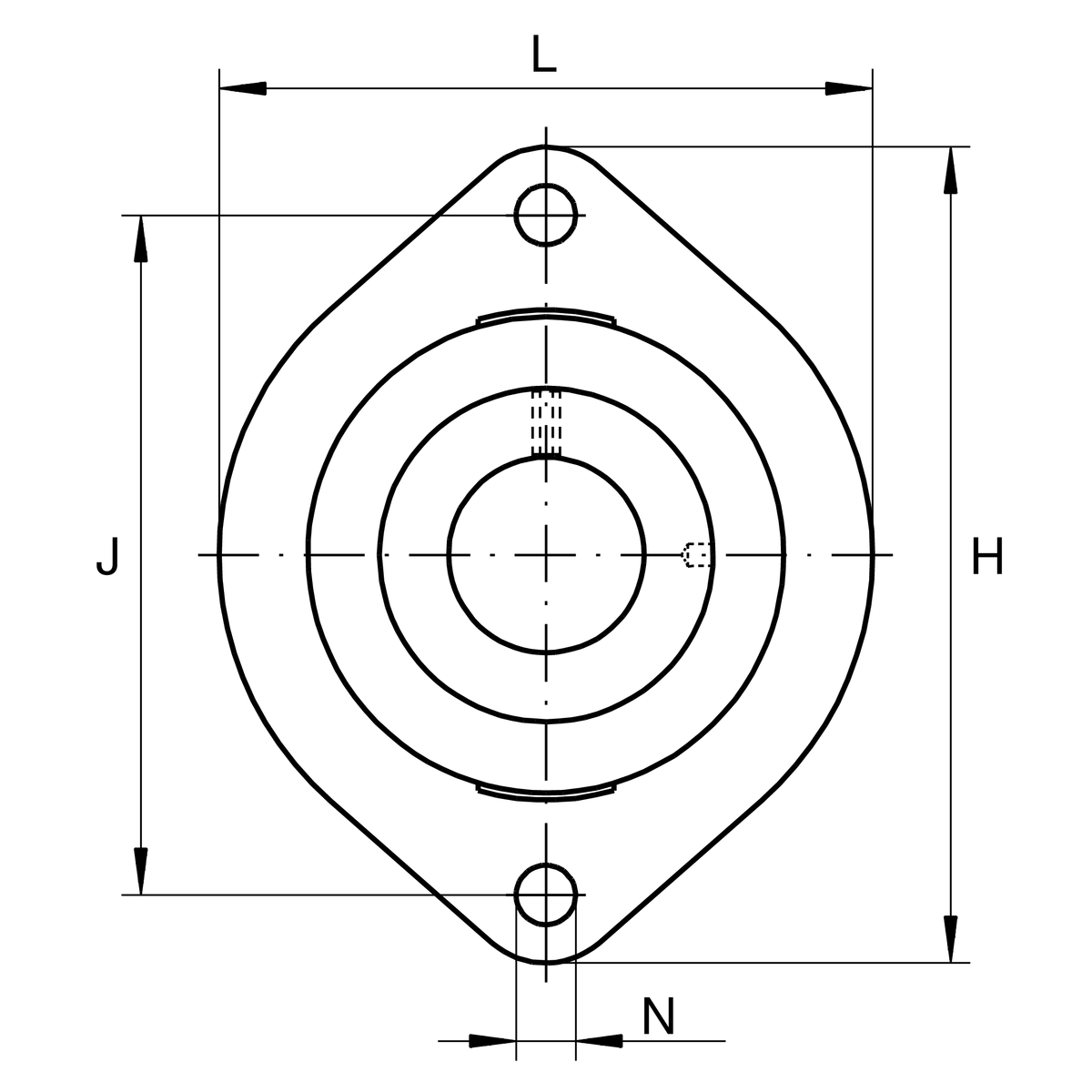

Main Dimensions & Performance Data
d
35 mm
Bore diameter
L
94 mm
Flange width
H
126 mm
Height flange
U
37.9 mm
Total height unit
Cr
27,500 N
Basic dynamic load rating, radial
C0r
15,300 N
Basic static load rating, radial
Cur
800 N
Fatigue load limit, radial
≈m
0.91 kg
Weight

Mounting dimensions
J
100 mm
Distance fixing bore
J
100 mm
Pitch circle diameter (holes)
N
11.5 mm
Fixing bore
n
2
Number of screwing holes

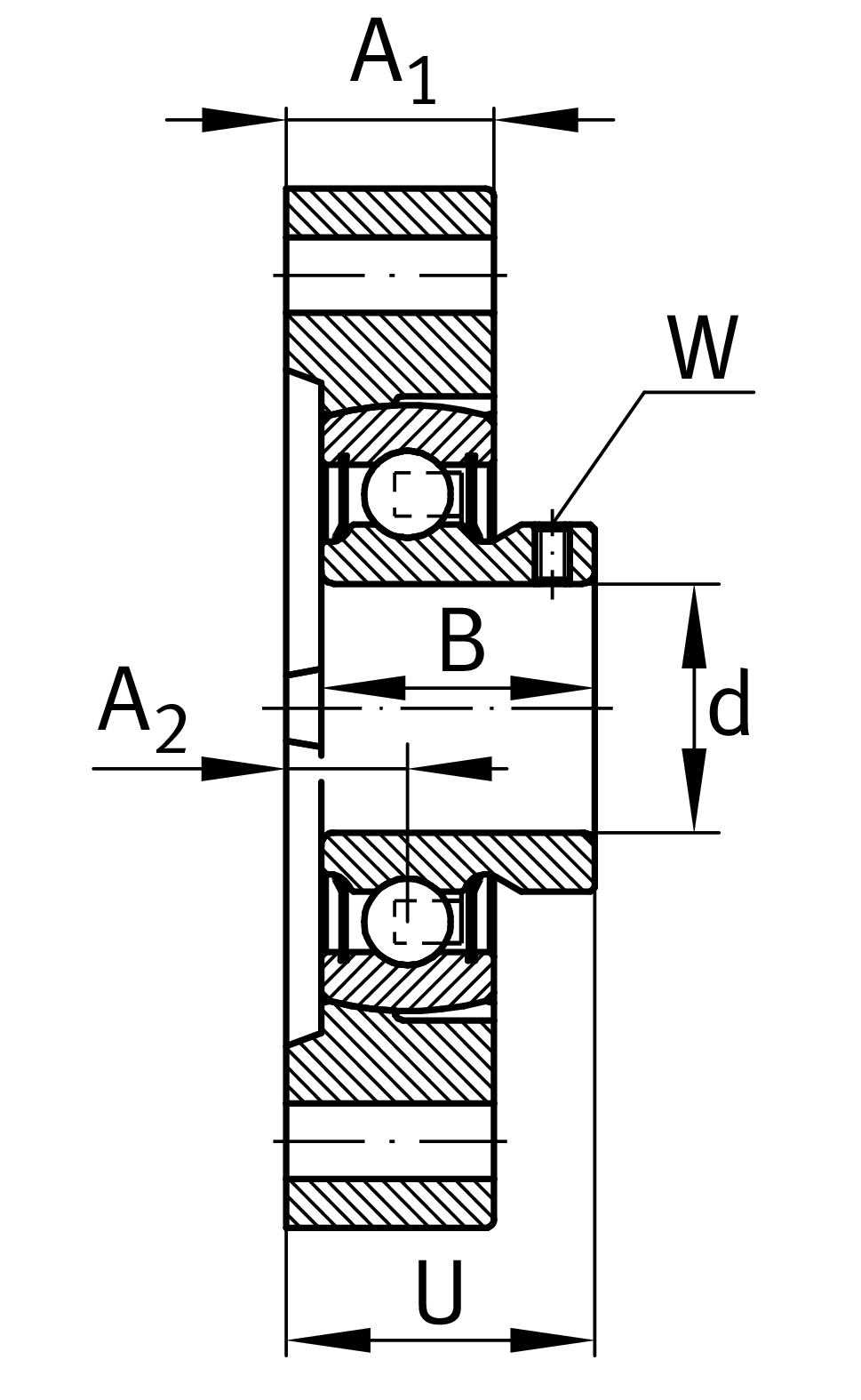

Dimensions
A1
22 mm
Thickness of flange
A2
12.4 mm
Distance raceway
d3
37.5 mm
Outside diameter eccentric locking collar

Additional information
1
Number of housings
LCTE07
Housing
AY35-XL-NPP-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
