Main Dimensions & Performance Data

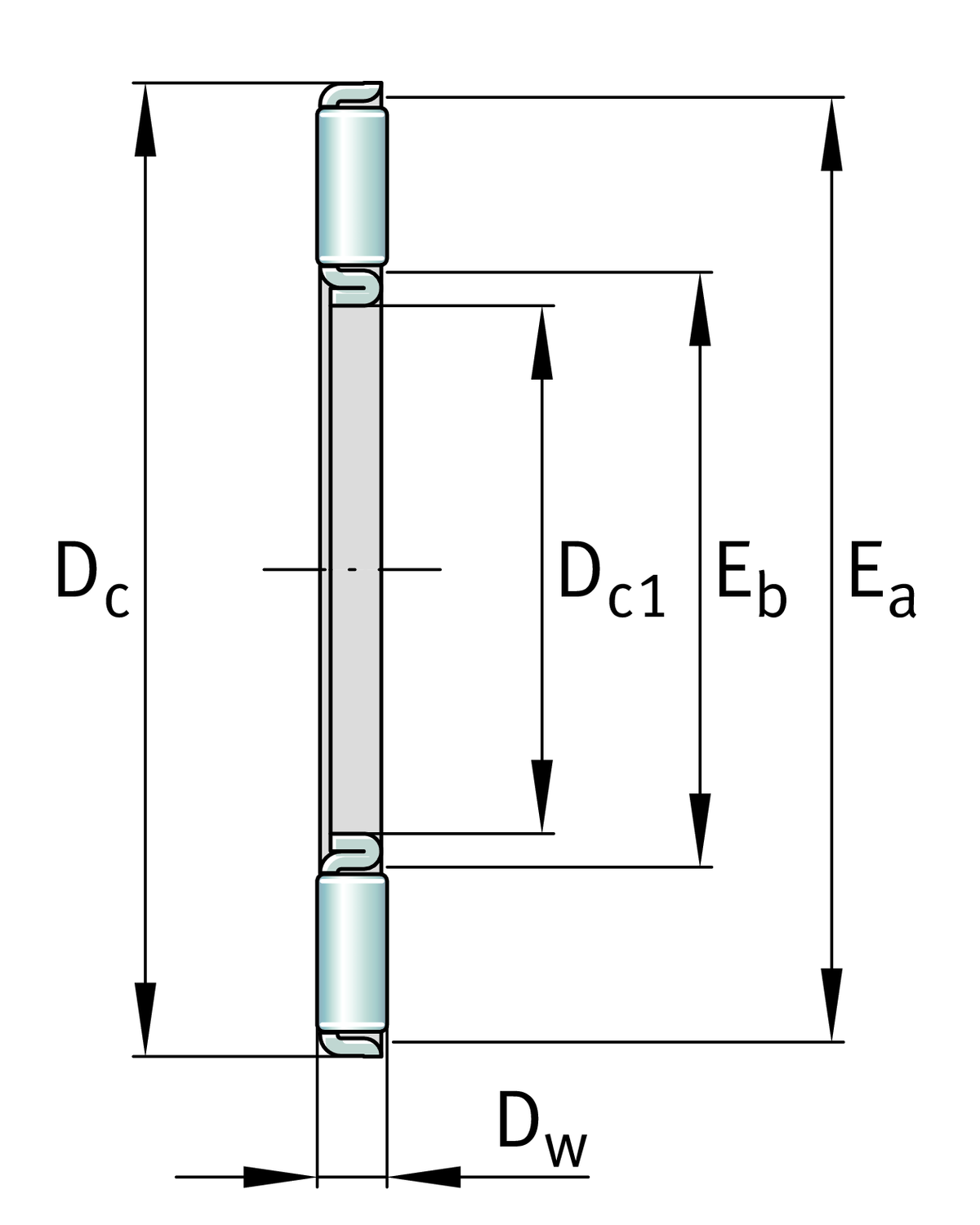

| Dc1 | 140 mm | Bore diameter cage |
| Dc | 180 mm | Outside diameter |
| Dw | 5 mm | Rolling element diameter |

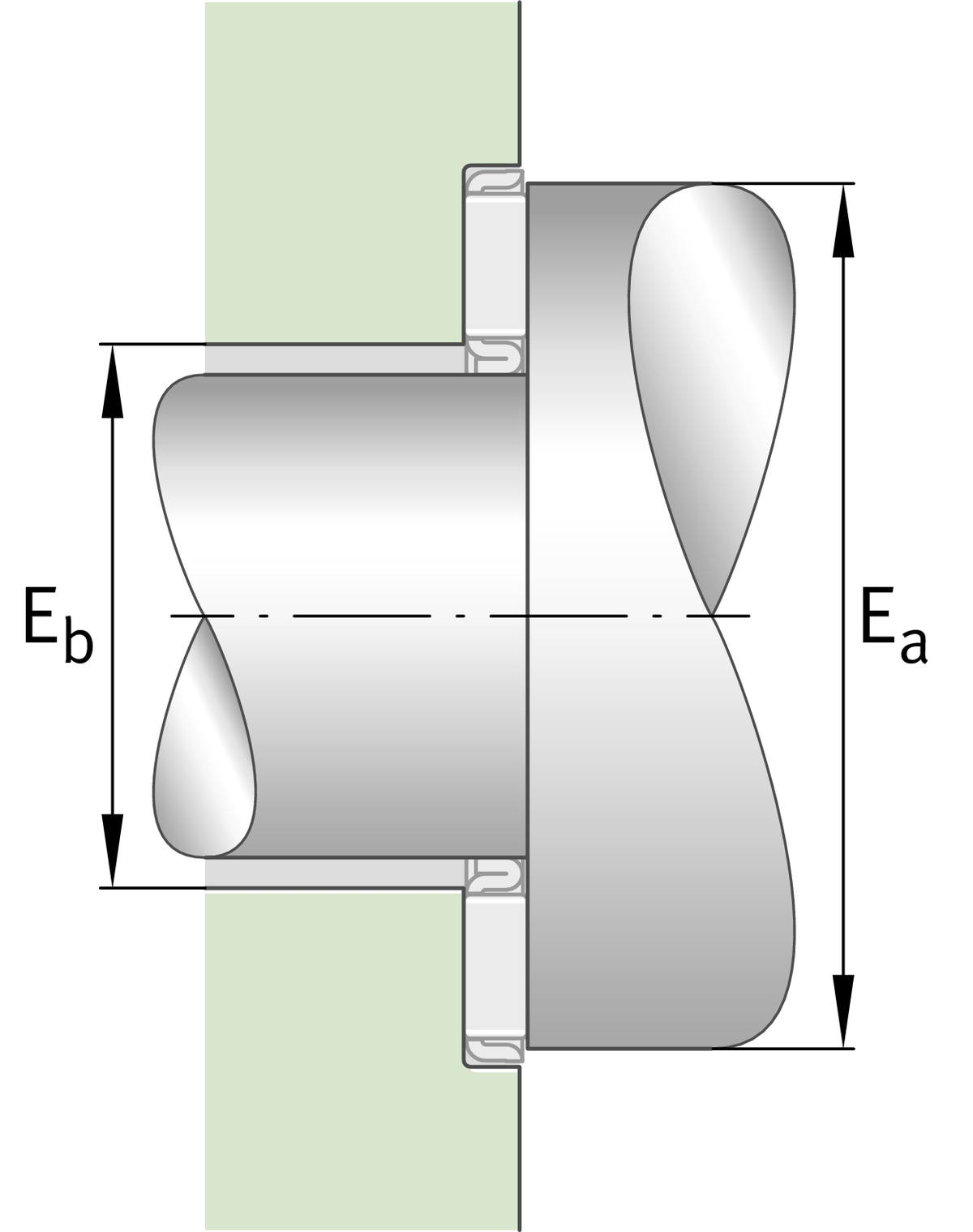

| Ea | 177 mm | Raceway dimension |
| Eb | 146 mm | Raceway dimension |
| ca | 139,000 N | Basic dynamic load rating, axial |
| c0a | 900,000 N | Basic static load rating, axial |
| cua | 81,000 N | Fatigue load limit, axial |
| nG | 1,800 1/min | Limiting speed |
| nϑr | 710 1/min | Reference speed |
| ≈m | 200 g | Weight |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
AS140180 | Axial bearing washer |
