Plummer block housing unit RSHEY30-TV-VA-FD

Thêm vào yêu cầu báo giá

Main Dimensions & Performance Data

d	30 mm	Bore diameter
L	101 mm	Length
H₂	84 mm	Height
≈m	0.52 kg	Weight

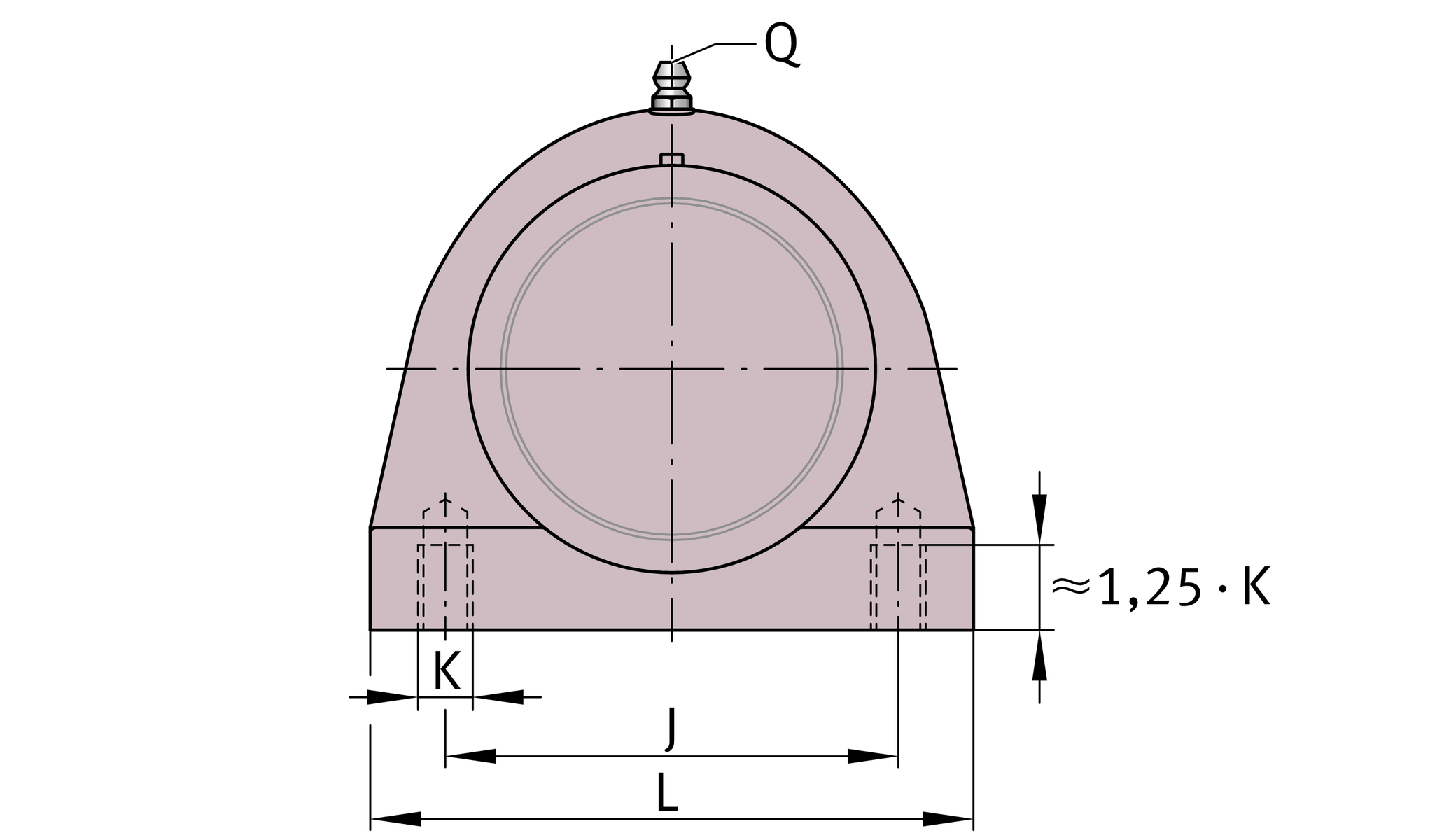

Mounting dimensions

J	76.2 mm	Distance fixing bore
K	M10	Thread fixing bore
W	3 mm	Width of flats

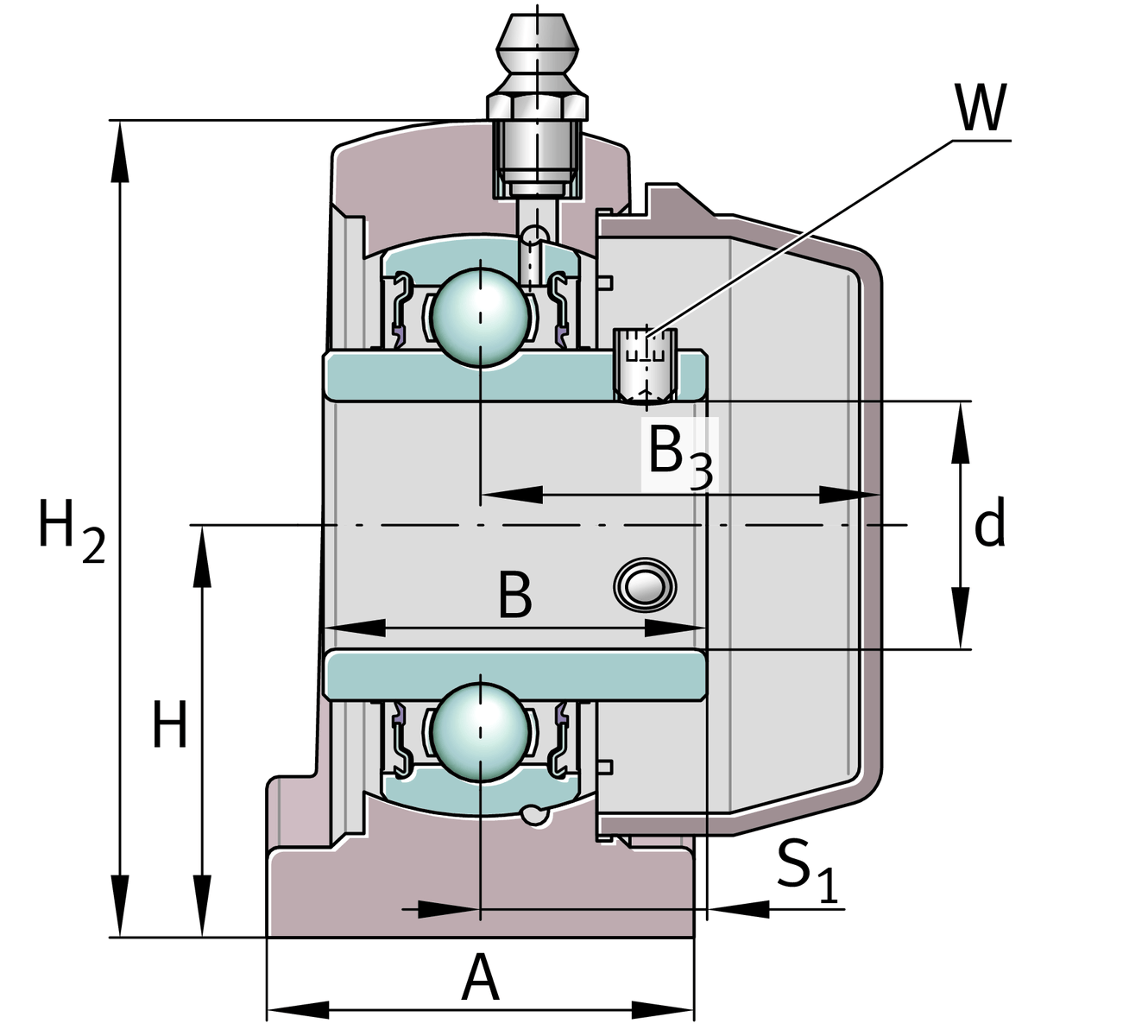

Dimensions

H	42.9 mm	Distance shaft axis
A	42.5 mm	Width (base)
B	38.1 mm	Width
B₃	41.25 mm	Distance housing centre to cap end
S₁	22.2 mm	Distance raceway to locking collar
Q	1/4"-28 UNF	Connection thread for lubrication

Additional information

	GEH.SHE06-TV-WHT	Housing
	GYE30-KRR-B-FA107-VA-FD	Bearing designation
	KASK06-S-G-WHT	End cap
	KASK06-S-R-NBR-WHT	Open protecting cap

Temperature range

T_min	-30 °C	Operating temperature min.
T_max	100 °C	Operating temperature max.

Your current product variant

Special material	TV	Plastic housing
Corrosion resistant bearing	VA	Corrosion-resistant VA design
Material	TV-FD	Plastic for food industry
