HF3020
Drawn cup roller clutch HF3020
Thêm vào yêu cầu báo giá

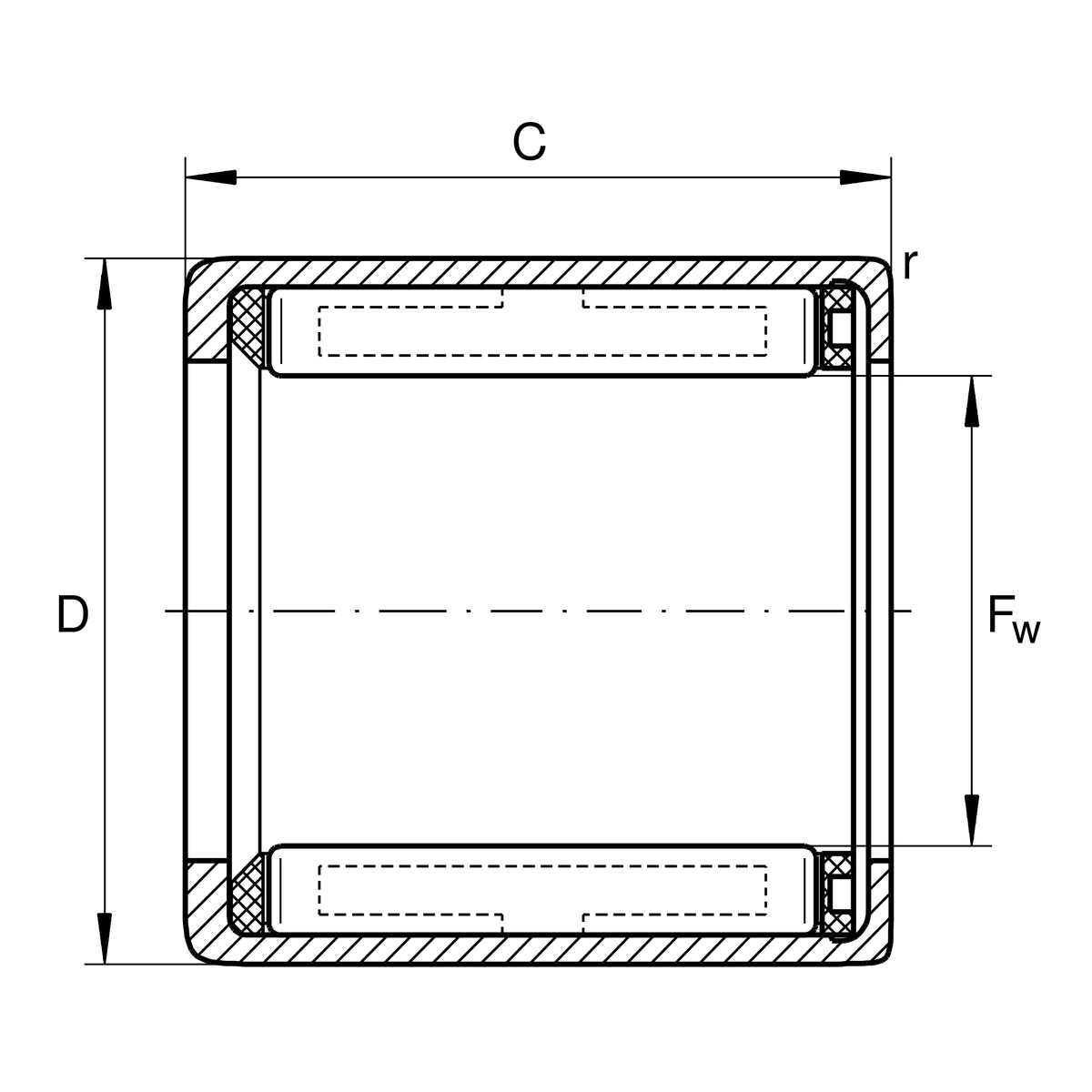

Main Dimensions & Performance Data
Fw
30 mm
Under roller diameter
D
37 mm
Outside diameter
C
20 mm
Width, outer ring
rmin
0.3 mm
Minimum chamfer dimension
Md per
90 Nm
Permissible torque
nGW
4,500 1/min
Limiting speed for rotating shaft
nGA
4,500 1/min
Limiting speed for rotating outer ring
≈m
35.3 g
Weight

Temperature range
Tmin
-10 °C
Operating temperature min.
Tmax
70 °C
Operating temperature max.

Additional information
HK3012
Drawn cup needle roller bearings for radial bearing arrangement

Your current product variant
LubricantL450Grease (L450/standart specific - static)
CoatingWithout
Outer shapeWithoutSmooth outside surface
Spring designStandardSteel pressure springs
