Main Dimensions & Performance Data
| d | 30 mm | Bore diameter |
| DSP | 62 mm | Outside diameter |
| B | 36.5 mm | Width |
| Cur | 530 N | Fatigue load limit, radial |
| B1 | 48.5 mm | Locking collar total width |
| Cr | 20,700 N | Basic dynamic load rating, radial |
| C0r | 11,300 N | Basic static load rating, radial |
| ≈m | 0.41 kg | Weight |

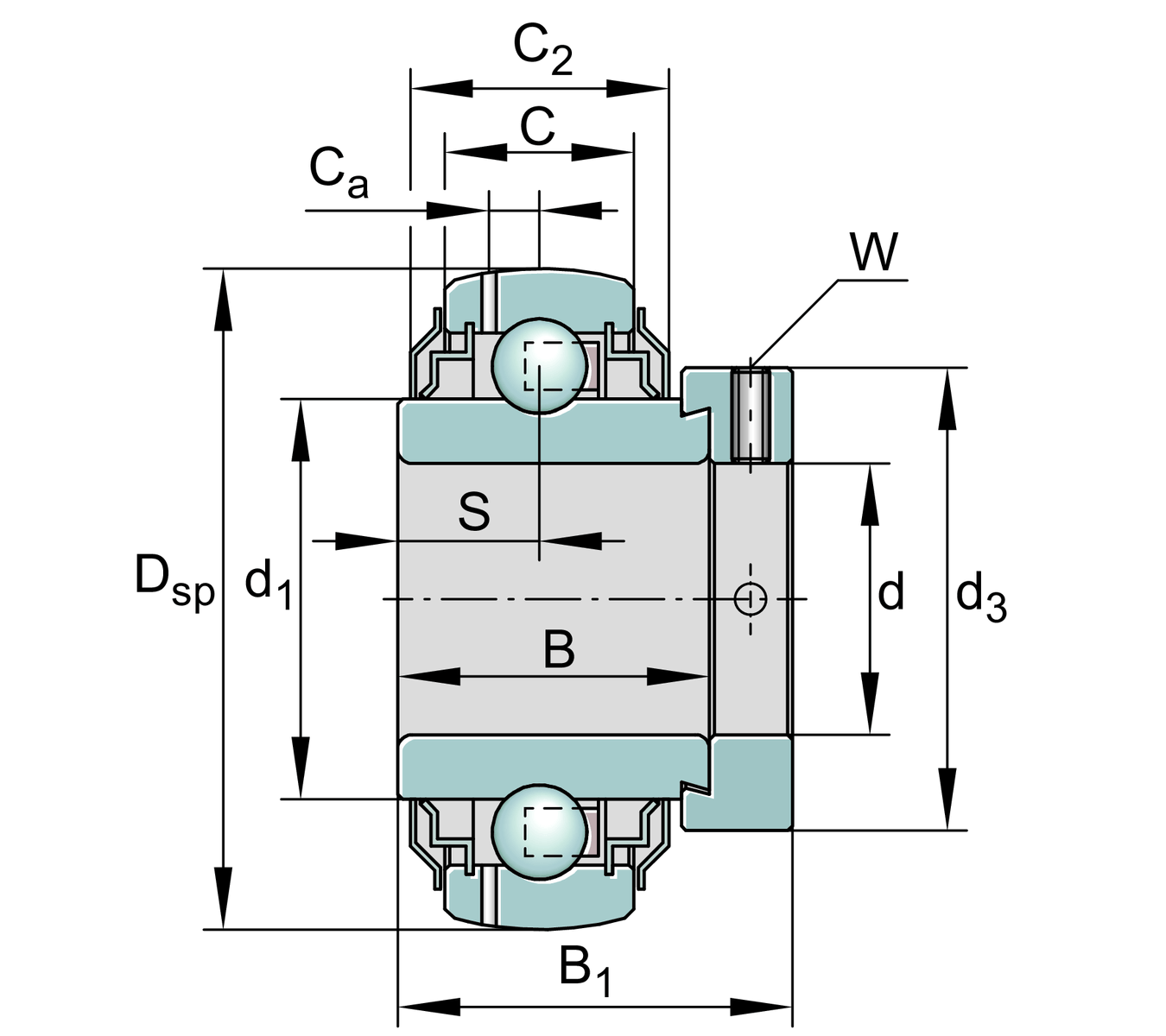

Dimensions
| C | 18 mm | Width, outer ring |
| C2 | 27.2 mm | Sealing total width |
| S | 18.3 mm | Distance raceway |
| d1 | 40.2 mm | Rib diameter inner ring |
| Ca | 4.7 mm | Distance to lubrication hole |
| d3 | 44 mm | Outside diameter locking collar/locknut |
| W | 4 mm | Width of flats |
Calculation factors
| f0 | 13.8 | Calculation factor |
Your current product variant
| Sealing | KRR | Lip seals on both sides |
| Shape of outer surface | B | |
| Flinger shields | 2C | Flinger shield on both sides |
