RTUE120-XL
Take-up housing unit RTUE120-XL
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
120 mm
Bore diameter
H
285 mm
Height
L
345 mm
Length total
B1
81 mm
Locking collar total width
≈m
23.72 kg
Weight

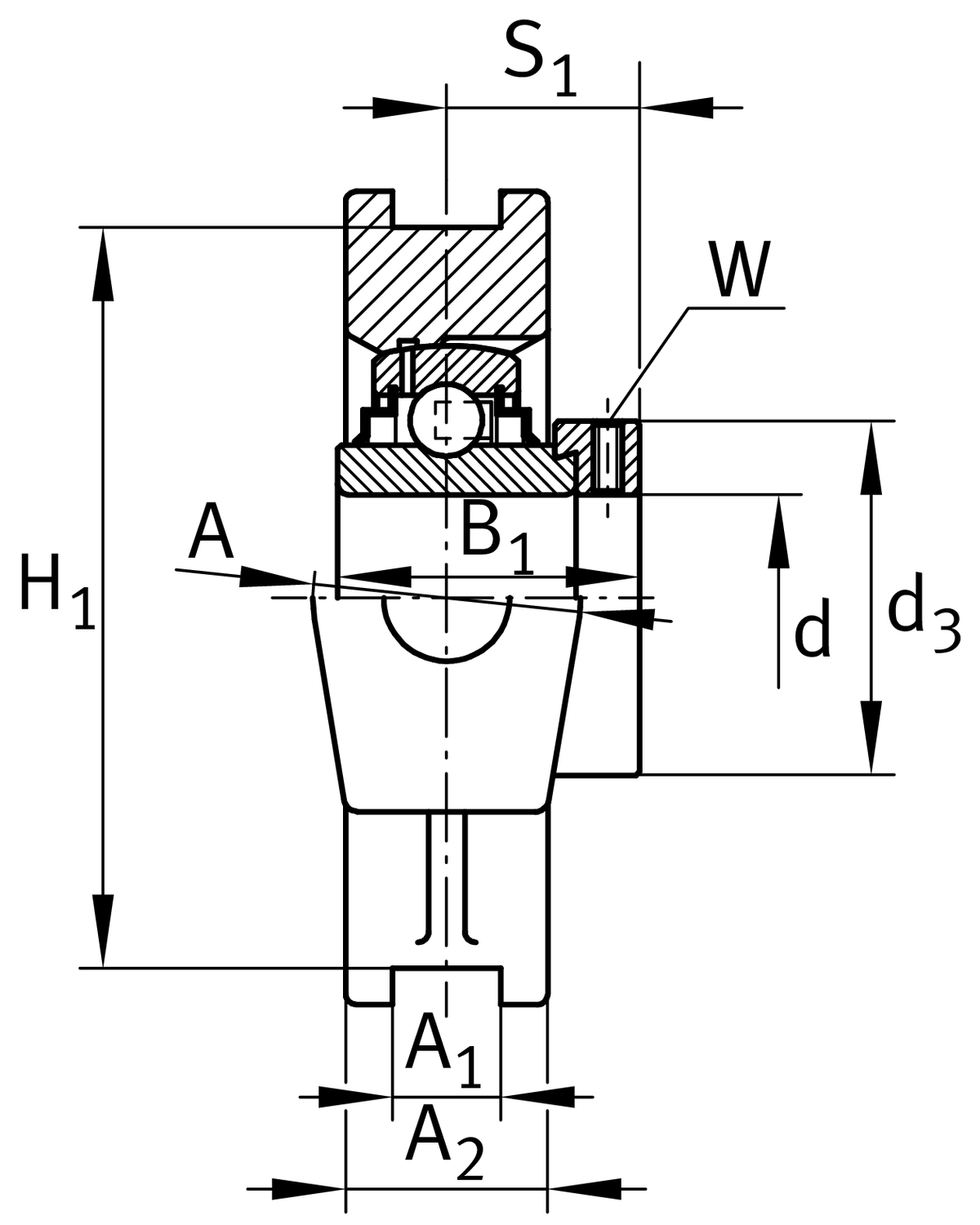

Mounting dimensions
A1
32 mm
Width guidance groove
H13
Width guidance groove clearance
H1
255 mm
Distance guidance grooves
0.25 mm
Upper distance guidance groove tolerance
-0.25 mm
Lower distance guidance groove tolerance
N
55 mm
Fixing bore

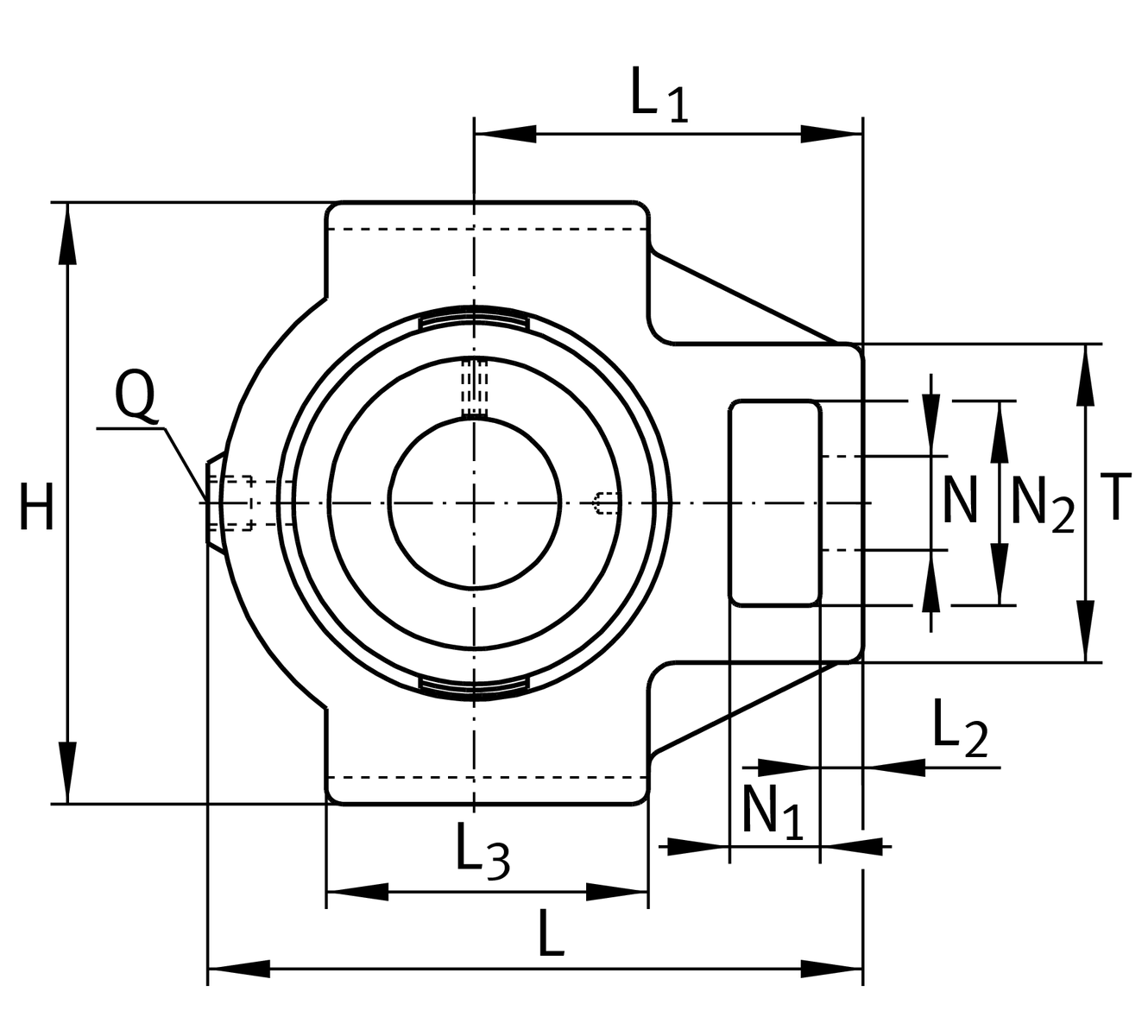

Dimensions
L1
210 mm
Distance shaft axis
L2
35 mm
Length fixed link
L3
190 mm
Length guidance groove
A
100 mm
Width housing fixing side
N1
45 mm
Width recess
N2
95 mm
Height recess
S1
52.5 mm
Distance of raceway to locking collar
T
150 mm
Height housing fixing side
Q
M6
Connection thread for lubrication
A2
70 mm
Width housing

Additional information
TUE24
Housing
GE120-XL-KRR-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
Thêm vào yêu cầu báo giá
