RME120-XL
Flanged housing unit RME120-XL
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
120 mm
Bore diameter
H
350 mm
Height flange
B1
81 mm
Locking collar total width
U
56.5 mm
Total height unit
Cr
165,000 N
Basic dynamic load rating, radial
C0r
131,000 N
Basic static load rating, radial
Cur
4,800 N
Fatigue load limit, radial
≈m
17.74 kg
Weight

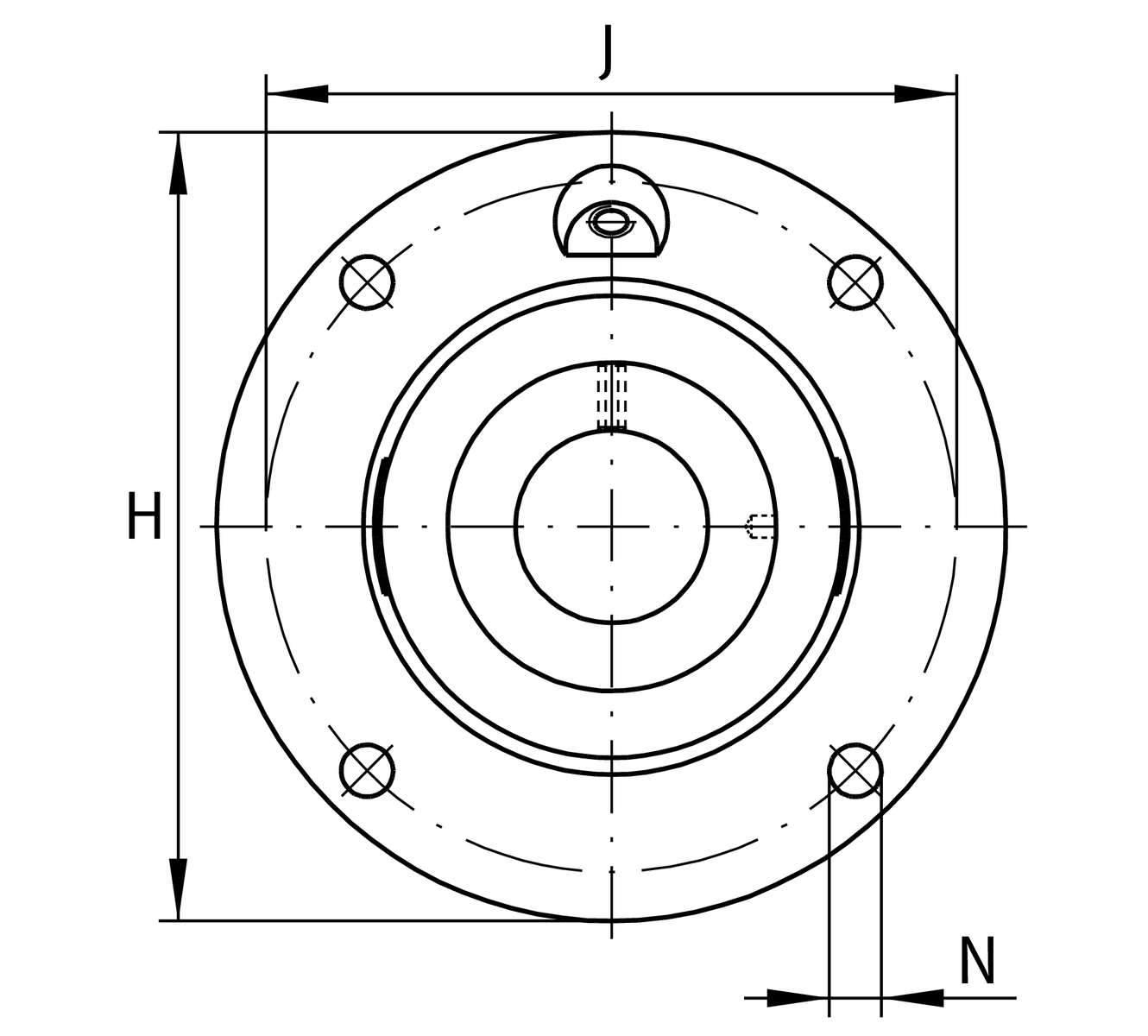

Mounting dimensions
J
295 mm
Pitch circle diameter (holes)
N
27 mm
Fixing bore
Z
250 mm
Diameter spigot
h8
Diameter spigot clearance
n
4
Number of screwing holes

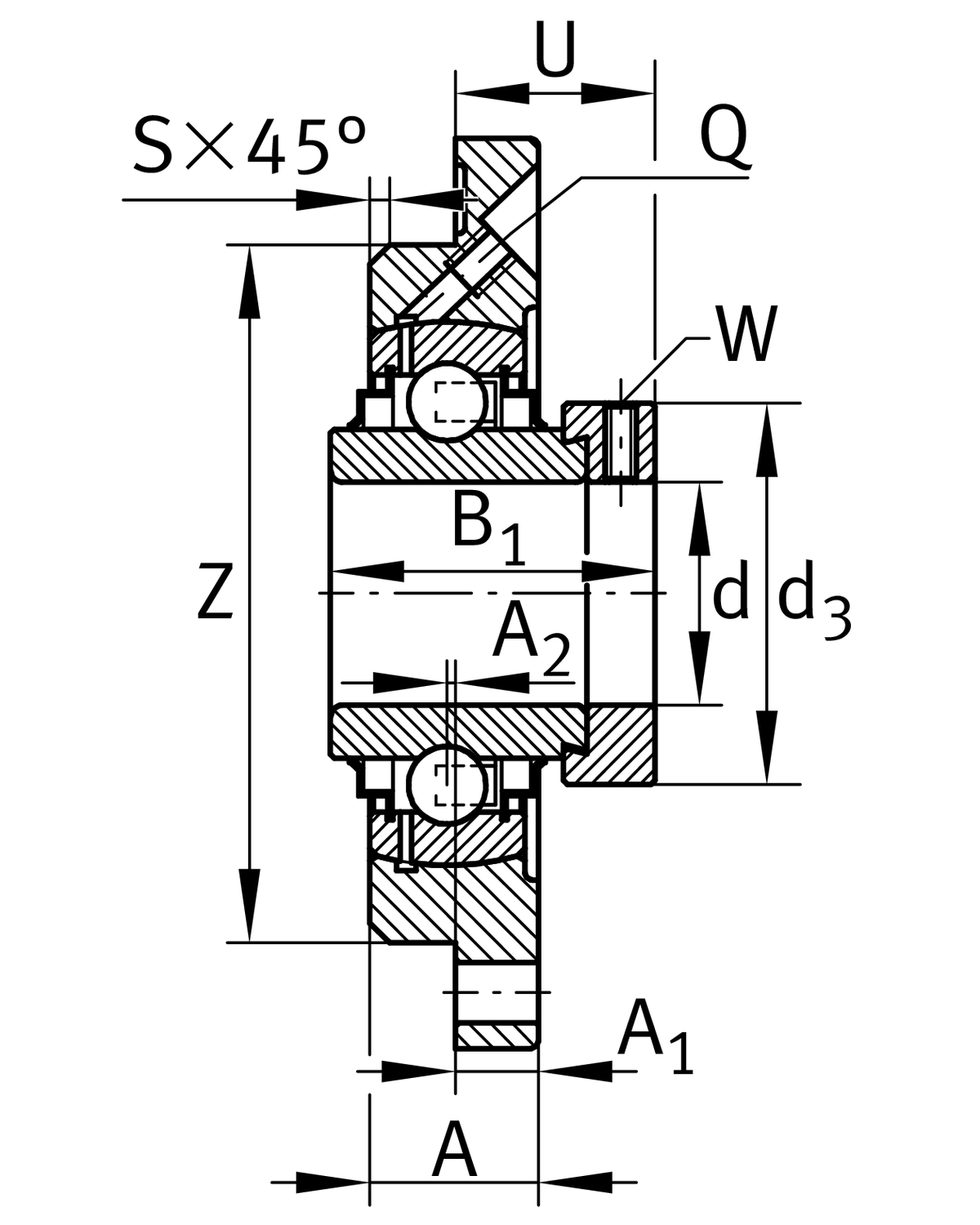

Dimensions
A
40 mm
Height housing
A1
24 mm
Thickness of flange
A2
-4 mm
Distance raceway
S
3 mm
Chamfer width
Q
M6
Connection thread for lubrication

Additional information
1
Number of housings
GG.ME24
Housing
GE120-XL-KRR-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
