Main Dimensions & Performance Data
| d | 30 mm | Bore diameter |
| D | 65.1 mm | Outside diameter |
| C | 25.4 mm | Width, outer ring |
| B1 | 26.5 mm | Locking collar total width |
| Cr | 13,200 N | Basic dynamic load rating, radial |
| C0r | 8,300 N | Basic static load rating, radial |
| Cur | 430 N | Fatigue load limit, radial |
1,400 N | Load carrying capacity (rubber interliner) | |
| ≈m | 0.219 kg | Weight |

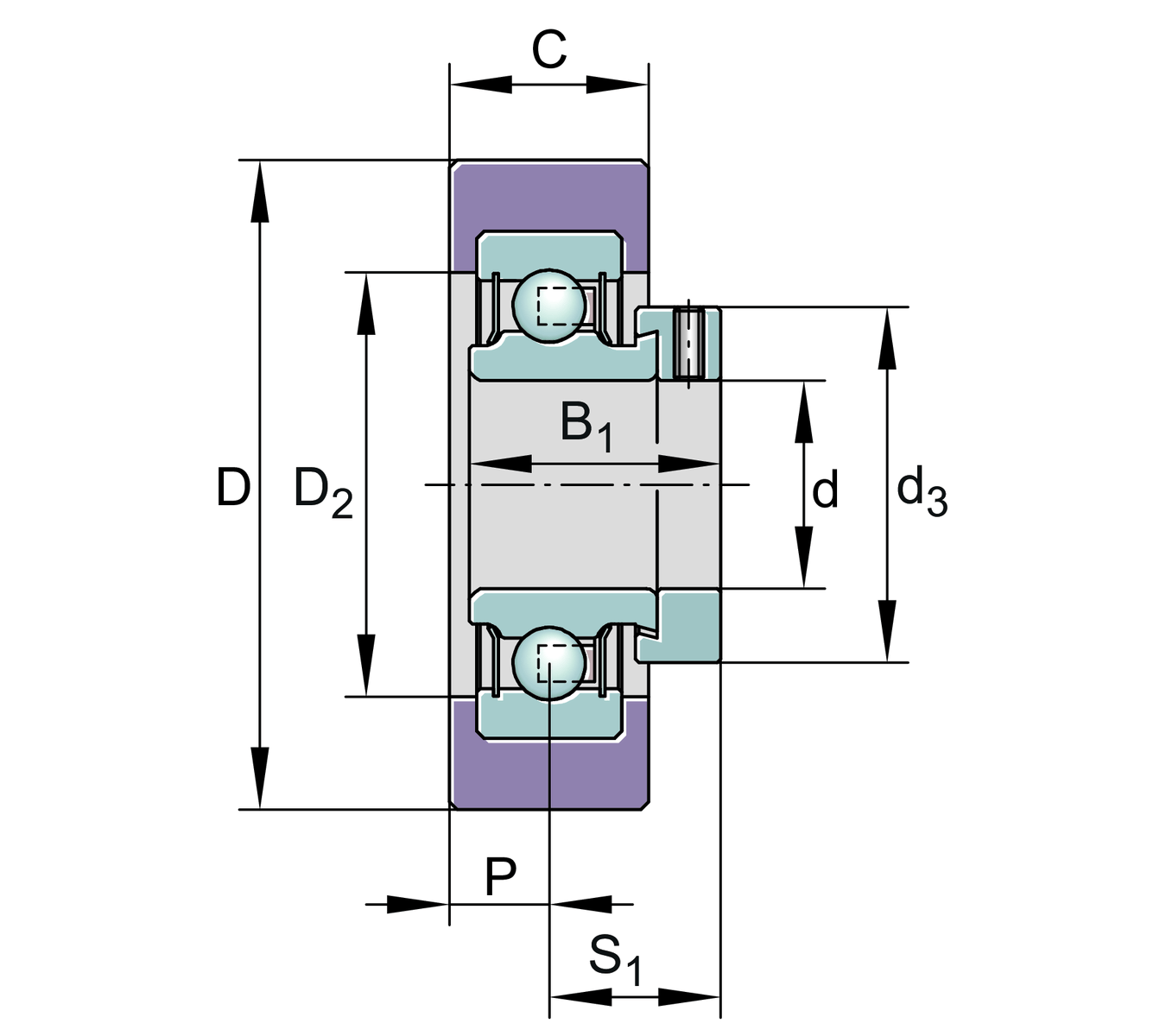

Dimensions
| S1 | 20 mm | Distance raceway to locking collar |
| D2 | 47.6 mm | Flange diameter rubber interliner |
| d3 | 42.5 mm | Outside diameter locking collar/locknut |
| P | 15 mm | Distance raceway of rubber interliner to face side |
Calculation factors
| f0 | 14.8 | Calculation factor |
Additional information
RALE30-XL-NPP-FA106 | Bearing designation | |
| Shore A | 70 ° | Hardness rubber interliner |
Your current product variant
| Manufacturing instruction | FA106 | Bearing subjected to special noise testing |
