RCJY30-XL-N
Flanged housing unit RCJY30-XL-N
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
30 mm
Bore diameter
L
108 mm
Flange width
U
42.2 mm
Total height unit
Cr
20,700 N
Basic dynamic load rating, radial
C0r
11,300 N
Basic static load rating, radial
Cur
480 N
Fatigue load limit, radial
≈m
1.1 kg
Weight

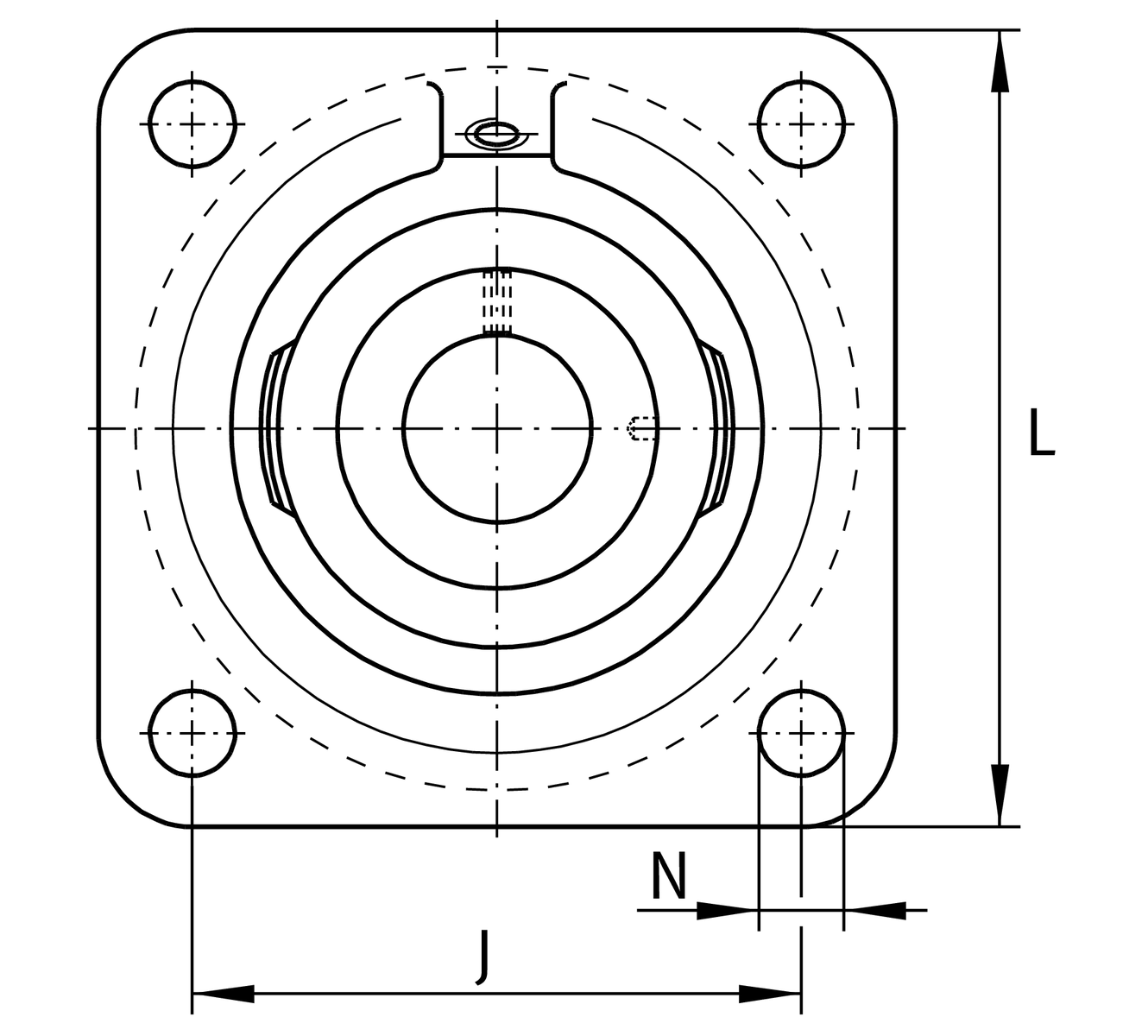

Mounting dimensions
J
82.5 mm
Distance fixing bore
N
11.5 mm
Fixing bore
W
3 mm
Width of flats
n
4
Number of screwing holes

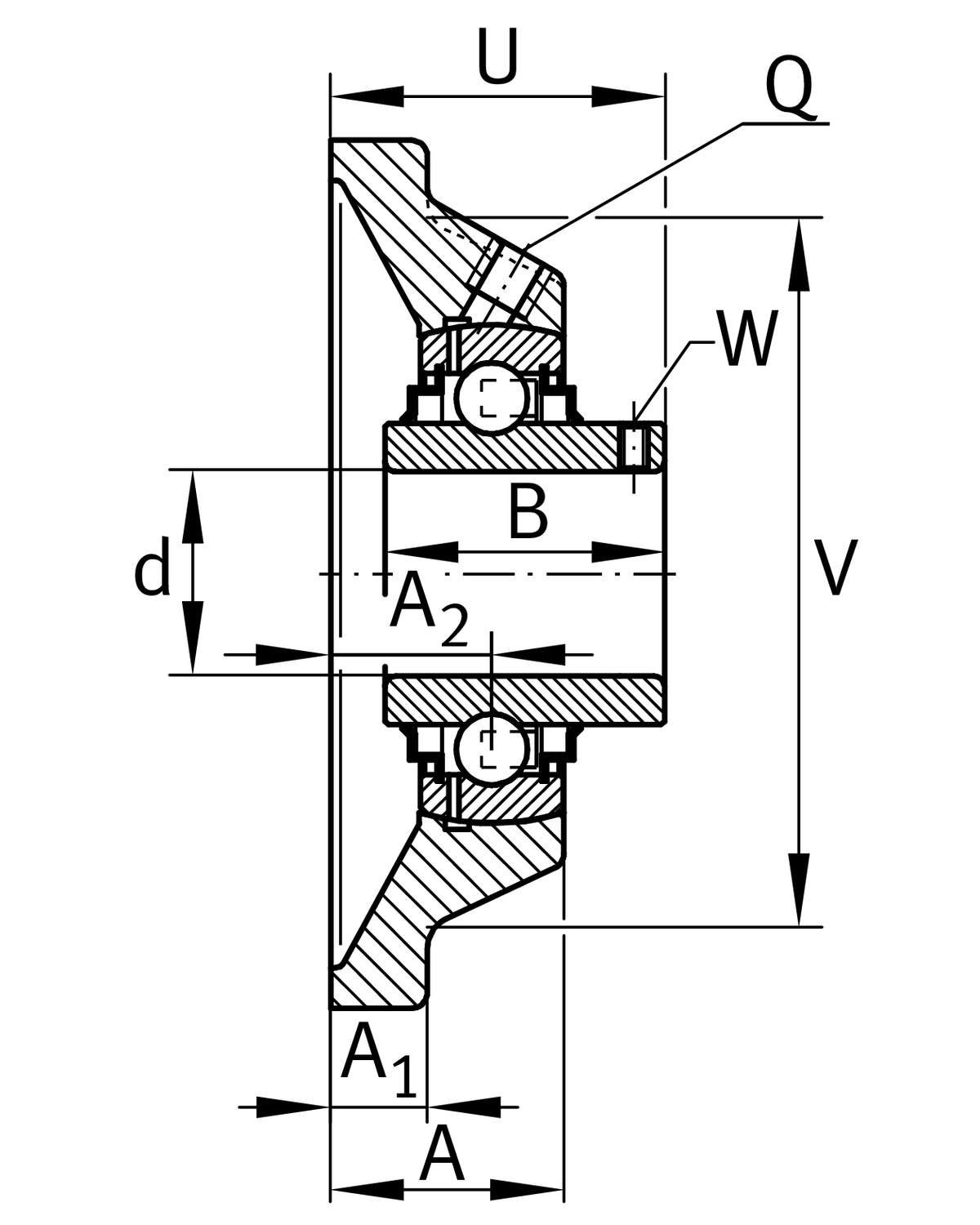

Dimensions
A
31 mm
Height housing
A1
12 mm
Thickness of flange
A2
20 mm
Distance raceway
B
38.1 mm
Width
V
85 mm
Shoulder diameter housing
Q
M6
Connection thread for lubrication

Additional information
1
Number of housings
CJ06-N
Housing
GYE30-XL-KRR-B
Bearing designation
KASK06
Protecting cap

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Your current product variant
GrooveNCast iron housing with undercut slot for end caps
MaterialGGGrey cast iron
