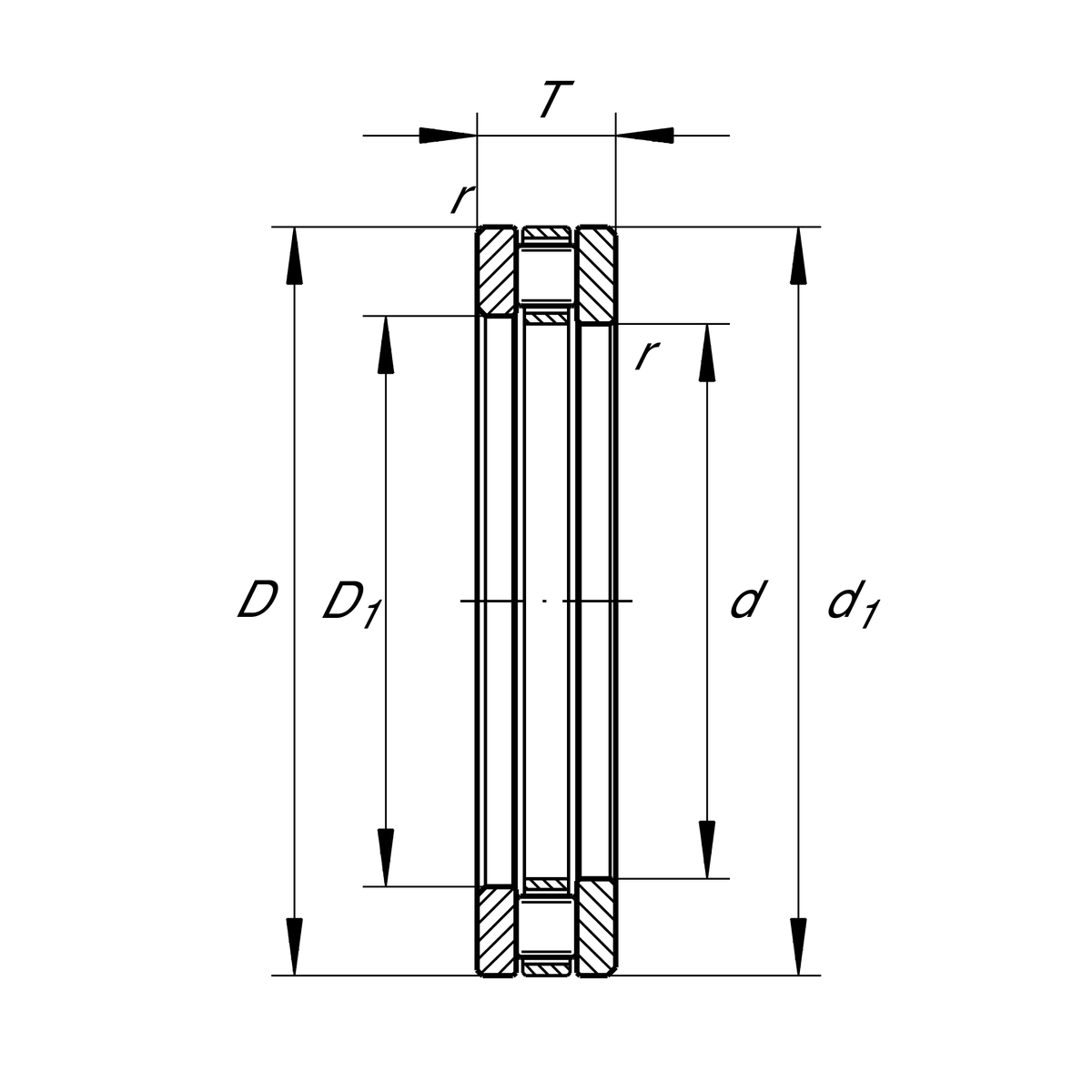

Main Dimensions & Performance Data
| d | 120 mm | Bore diameter |
| T | 39 mm | Height |
| Ca | 340,000 N | Basic dynamic load rating, axial |
| C0a | 1,120,000 N | Basic static load rating, axial |
| Cua | 113,000 N | Fatigue load limit, axial |
| nG | 1,990 1/min | Limiting speed |
| nϑr | 790 1/min | Reference speed |
| D | 170 mm | Outside diameter |
| ≈m | 2.613 kg | Weight |

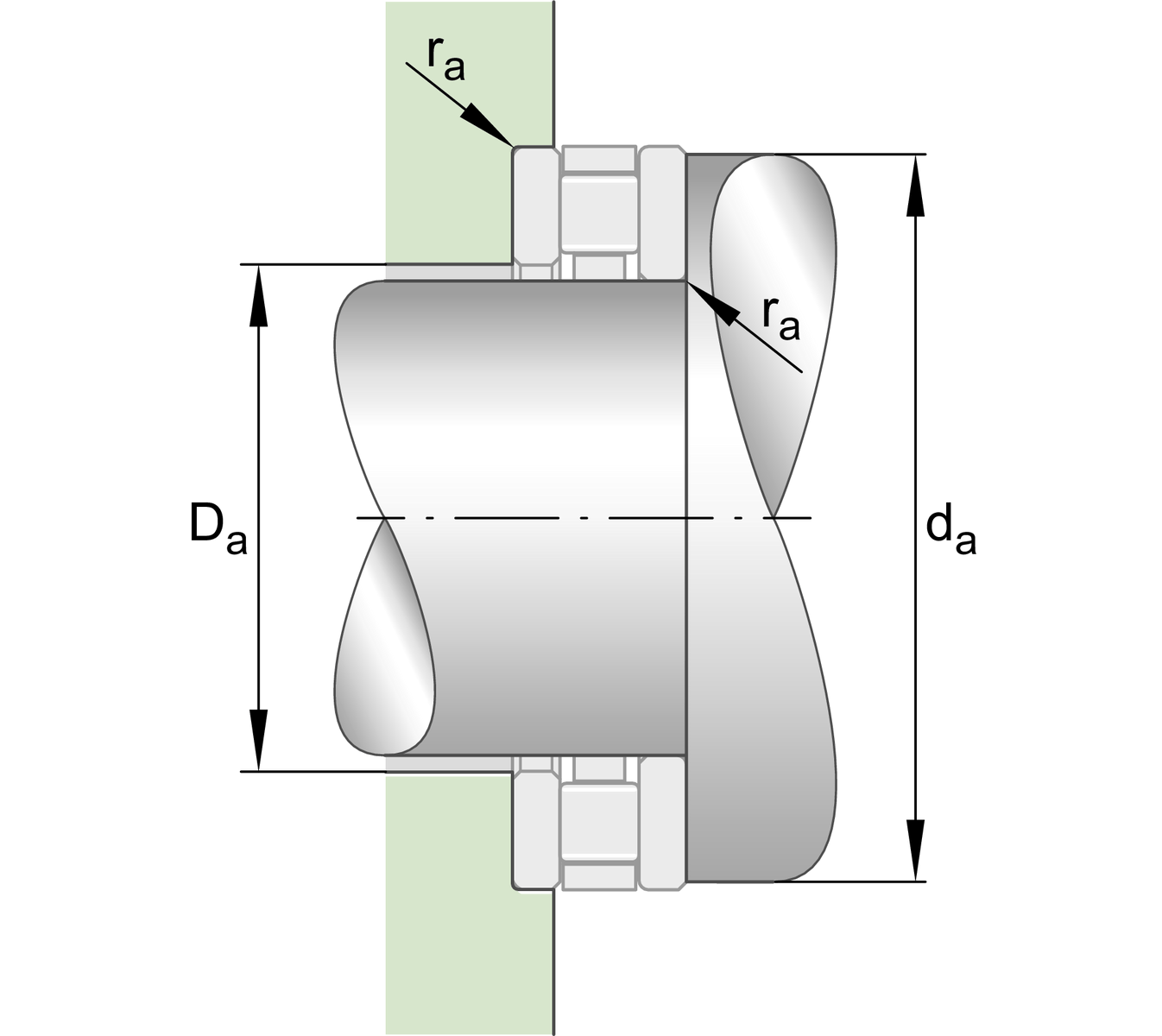

Mounting dimensions
| da min | 162 mm | Minimum diameter shaft shoulder |
| Da max | 127 mm | Maximum diameter of housing shoulder |
| ra max | 1.1 mm | Maximum recess radius |
Dimensions
| D1 | 123 mm | Bore diameter housing washer |
| d1 | 170 mm | Rip diameter shaft washer |
| rmin | 1.1 mm | Minimum chamfer dimension |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
K81224-TV | Axial roller and cage assembly | |
GS81224 | Housing Washer | |
WS81224 | Shaft washer | |
LS150190 | Track Washer |
Your current product variant
| Cage | TV | Plastic Cage made from PA66 |
