FAG INA Schaeffler
INA
GE30-XL-KRR-B-AS2/V-L402/70-OSE
Radial insert ball bearing GE30-XL-KRR-B-AS2/V-L402/70-OSE
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
30 mm
Bore diameter
DSP
62 mm
Outside diameter
B
36.5 mm
Width
Cr
20,700 N
Basic dynamic load rating, radial
C0r
11,300 N
Basic static load rating, radial
≈m
0.288 kg
Weight

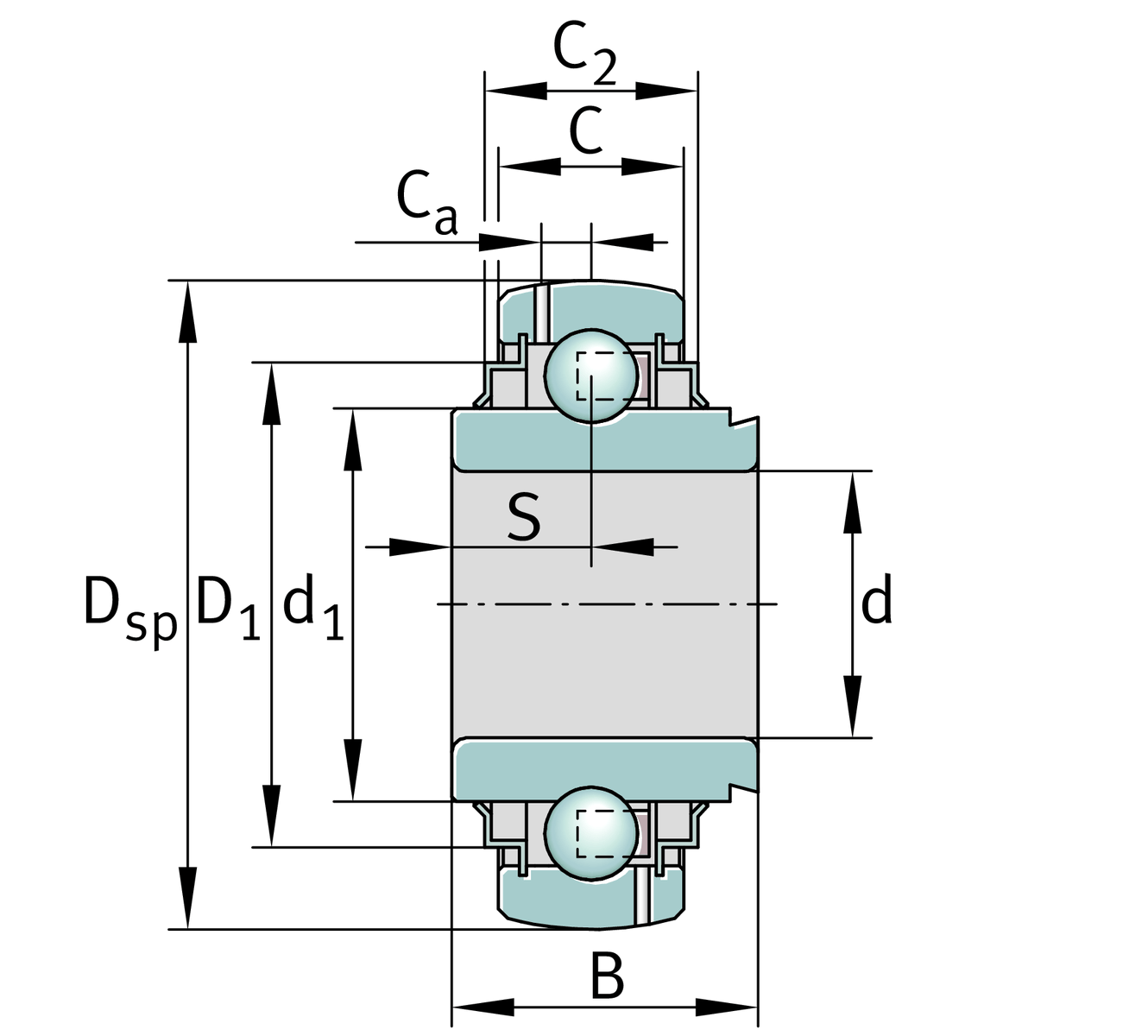

Dimensions
C
18 mm
Width, outer ring
C2
19.8 mm
Sealing total width
S
18.3 mm
Distance raceway
d1
40.19 mm
Rib diameter inner ring
Ca
5 mm
Distance to lubrication hole

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Your current product variant
SealingKRRLip seals on both sides
Shape of outer surfaceB
Lubrication hole transposedAS2/VAS2/V
LubricantL402/70L402/70
Without locking deviceOSEBearing without locking element
