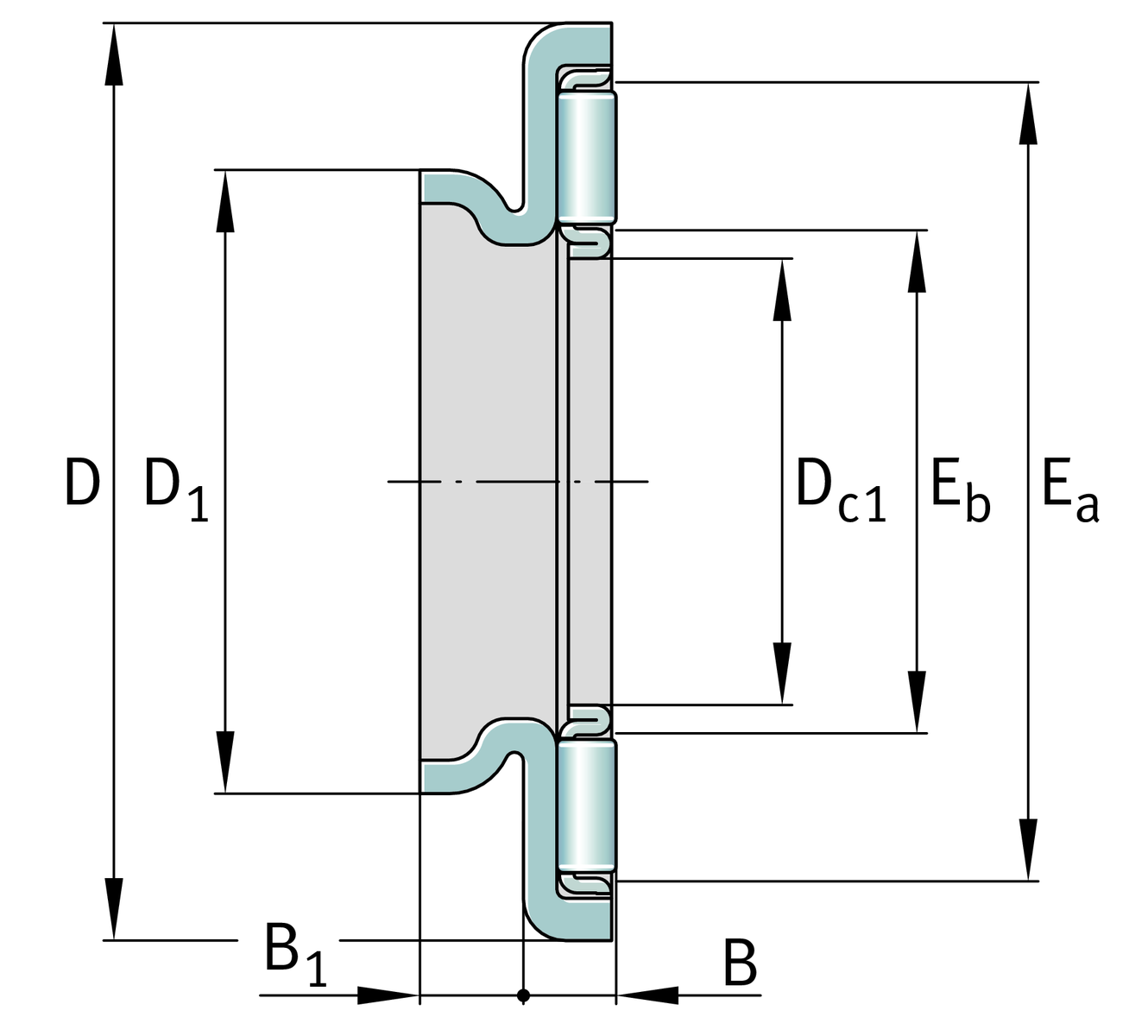

Main Dimensions & Performance Data
| Dc1 | 30 mm | Bore diameter cage |
| D | 50 mm | Outside diameter bearing washer |
| B | 3.2 mm | Height bearing |
| B1 | 4 mm | Height centering collar |
| D1 | 37 mm | Outside diameter centering collar |
| Ea | 46 mm | Raceway dimension |
| Eb | 34 mm | Raceway dimension |
| C | 16,400 N | Basic dynamic load rating, axial |
| C0a | 70,000 N | Basic static load rating, axial |
| cua | 7,200 N | Fatigue load limit, axial |
| nG | 7,500 1/min | Limiting speed |
| n ϑr | 3,800 1/min | Reference speed |
| ≈m | 23.41 g | Weight |
Additional information
AS3047 | Axial bearing washer | |
HK3018-RS | Drawn cup needle roller bearings turned | |
HK3016 | Drawn cup needle roller bearings | |
HK3020 | Drawn cup needle roller bearings | |
HK3026 | Drawn cup needle roller bearings | |
HK3038-ZW | Drawn cup needle roller bearings | |
HK3012 | Drawn cup needle roller bearings for radial bearing arrangement | |
BK3012 | Needle bush | |
BK3016 | Needle bush | |
BK3020 | Needle bush | |
BK3026 | Needle bush | |
BK3038-ZW | Needle bush | |
NA4904 | Needle roller bearings with inner ring | |
NA6904 | Needle roller bearings with inner ring | |
NK28/20 | Needle roller bearings with out inner ring | |
NK28/30 | Needle roller bearings with out inner ring | |
NKS24 | Needle roller bearings with out inner ring | |
RNA4904 | Needle roller bearings with out inner ring | |
RNA6904 | Needle roller bearings with out inner ring |
