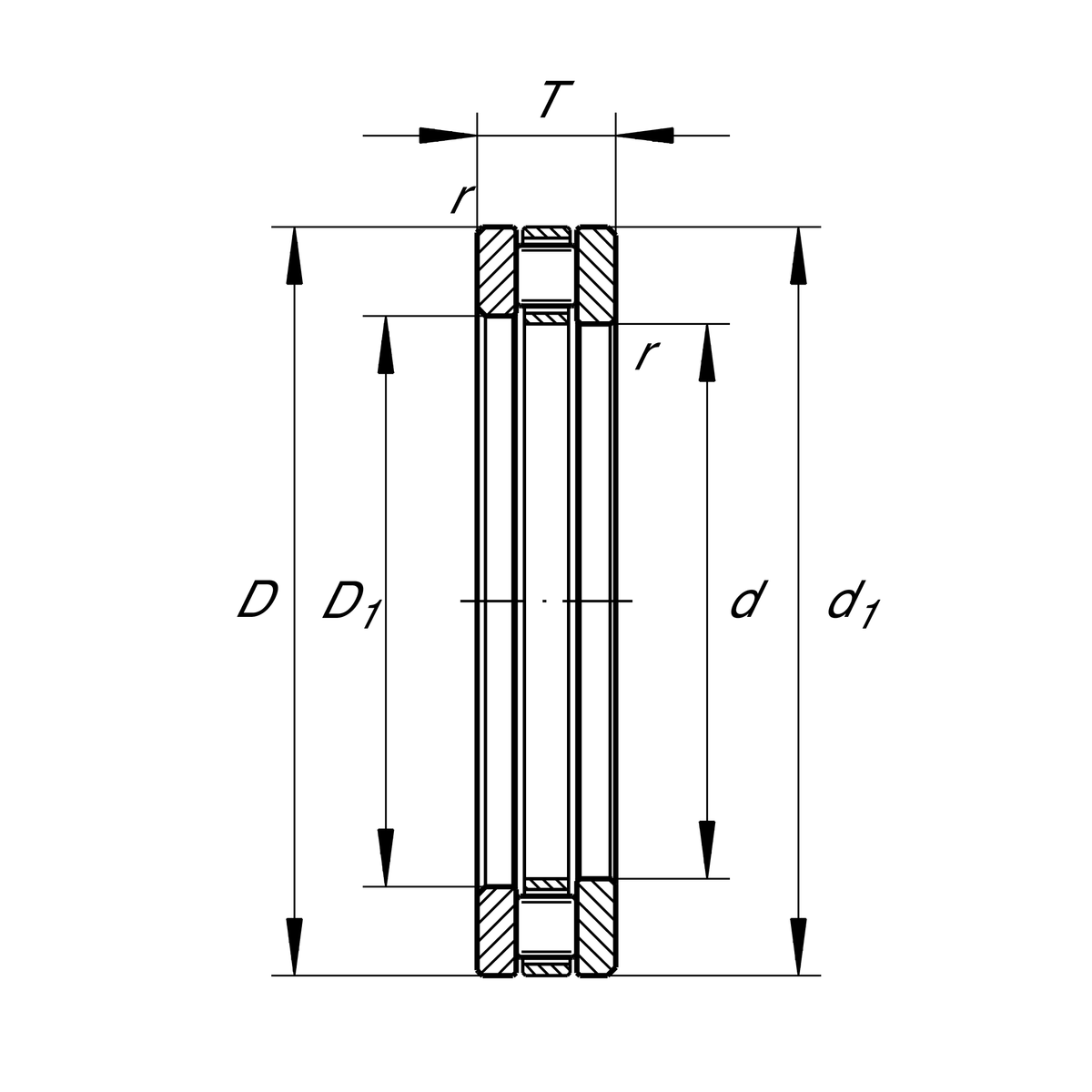

Main Dimensions & Performance Data
| d | 110 mm | Bore diameter |
| Ca | 207,000 N | Basic dynamic load rating, axial |
| C0a | 700,000 N | Basic static load rating, axial |
| ≈m | 0.978 kg | Weight |

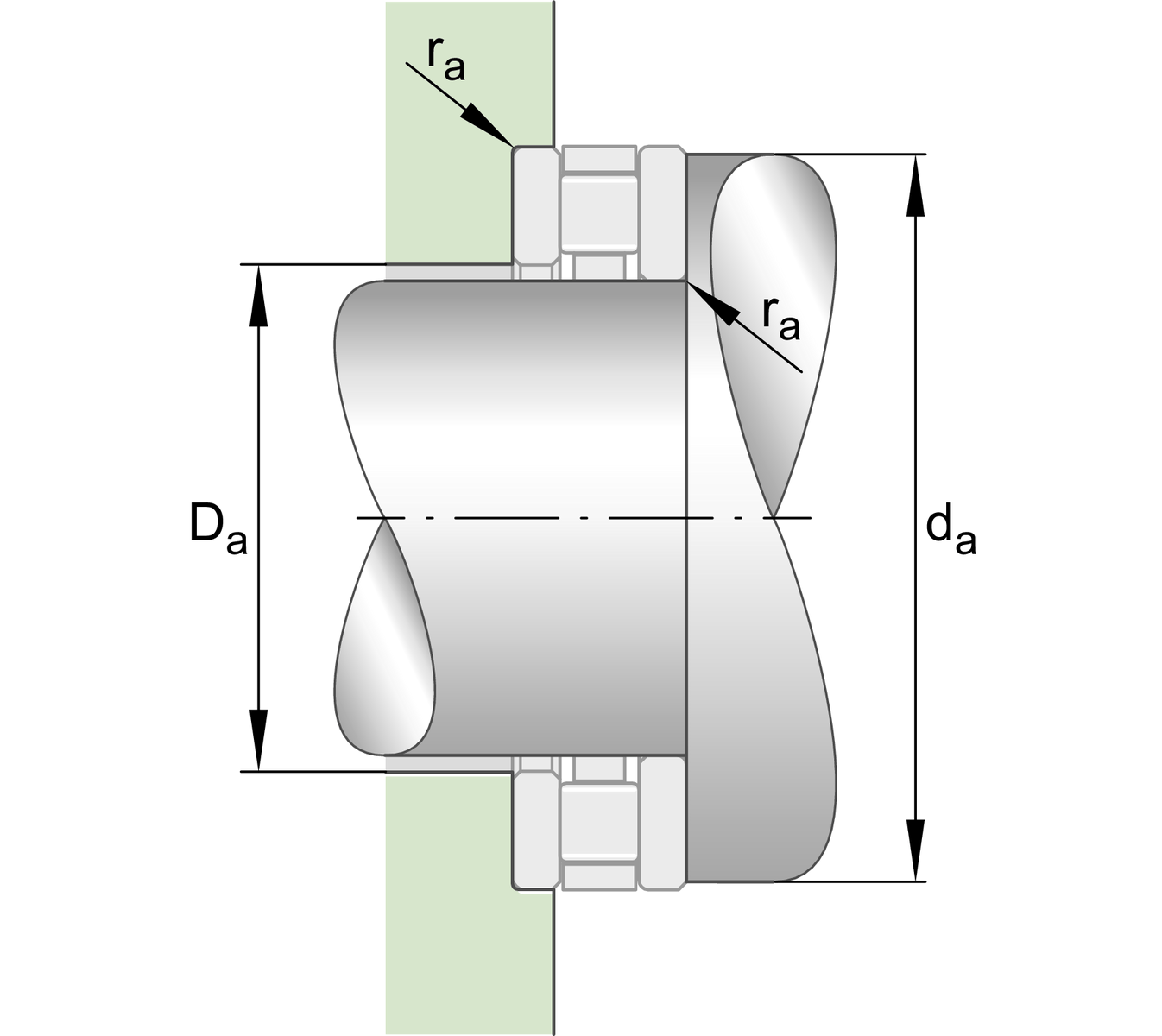

Mounting dimensions
| da min | 141 mm | Minimum diameter shaft shoulder |
| Da max | 114 mm | Maximum diameter of housing shoulder |
| ra max | 1 mm | Maximum recess radius |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
K81122-TV | Axial roller and cage assembly | |
GS81122 | Housing Washer | |
WS81122 | Shaft washer | |
LS110145 | Track Washer |
Your current product variant
| Cage | TV | Plastic Cage made from PA66 |
