UKFL206
Flanged housing unit UKFL206
Thêm vào yêu cầu báo giá

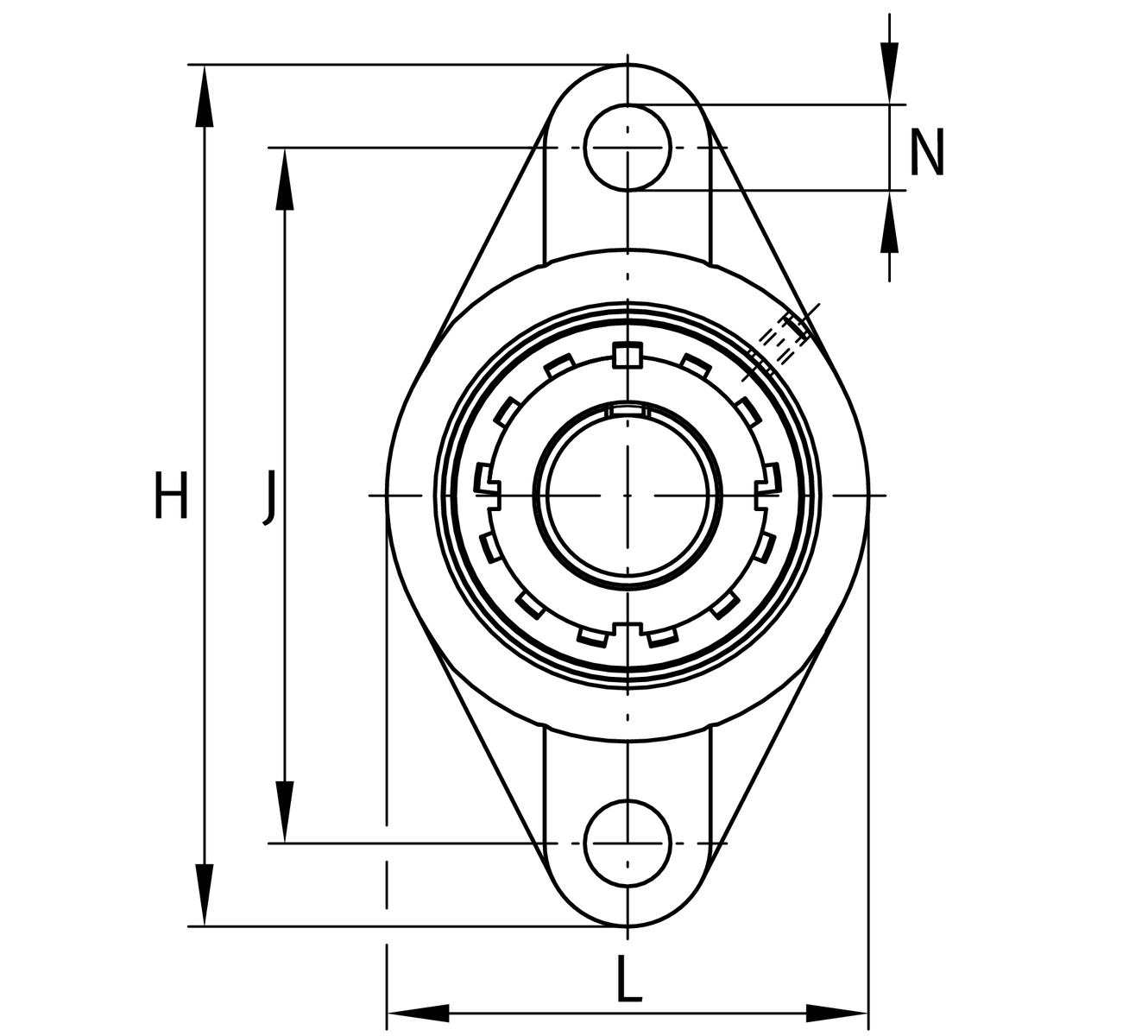

Main Dimensions & Performance Data
d
25 mm
Bore diameter
L
80 mm
Flange width
H
148 mm
Height flange
Cr
20,700 N
Basic dynamic load rating, radial
C0r
11,300 N
Basic static load rating, radial
Cur
590 N
Fatigue load limit, radial
≈m
0.94 kg
Weight

Mounting dimensions
J
117 mm
Distance fixing bore
N
16 mm
Fixing bore
n
2
Number of screwing holes

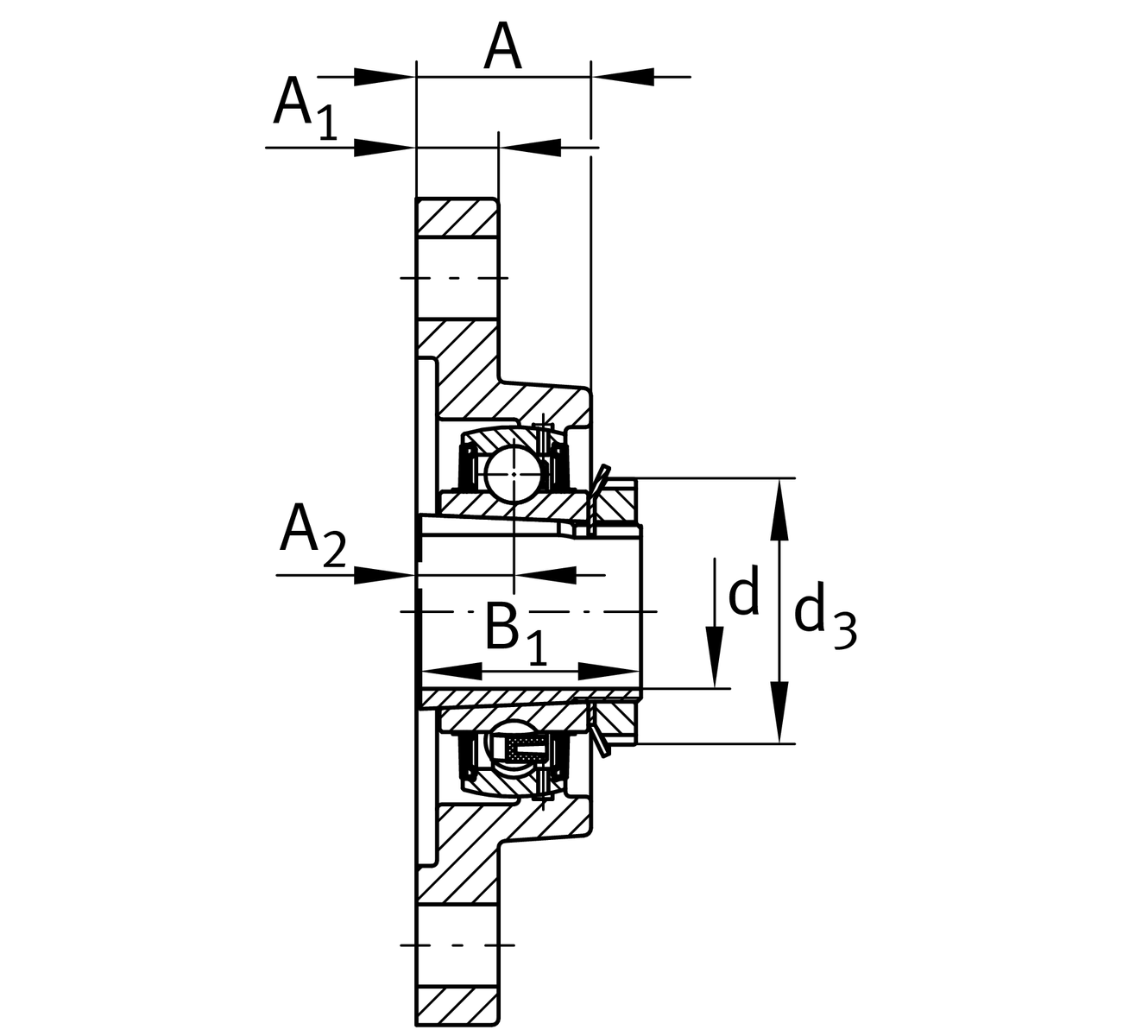

Dimensions
A
31 mm
Height housing
A1
14 mm
Thickness of flange
A2
18 mm
Distance raceway
B
25 mm
Width
B1
38 mm
Locking collar total width
d3
45 mm
Outside diameter eccentric locking collar

Additional information
1
Number of housings
FL206
Housing
UK206
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
