RSHE25-TV-VA-FD
Plummer block housing unit RSHE25-TV-VA-FD
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
25 mm
Bore diameter
L
76.2 mm
Length
H2
73.5 mm
Height
≈m
0.35 kg
Weight

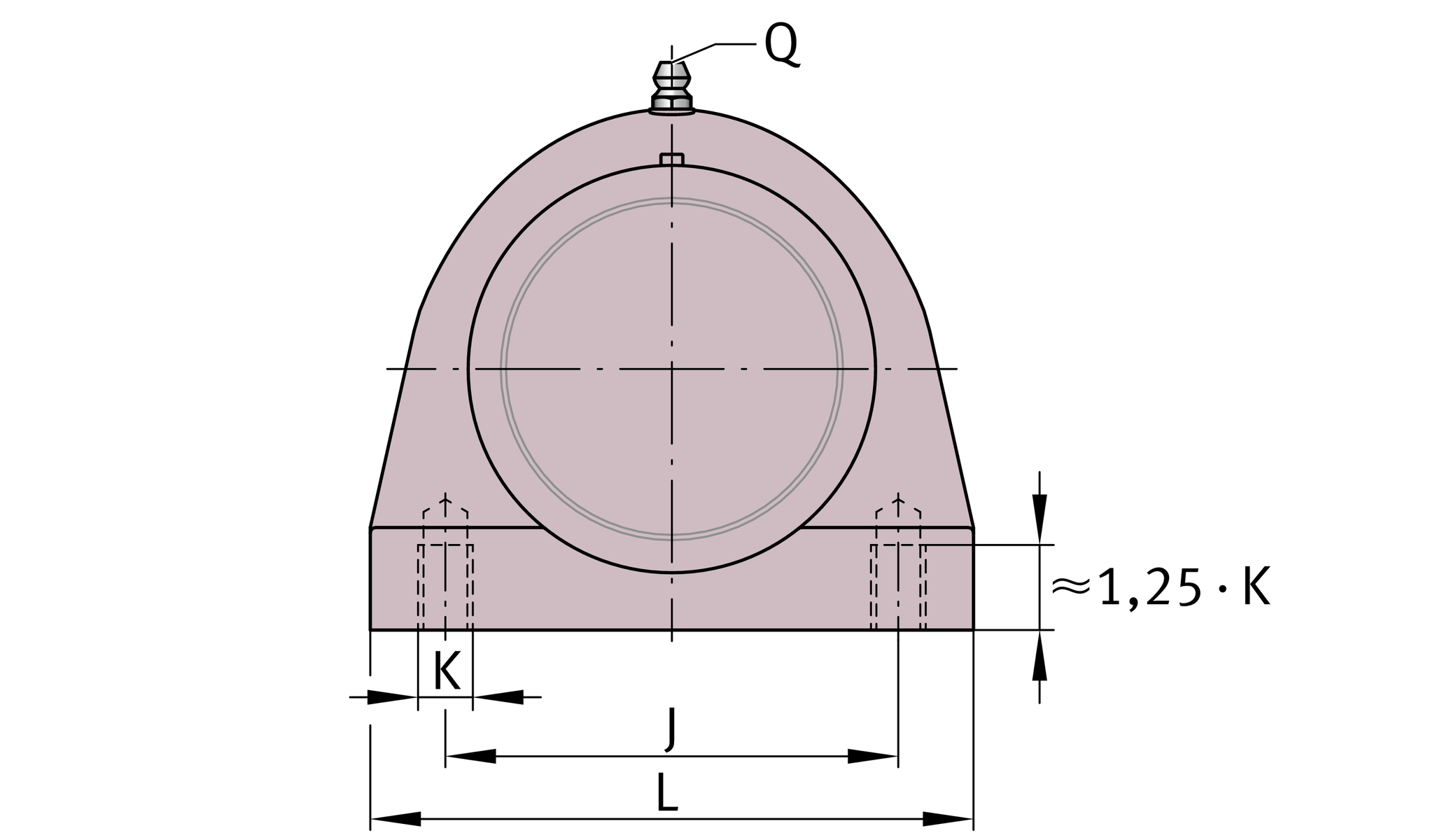

Mounting dimensions
J
50.8 mm
Distance fixing bore
K
M10
Thread fixing bore
W
3 mm
Width of flats

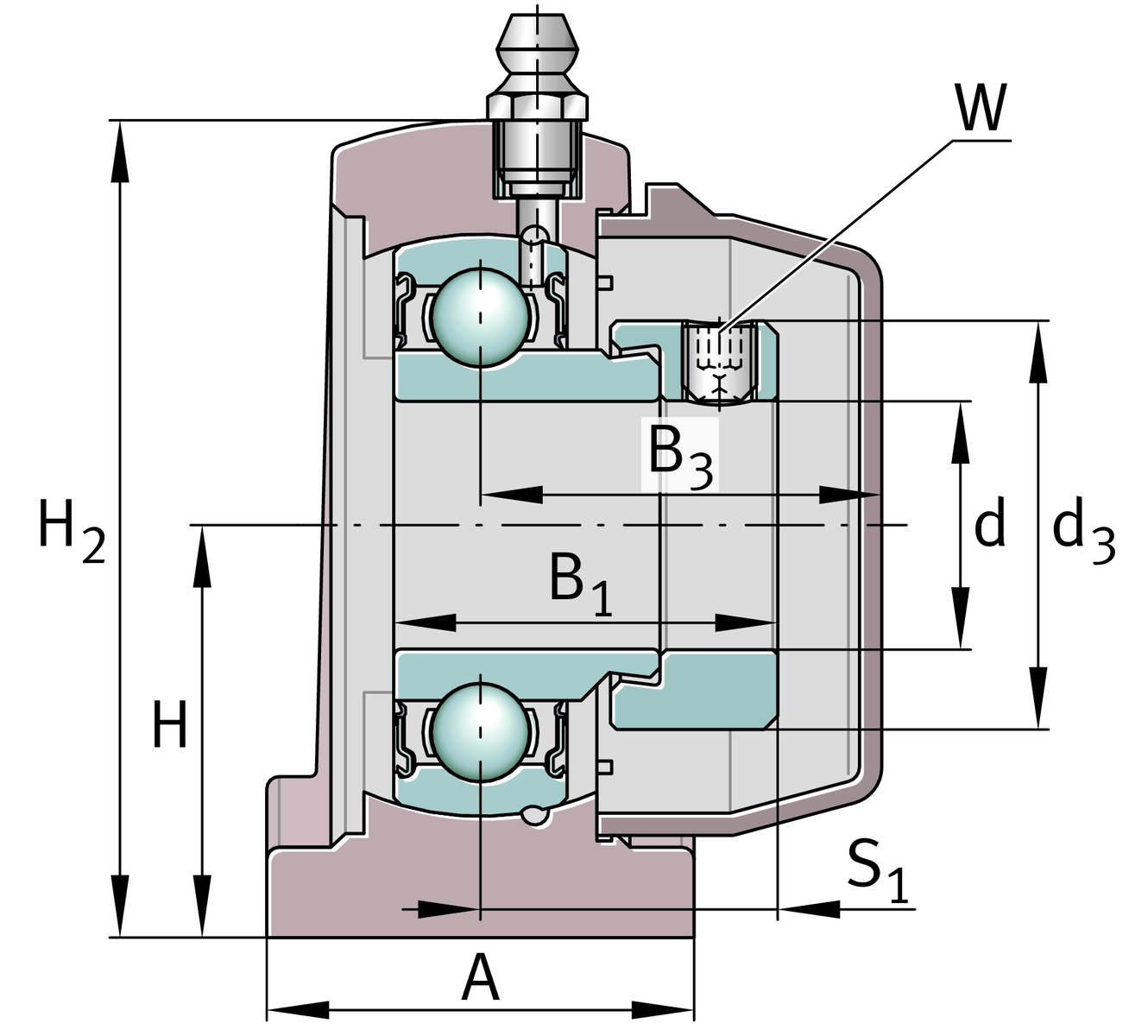

Dimensions
H
36.5 mm
Distance shaft axis
A
39.5 mm
Width (base)
B1
31 mm
Locking collar total width
B3
35.05 mm
Distance housing centre to cap end
S1
23.5 mm
Distance raceway to locking collar
Q
1/4"-28 UNF
Connection thread for lubrication
d3
38.1 mm
Outside diameter eccentric locking collar

Additional information
GEH.SHE05-TV-WHT
Housing
GE25-KRR-B-FA107-VA-FD
Bearing designation
KASK05-S-G-WHT
End cap
KASK05-S-R-NBR-WHT
Open protecting cap

Temperature range
Tmin
-30 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Your current product variant
Special materialTVPlastic housing
Corrosion resistant bearingVACorrosion-resistant VA design
MaterialTV-FDPlastic for food industry
