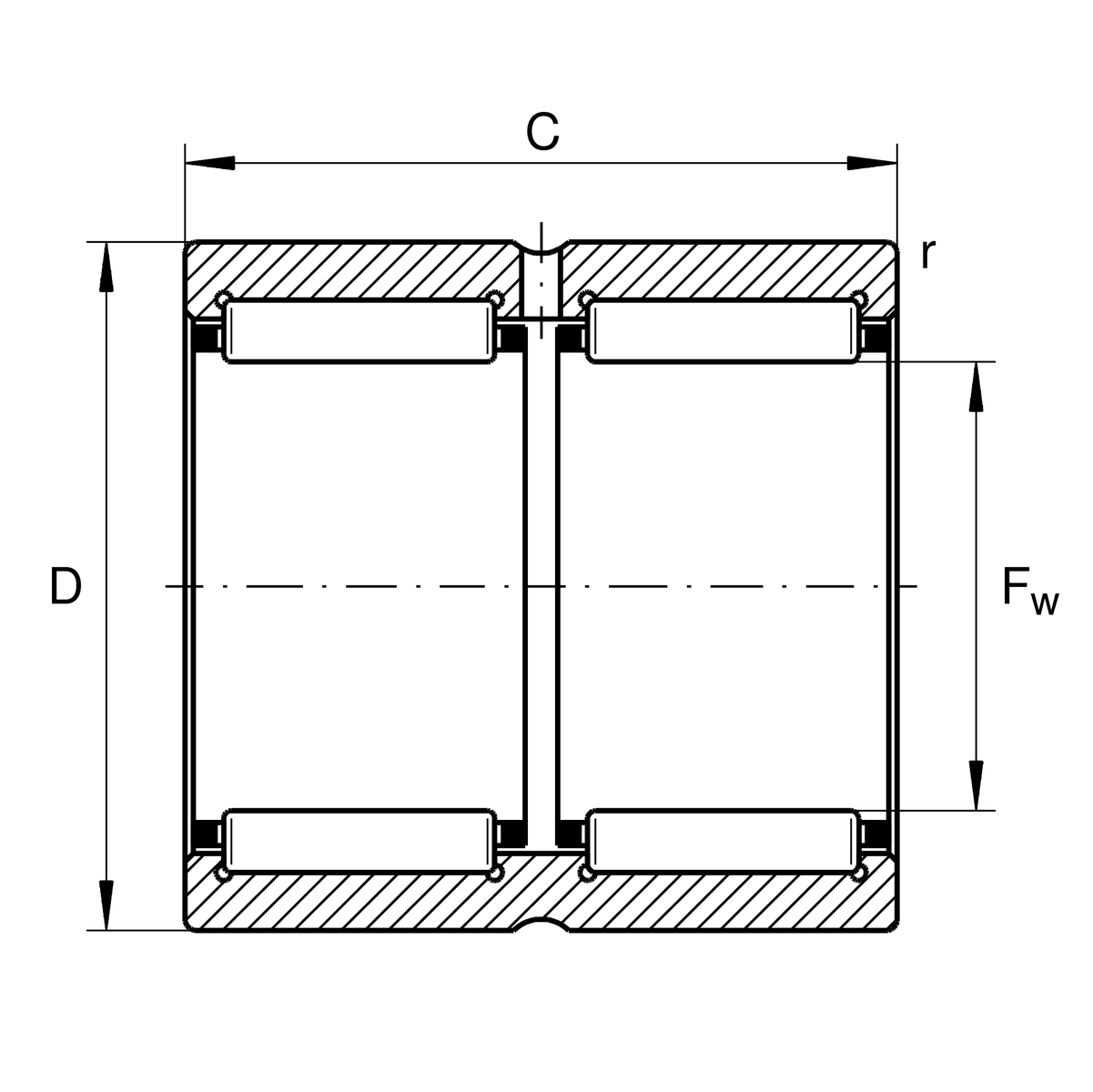

Main Dimensions & Performance Data
| Fw | 105 mm | Under roller diameter |
| D | 125 mm | Outside diameter |
| Cr | 195,000 N | Basic dynamic load rating, radial |
| C0r | 425,000 N | Basic static load rating, radial |
| Cur | 76,000 N | Fatigue load limit, radial |
| nG | 4,400 1/min | Limiting speed |
| nG Grease | 2,650 1/min | Limiting speed for grease lubrication |
| nϑr | 2,700 1/min | Reference speed |
| ≈m | 1.257 kg | Weight |
Dimensions
| rmin | 1.1 mm | Minimum chamfer dimension |
| C | 63 mm | Width, outer ring |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Cage | Standard | Standard |
| Lubrication hole | with | with |
| Coating | Without | |
| Sealing | Without | |
| Special features | Without | |
| Number of rolling element rows | ZW | Double-row design |
