Main Dimensions & Performance Data
| D | 47 mm | Outside diameter |
| Fw | 25 mm | Under roller diameter |
| C | 17.8 mm | Width, outer ring |
| Cr w | 14,000 N | Basic dynamic load rating, radial |
| C0r w | 18,600 N | Basic static load rating, radial |
| Cur w | 2,700 N | Fatigue load limit, radial |
| nD G | 2,300 1/min | Speed on permanent grease lubrication |
| ≈m | 0.146 kg | Weight |

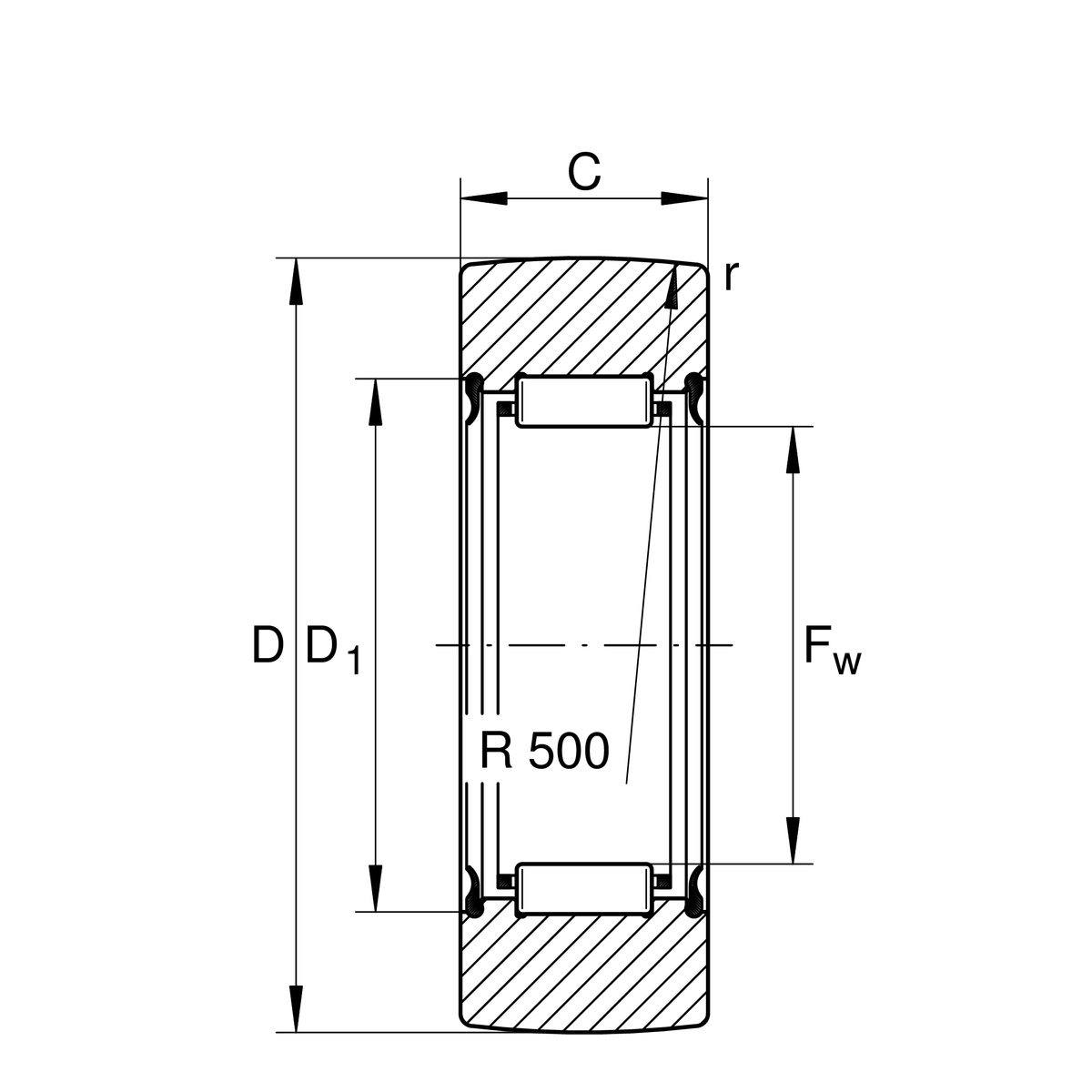

Dimensions
| D1 min | 33 mm | Minimum mounting dimension |
| rmin | 1 mm | Minimum chamfer dimension |
| R | 500 mm | Radius of outer ring outside profile |
Your current product variant
| Sealing | 2RSR | Lip seal on both sides |
| Outer Ring profile | R500 | R500 |
