FAG INA Schaeffler
INA
RCSMF25-XL
Flanged housing unit RCSMF25-XL
Thêm vào yêu cầu báo giá

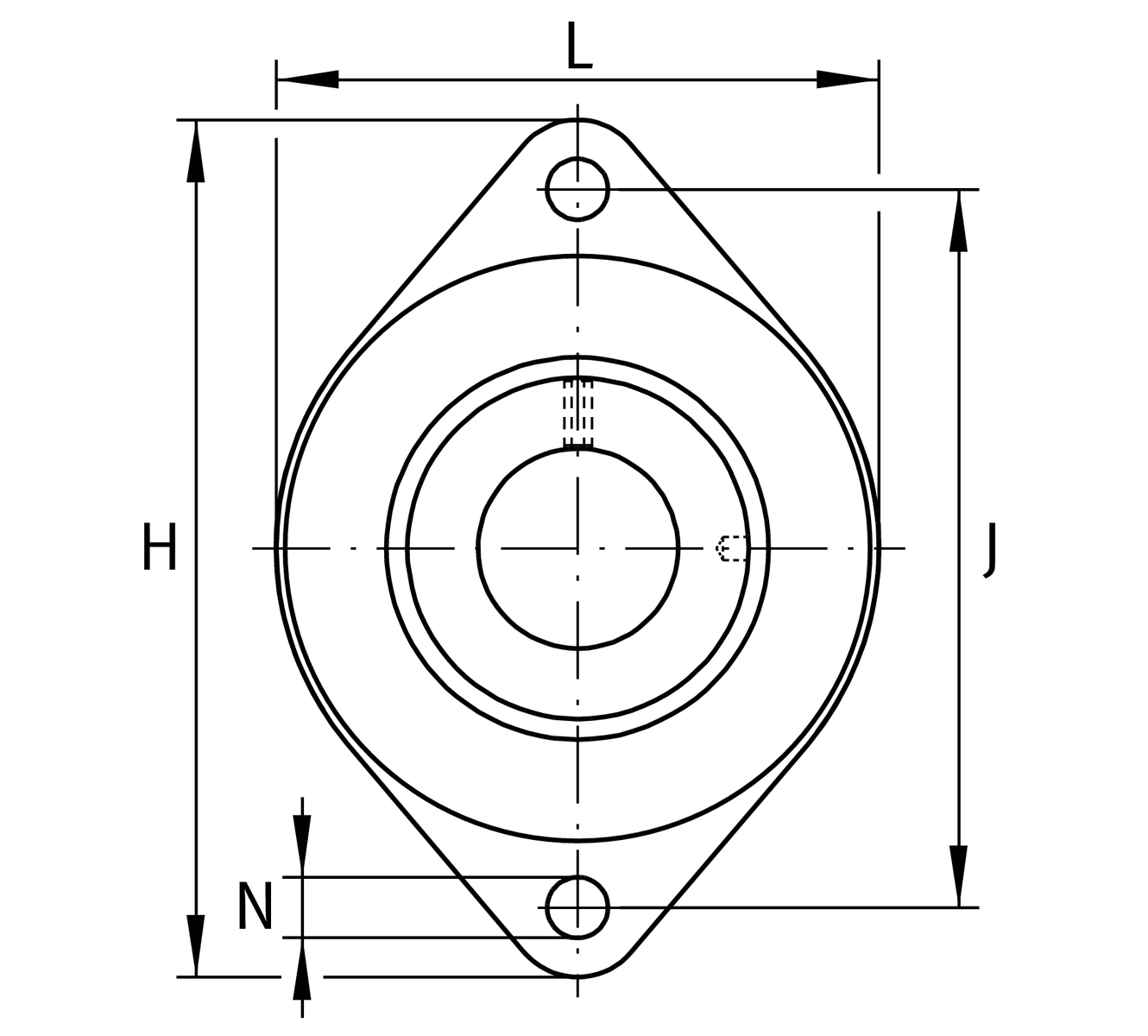

Main Dimensions & Performance Data
d
25 mm
Bore diameter
L
70 mm
Flange width
H
114 mm
Height flange
U
36.2 mm
Total height unit
Cr
14,000 N
Basic dynamic load rating, radial
C0r
7,800 N
Basic static load rating, radial
Cur
370 N
Fatigue load limit, radial
C0r G
1,400 N
Load carrying capacity (housing)
Cg
1,400 N
Load carrying capacity (housing)
≈m
0.34 kg
Weight

Mounting dimensions
J
92 mm
Distance fixing bore
N
10.5 mm
Fixing bore
n
2
Number of screwing holes

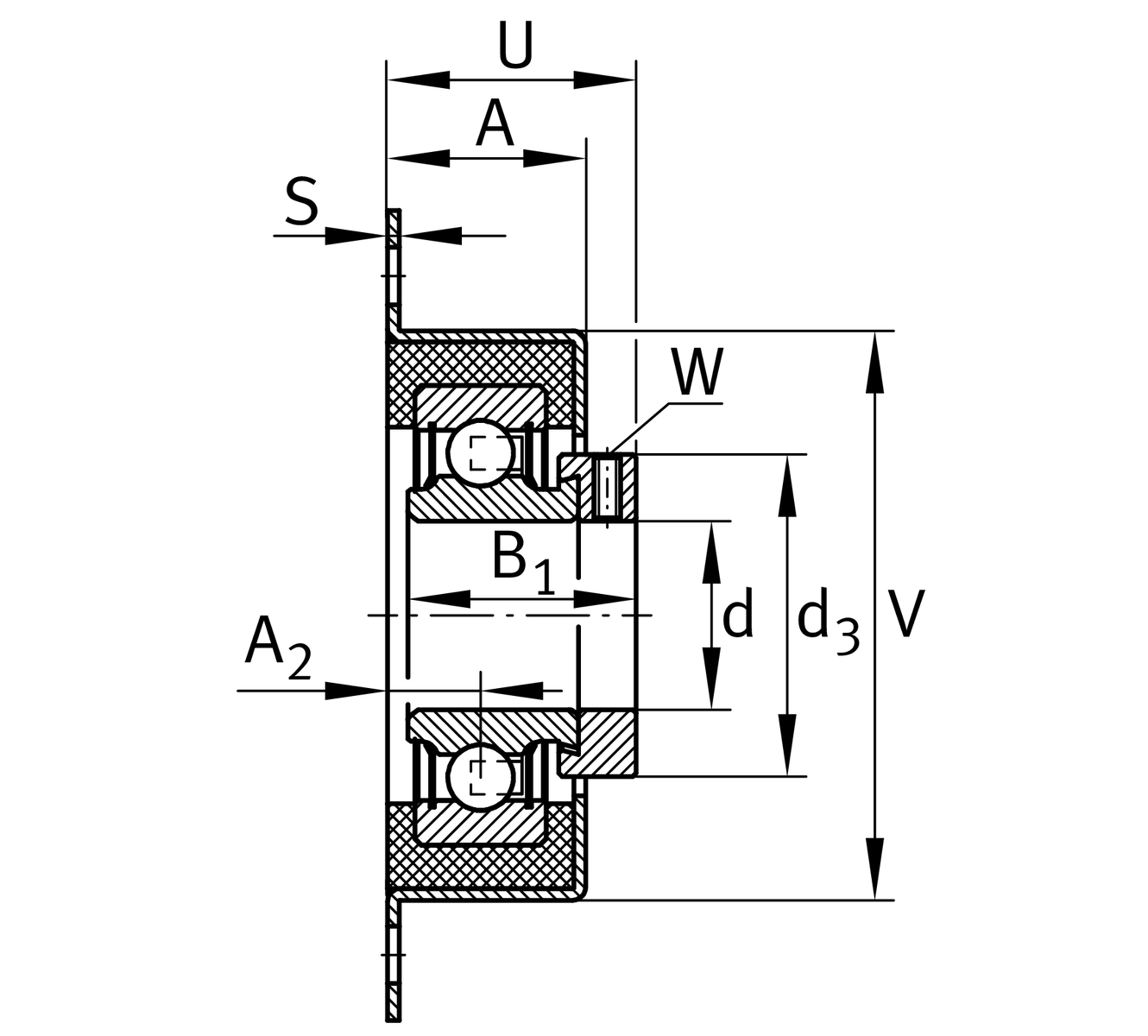

Dimensions
A
27 mm
Height housing
A2
12.7 mm
Distance raceway
S
1.5 mm
Thickness of flange
V
68 mm
Shoulder diameter housing

Additional information
2
Number of housings
FLAN65-RCSMF
Housing
GRG.RCSM52/65
Rubber interliner designation
RAE25-XL-NPP-FA106
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialStahlblechSteel sheet
