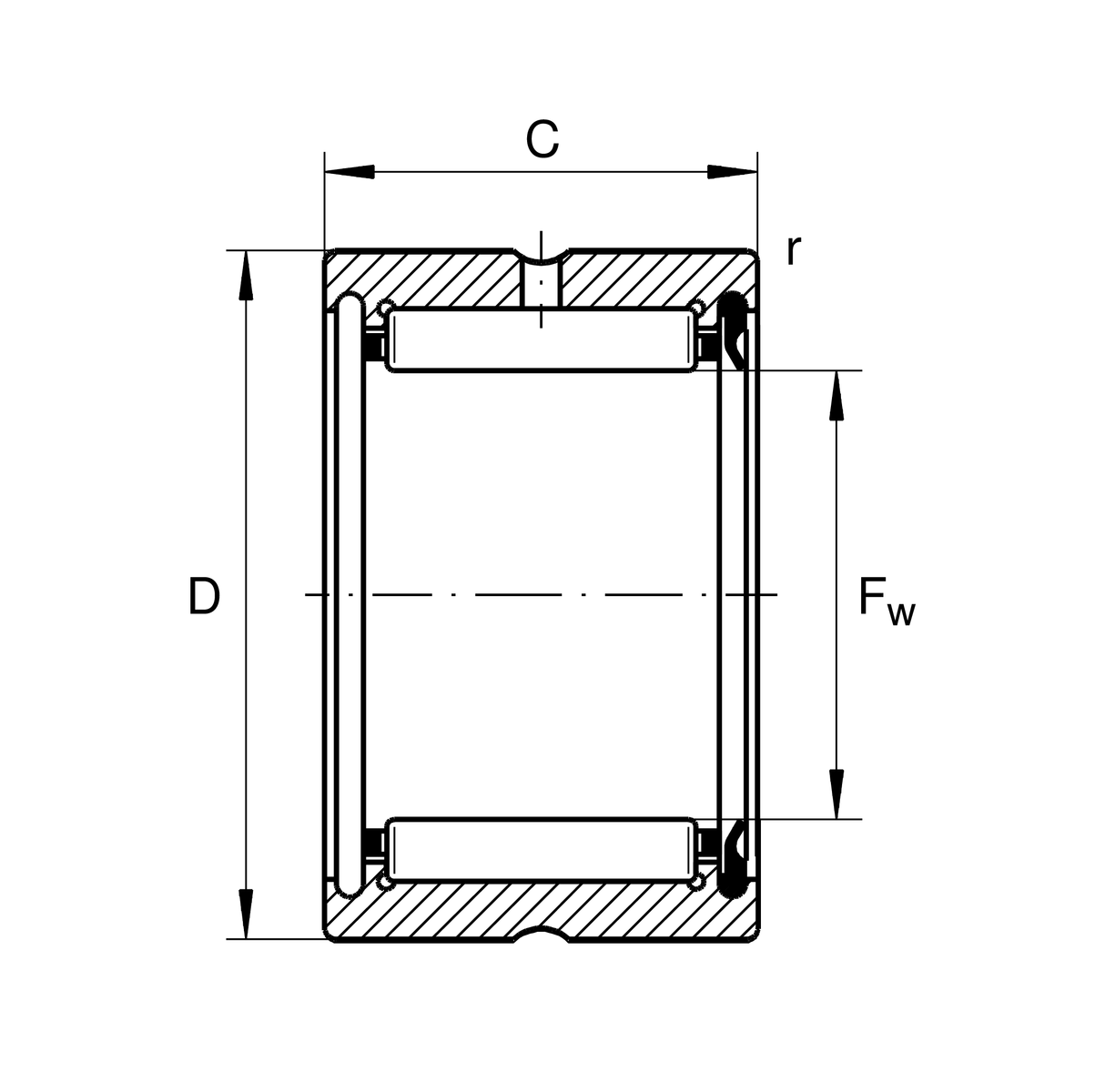

Main Dimensions & Performance Data
| Fw | 25 mm | Under roller diameter |
| D | 37 mm | Outside diameter |
| C | 17 mm | Width, outer ring |
| Cr | 19,500 N | Basic dynamic load rating, radial |
| C0r | 19,900 N | Basic static load rating, radial |
| Cur | 3,800 N | Fatigue load limit, radial |
| nG | 10,100 1/min | Limiting speed |
| ≈m | 53.33 g | Weight |
Dimensions
| rmin | 0.3 mm | Minimum chamfer dimension |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 100 °C | Operating temperature max. |
Your current product variant
| Cage | Standard | |
| Cage feature | Standard |
