Main Dimensions & Performance Data
| d | 140 mm | Bore diameter |
| D | 240 mm | Outside diameter |
| T | 60 mm | Height |
| Ca | 820,000 N | Basic dynamic load rating, axial |
| C0a | 3,200,000 N | Basic static load rating, axial |
| Cua | 300,000 N | Fatigue load limit, axial |
| nG | 1,520 1/min | Limiting speed |
| nϑr | 570 1/min | Reference speed |
| ≈m | 12.6 kg | Weight |
Mounting dimensions
| da | 235 mm | Minimum diameter shaft shoulder |
| Da | 152 mm | Maximum diameter of housing shoulder |
| ra | 2.1 mm | Recess radius |

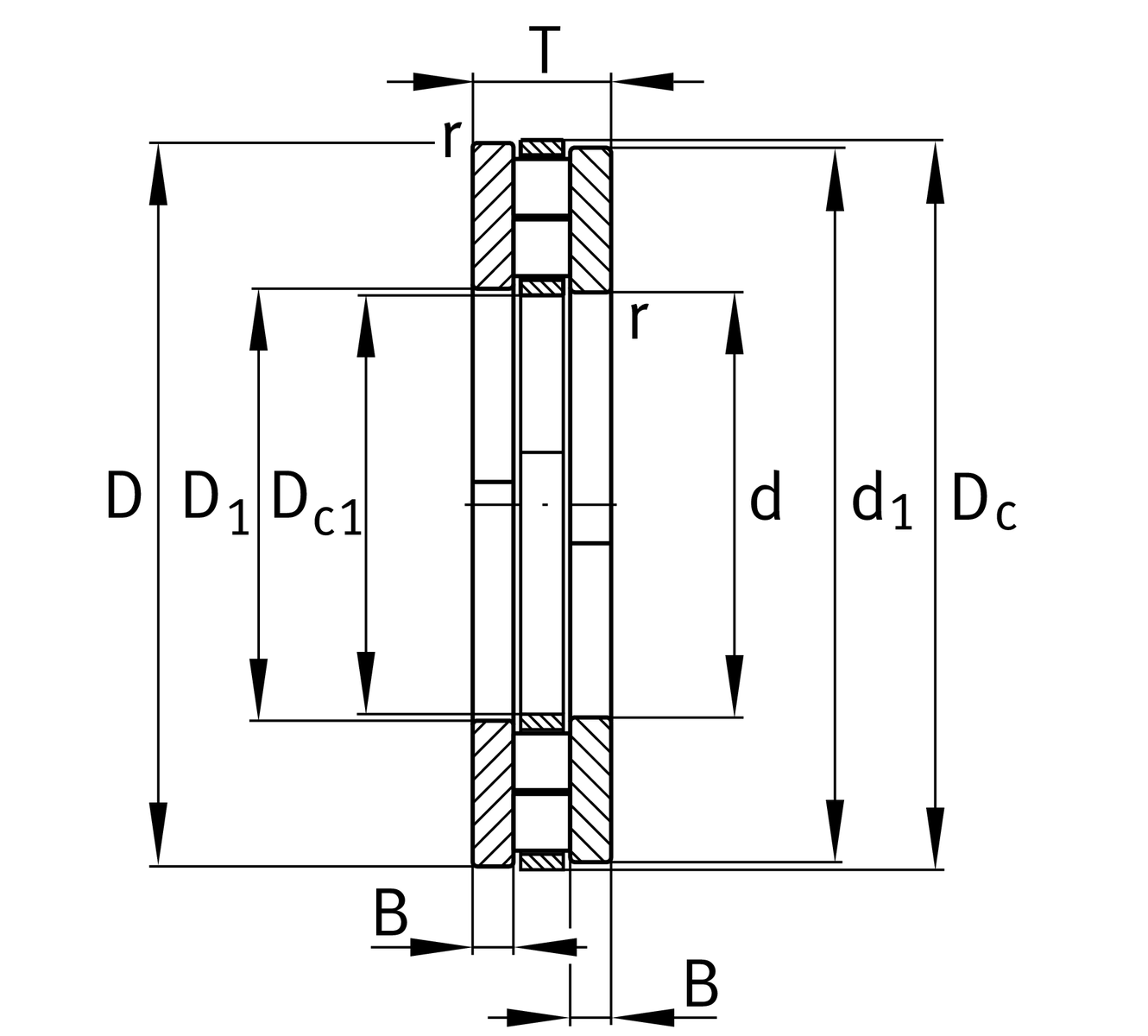

Dimensions
| D1 | 144 mm | Bore diameter housing washer |
| d1 | 240 mm | Rip diameter shaft washer |
| B | 60 mm | Width |
| rmin | 2.1 mm | Minimum chamfer dimension |
| Dc1 | 140 mm | Cage bore diameter |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
K89328-M | Axial roller and cage assembly | |
GS89328 | Housing Washer | |
WS89328 | Shaft washer |
