GE100-SW

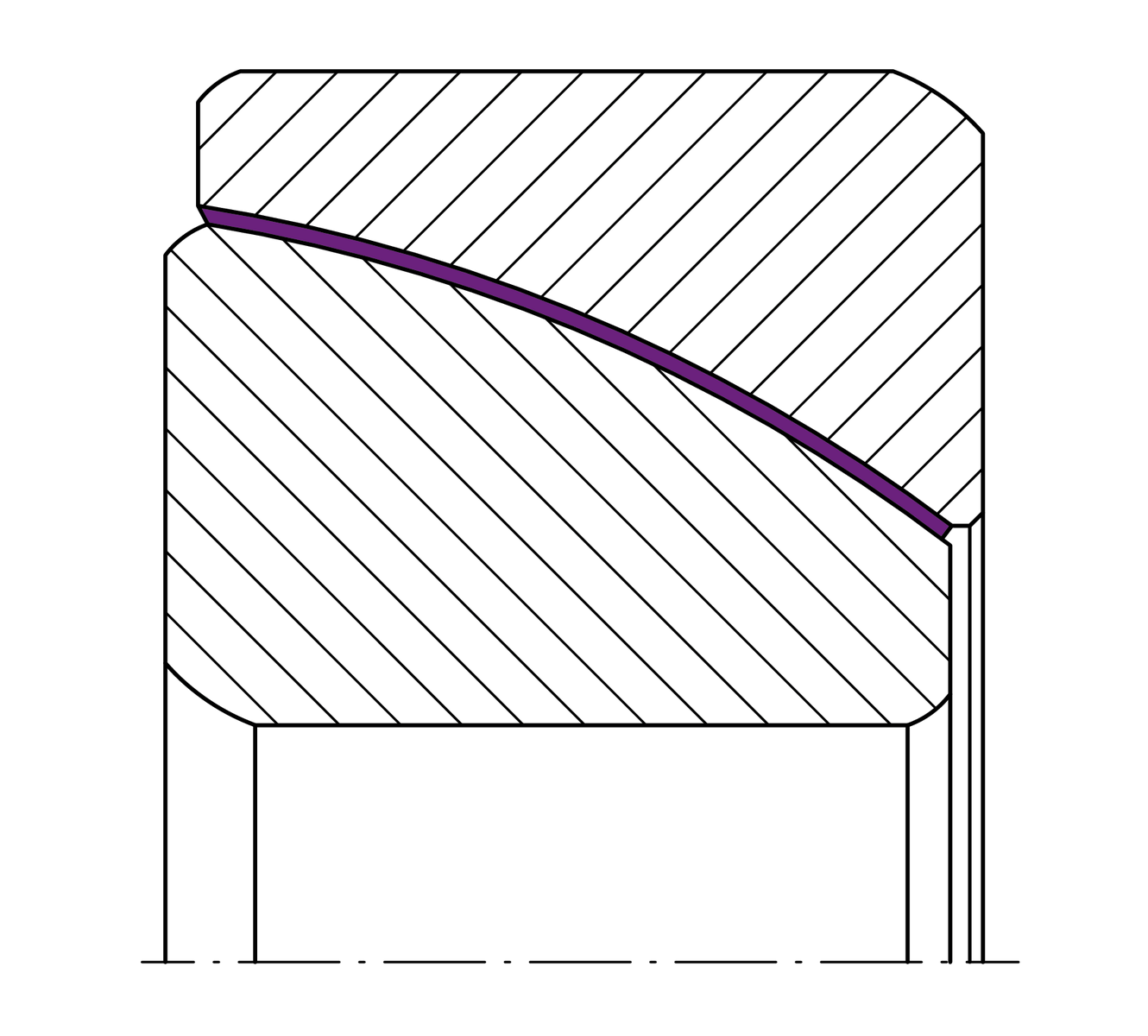

Spherical plain bearing GE100-SW
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
100 mm
Bore diameter bearing
D
150 mm
Outside diameter bearing
T
32 mm
Height
B
30 mm
Width Inner ring
Cr
1,020,000 N
Basic dynamic load rating, radial
C0r
1,700,000 N
Basic static load rating, radial
≈m
2.211 kg
Weight

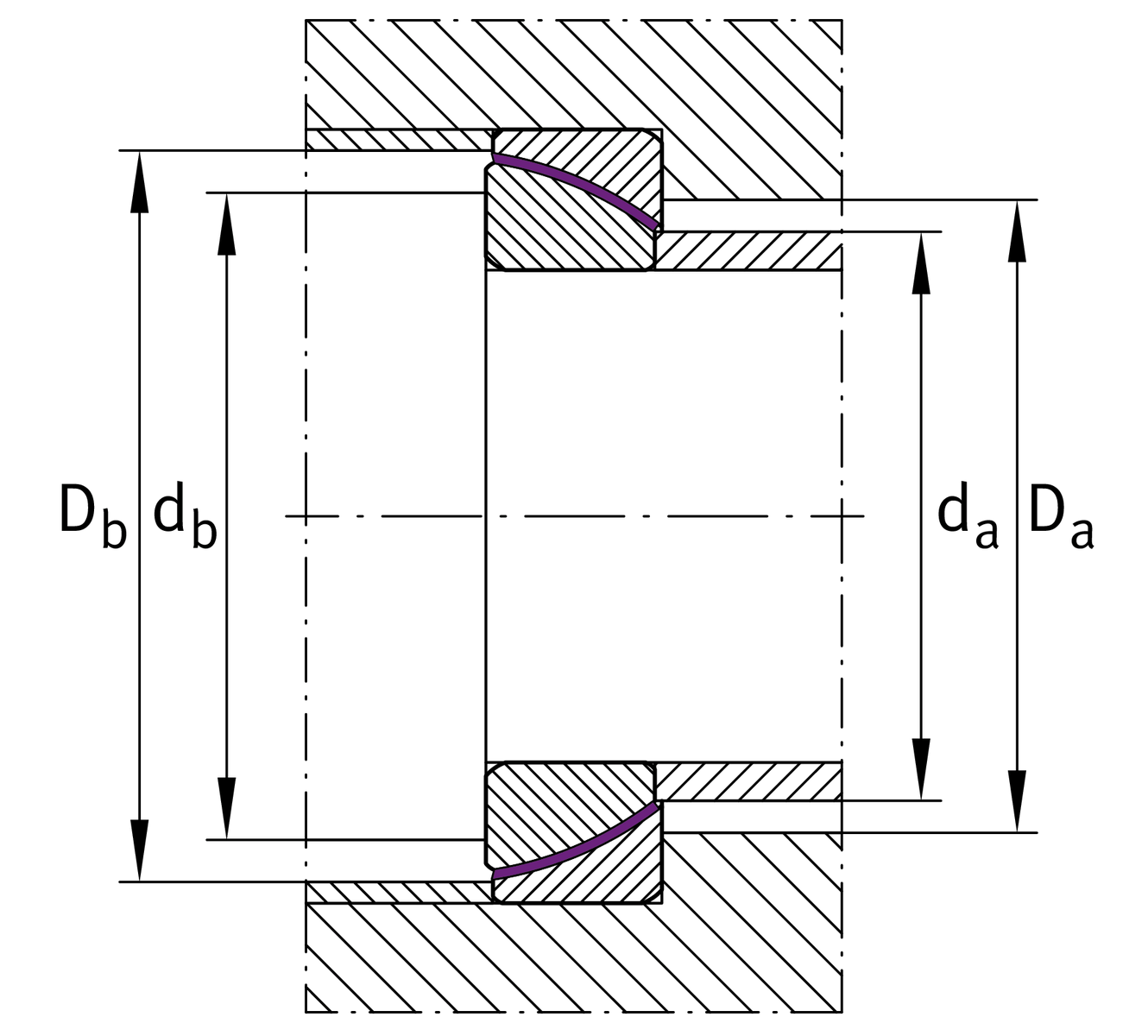

Mounting dimensions
r1smin
2 mm
Edge Spacing
r2smin
0.6 mm
Edge Spacing
da max
112 mm
Connection measure Inner ring
Db min
142 mm
Connection diameter
db max
128 mm
Connection measure Inner ring
Da min
123 mm
Housing Connection Diameter

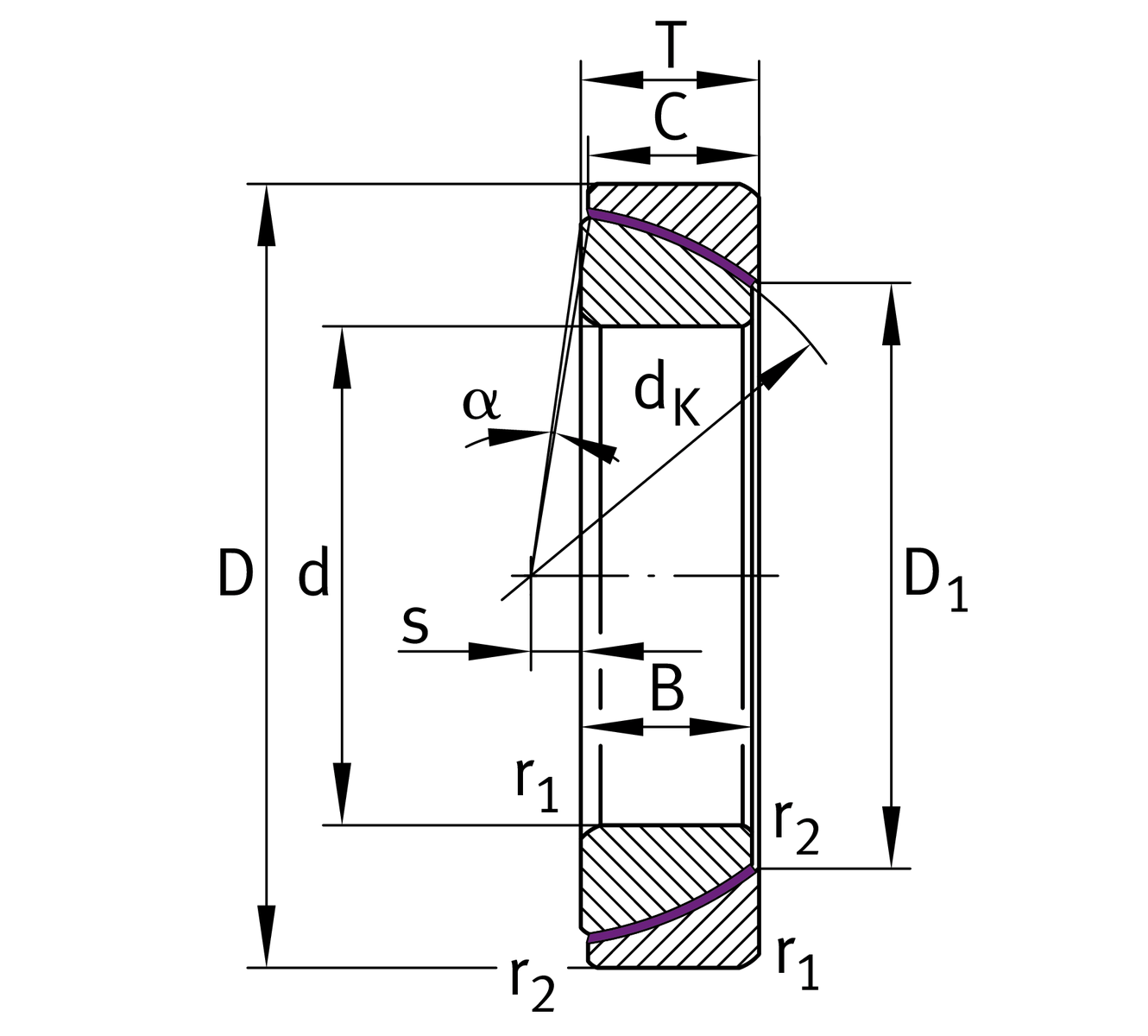

Dimensions
dK
140 mm
Ball diameter
D1
114.3 mm
Bore diameter of housing washer
C
30 mm
Width Outer ring
s
12 mm
Plane Surface Spacing
α
1.7 °
Tilt angle
dOT
0 mm
Bore diameter bearing, upper tolerance
dUT
-0.02 mm
Bore diameter bearing, lower tolerance
DOT
0 mm
Outside diameter, upper tolerance
DUT
-0.02 mm
Outside diameter, lower tolerance
TOT
0.25 mm
Height, upper tolerance
BOT
0 mm
Width inner ring, upper tolerance
TUT
-0.25 mm
Height, lower tolerance
BUT
-0.4 mm
Width inner ring, lower tolerance
COT
0 mm
Width outer ring, upper tolerance
CUT
-0.4 mm
Width outer ring, lower tolerance

Temperature range
Tmin
-50 °C
Operating temperature min.
Tmax
150 °C
Operating temperature max.
