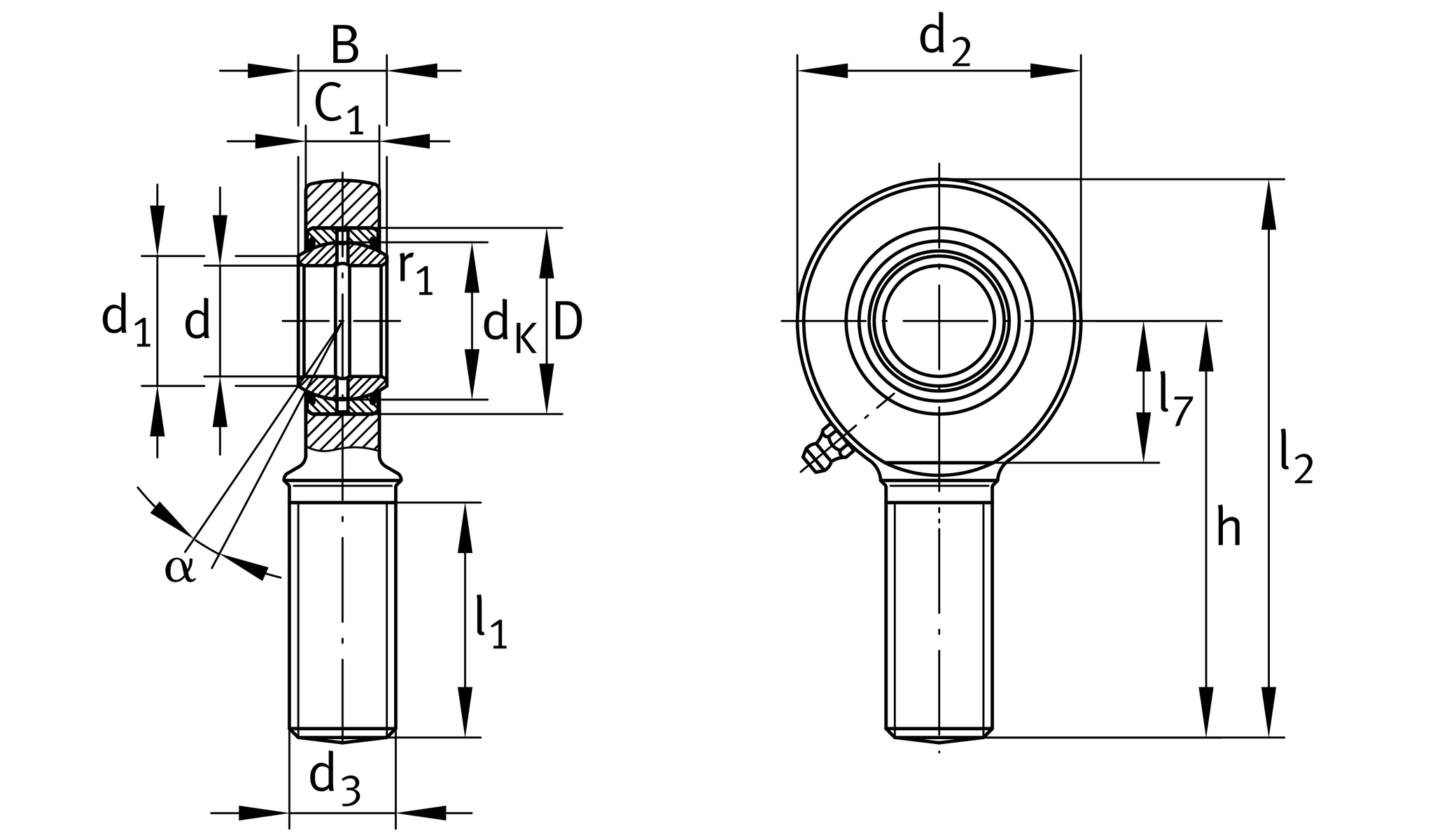

Main Dimensions & Performance Data
| Cr | 48,300 N | Basic dynamic load rating, radial |
| C0r | 88,300 N | Basic static load rating, radial |
| d | 25 mm | Bore diameter bearing |
| D | 42 mm | Outside diameter bearing |
| l2 | 126 mm | Total length external thread head |
| B | 20 mm | Width inner ring |
| d2 | 64 mm | Outer eye diameter |
| ≈m | 0.6 kg | Weight |
Mounting dimensions
| d1 | 29.3 mm | Outer flange diameter inner ring |
| r1smin | 0.6 mm | Edge Spacing |
Dimensions
| dK | 35.5 mm | Ball diameter |
| d3 | M24x2 | Thread size |
| h | 94 mm | Shank Length External thread rod |
| C1 | 17 mm | Width of the rod end |
| α | 7 ° | Tilt angle |
| l1 | 53 mm | Shank Length External thread head |
| l7 | 32 mm | Distance drilling with/shaft start |
| dOT | 0 mm | Bore diameter bearing, upper tolerance |
| dUT | -0.01 mm | Bore diameter bearing, lower tolerance |
| BOT | 0 mm | Width inner ring, upper tolerance |
| BUT | -0.12 mm | Width inner ring, lower tolerance |
| Gr | 0,037 - 0,1 | Radial Clearance |
| Grmax | 0.1 mm | Radial clearance, maximum |
| Grmin | 0.037 mm | Radial clearance, minimum |
Temperature range
| Tmin | -60 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
Your current product variant
| Sealing | Without | |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
