BE25-XL
Radial insert ball bearing BE25-XL
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
25 mm
Bore diameter
D
62 mm
Outside diameter
Cr
14,000 N
Basic dynamic load rating, radial
C0r
7,800 N
Basic static load rating, radial
Cur
410 N
Fatigue load limit, radial
≈m
0.24 kg
Weight

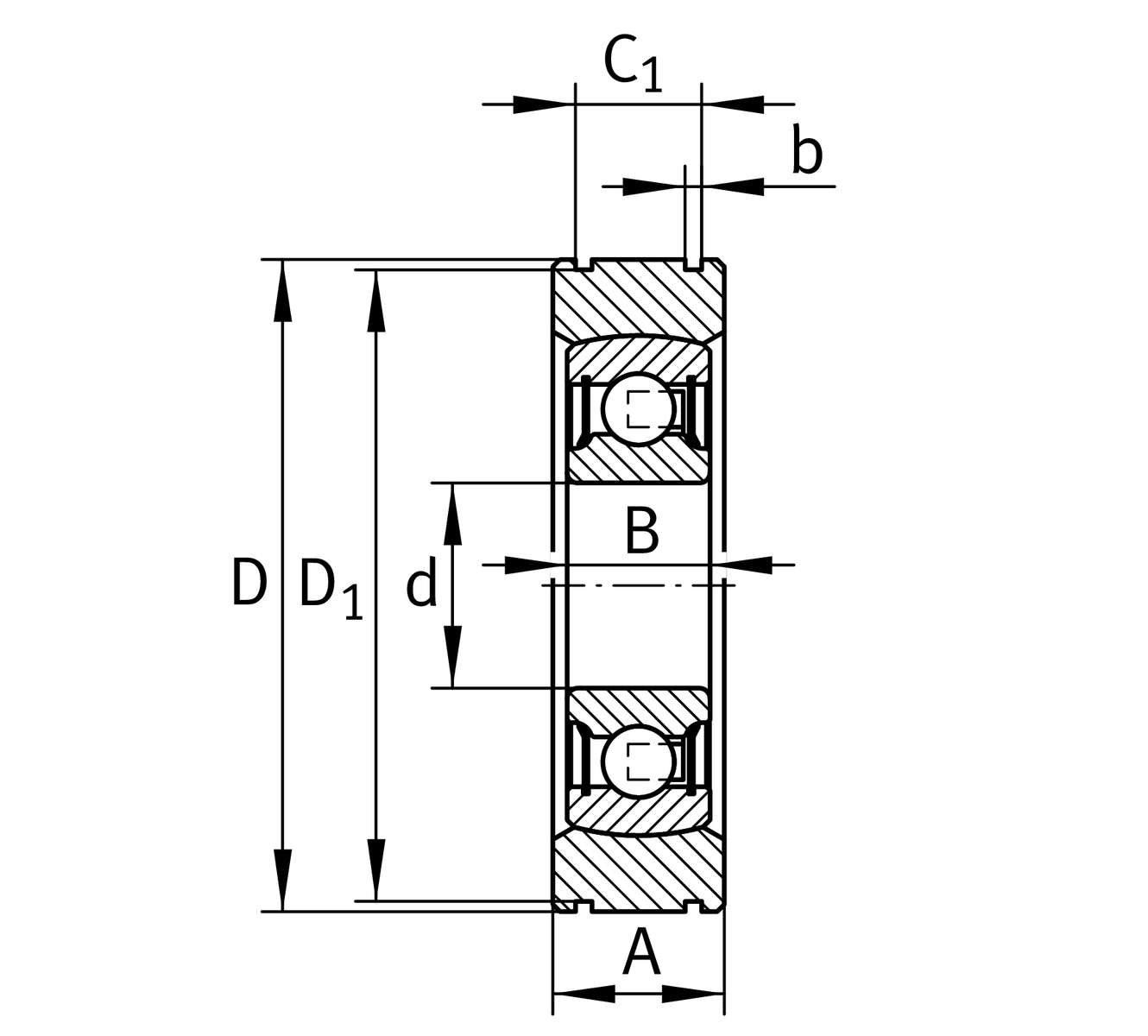

Dimensions
A
17 mm
Width, outer ring
C1
11.2 mm
Distance ring grooves
0.2 mm
Upper distance ring groove tolerance
b
1.9 mm
Width retaining slot
0.3 mm
Nut width upper tolerance
D1
59.6 mm
Diameter of groove
-0.5 mm
Nut diameter lower tolerance

Calculation factors
f0
13.8
Calculation factor

Additional information
205-XL-NPP-B
Bearing designation
