GE25-XL-KTT-B-L402/70-OSE
Radial insert ball bearing GE25-XL-KTT-B-L402/70-OSE
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
25 mm
Bore diameter
DSP
52 mm
Outside diameter
B
34.9 mm
Width
Cr
14,900 N
Basic dynamic load rating, radial
C0r
7,800 N
Basic static load rating, radial
≈m
0.185 kg
Weight

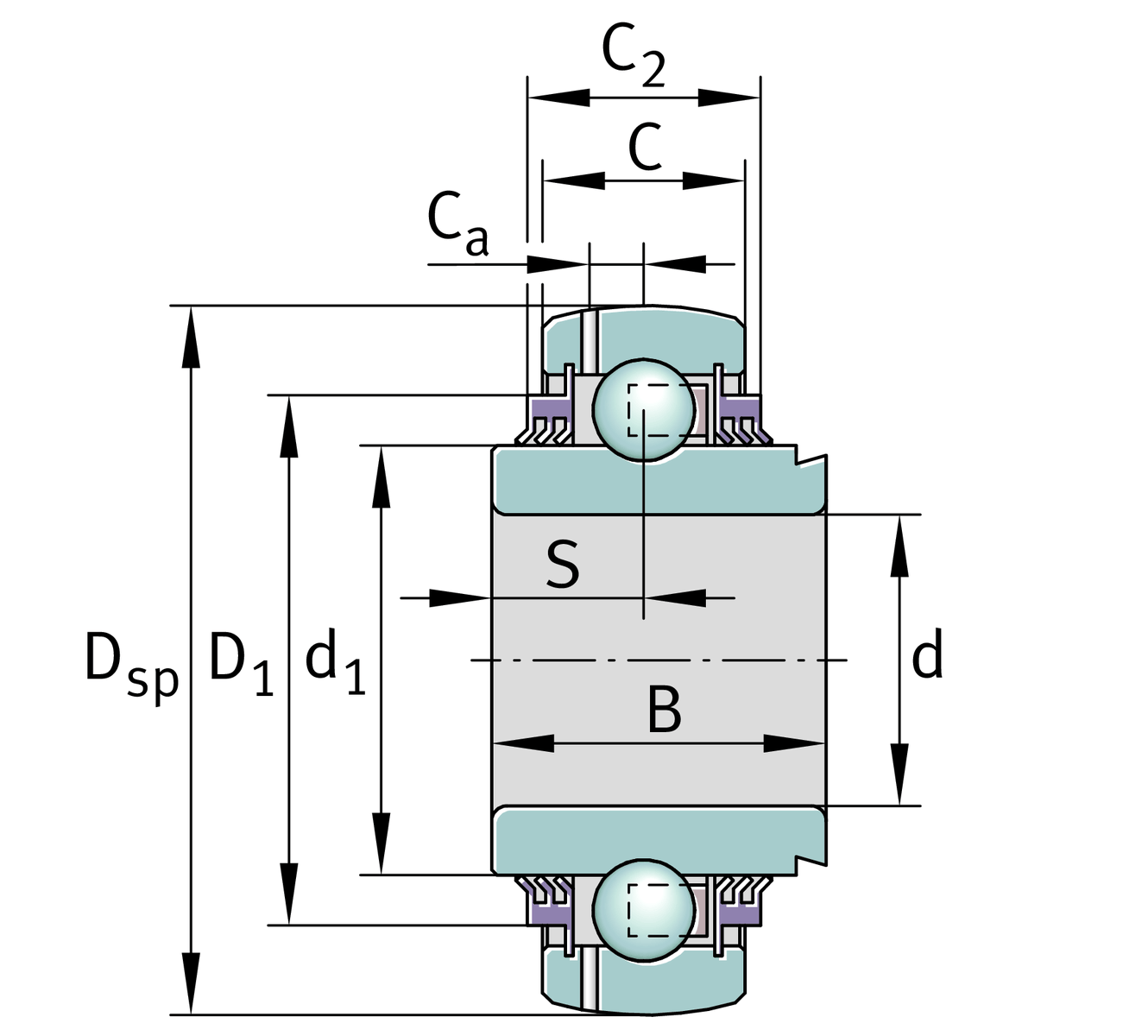

Dimensions
C
15 mm
Width, outer ring
C2
21.4 mm
Sealing total width
S
17.5 mm
Distance raceway
d1
33.821 mm
Rib diameter inner ring
D1
42.5 mm
Outside diameter seal
Ca
3.9 mm
Distance to lubrication hole

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Calculation factors
f0
13.8
Calculation factor

Your current product variant
SealingKTTTriple lip seals on both sides
Shape of outer surfaceB
LubricantL402/70L402/70
Without locking deviceOSEBearing without locking element
