FAG INA Schaeffler
INA
GW40
Shaft support block GW40
Thêm vào yêu cầu báo giá

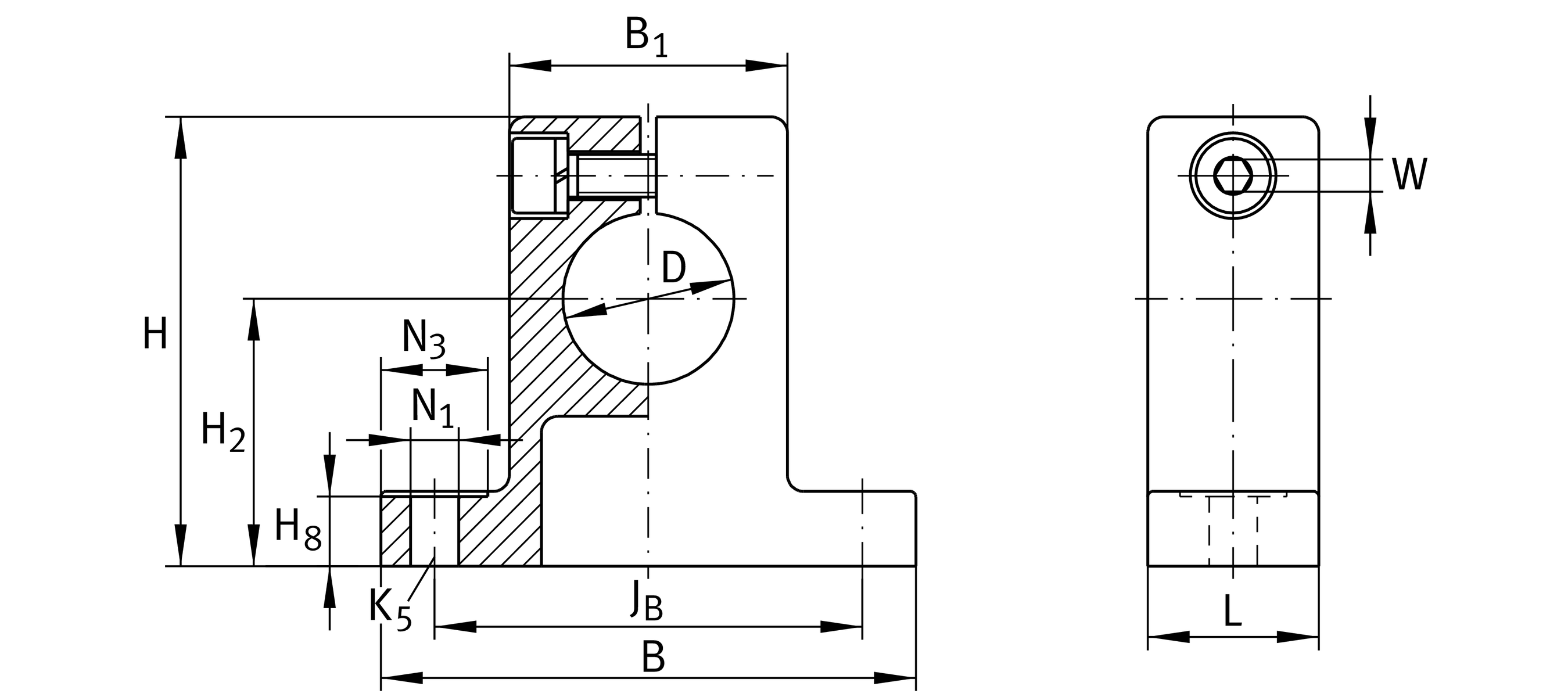

Main Dimensions & Performance Data
D
40 mm
Diameter
B
108 mm
Width
L
32 mm
Length
H
86 mm
Height
≈m
0.67 kg
Weight

Mounting dimensions
JB
86 mm
Mounting Dimension
Tol JB
±0,2
Tolerance
B1
56 mm
Mounting Dimension
H2
50 mm
Mounting Dimension
Tol H2
+0,15
Upper Tolerance
Tol H2
-0,15
Lower tolerance
H8
12 mm
Mounting Dimension
N1
9.1 mm
Mounting Dimension 1
N3
18 mm
Mounting Dimension
K5
M8
Size thread fixing screws above
W
6 mm
Width across Flat 2

Your current product variant
Size code40
