GW25
Shaft support block GW25
Thêm vào yêu cầu báo giá

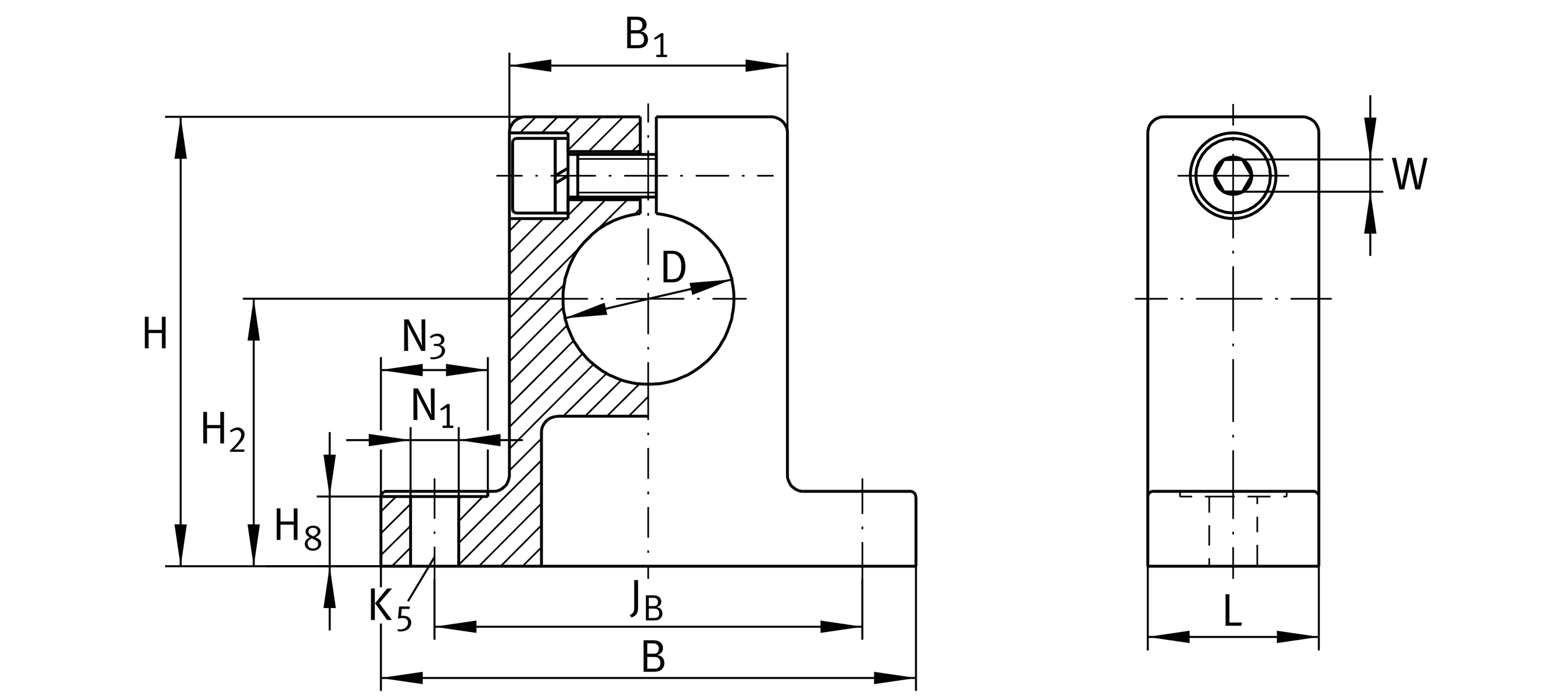

Main Dimensions & Performance Data
D
25 mm
Diameter
B
74 mm
Width
L
25 mm
Length
H
58 mm
Height
≈m
0.26 kg
Weight

Mounting dimensions
JB
60 mm
Mounting Dimension
Tol JB
±0,15
Tolerance
B1
38 mm
Mounting Dimension
H2
35 mm
Mounting Dimension
Tol H2
+0,15
Upper Tolerance
Tol H2
-0,15
Lower tolerance
H8
8.5 mm
Mounting Dimension
N1
5.5 mm
Mounting Dimension 1
N3
11 mm
Mounting Dimension
K5
M5
Size thread fixing screws above
W
4 mm
Width across Flat 2

Your current product variant
Size code25
