GVK104-209-KTT-B
Self-aligning deep groove ball bearings GVK104-209-KTT-B
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
DSP
85 mm
Outside diameter
B
36.5 mm
Width
Cr
34,500 N
Basic dynamic load rating, radial
C0r
20,400 N
Basic static load rating, radial
≈m
0.72 kg
Weight

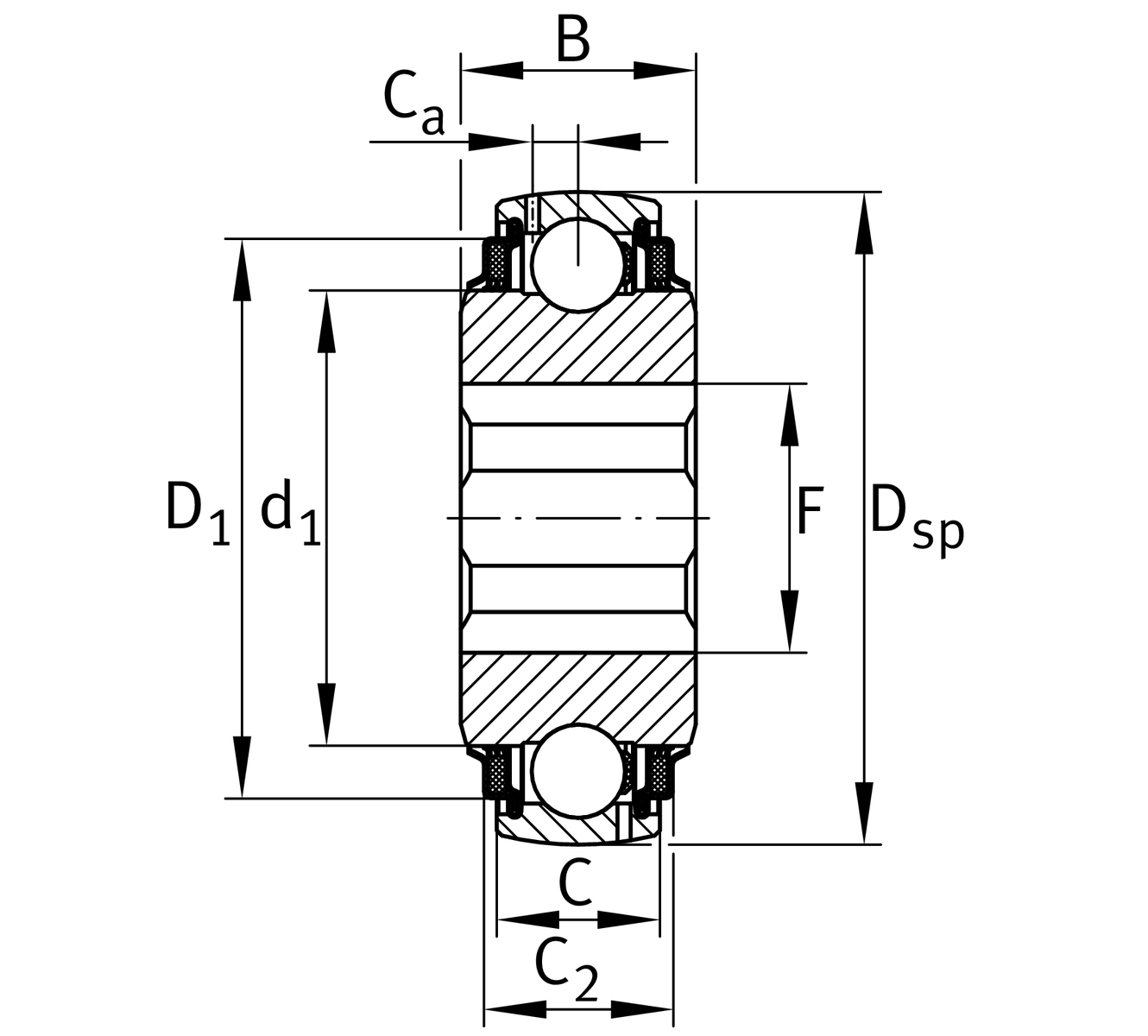

Dimensions
D1
72.2 mm
Outside diameter seal
C
22 mm
Width, outer ring
F
36.4 mm

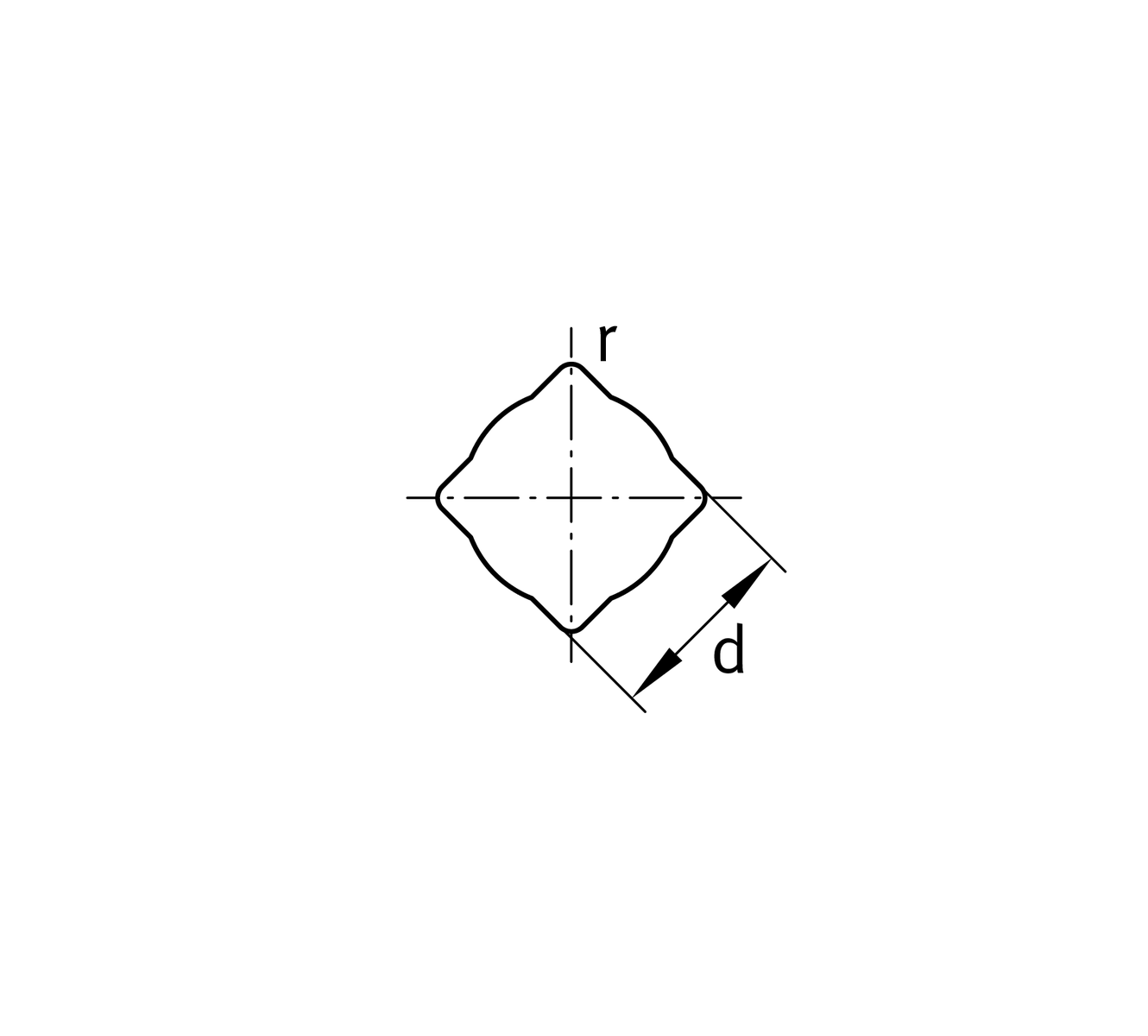

Maximum distance hexagonal bore
r
2.5 mm
Radius hexagonal bore
C2
26.3 mm
Sealing total width
d1
57.9 mm
Rib diameter inner ring
d
31.75 mm
Width of flats
Ca
6.4 mm
Distance to lubrication hole
0.9 mm
Width across flats upper tolerance
d
31.75 mm
Width across flats (Inch)
0.6 mm
Width across flats lower tolerance

Calculation factors
f0
14.1
Calculation factor

Your current product variant
SealingKTTTriple lip seals on both sides
Shape of outer surfaceBSpherical
Deviating ballset209209
