Main Dimensions & Performance Data
| Fw | 22 mm | Under roller diameter |
| D | 30 mm | Outside diameter |
| B | 23 mm | Width |
| Cr | 21,100 N | Basic dynamic load rating, radial |
| C0r | 29,000 N | Basic static load rating, radial |
| Cur | 5,200 N | Fatigue load limit, radial |
| nG | 20,000 1/min | Limiting speed |
| nG Grease | 12,000 1/min | Limiting speed for grease lubrication |
| nϑr | 10,500 1/min | Reference speed |
| ≈m | 42.7 g | Weight |

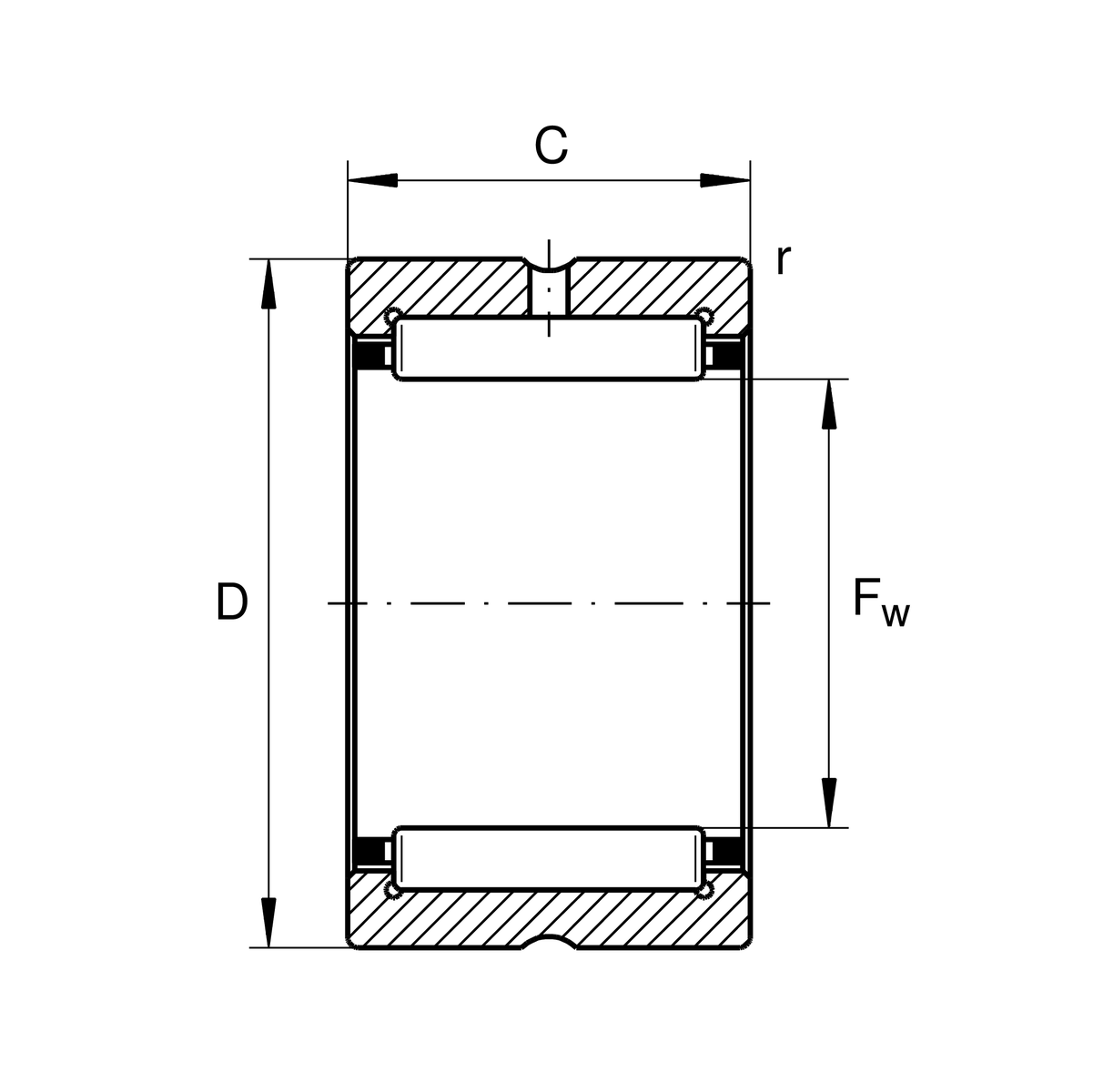

Dimensions
| rmin | 0.3 mm | Minimum chamfer dimension |
| C | 23 mm | Width, outer ring |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
G22X30X4 | Sealing ring | |
SD22X30X4 | Sealing ring 2 |
Your current product variant
| Cage | Standard | Standard |
| Coating | Without | |
| Sealing | Without | |
| Special features | Without | |
| Number of rolling element rows | 1 | Single-row design |
