RNAO22X30X13-XL
Needle roller bearing RNAO22X30X13-XL
Thêm vào yêu cầu báo giá

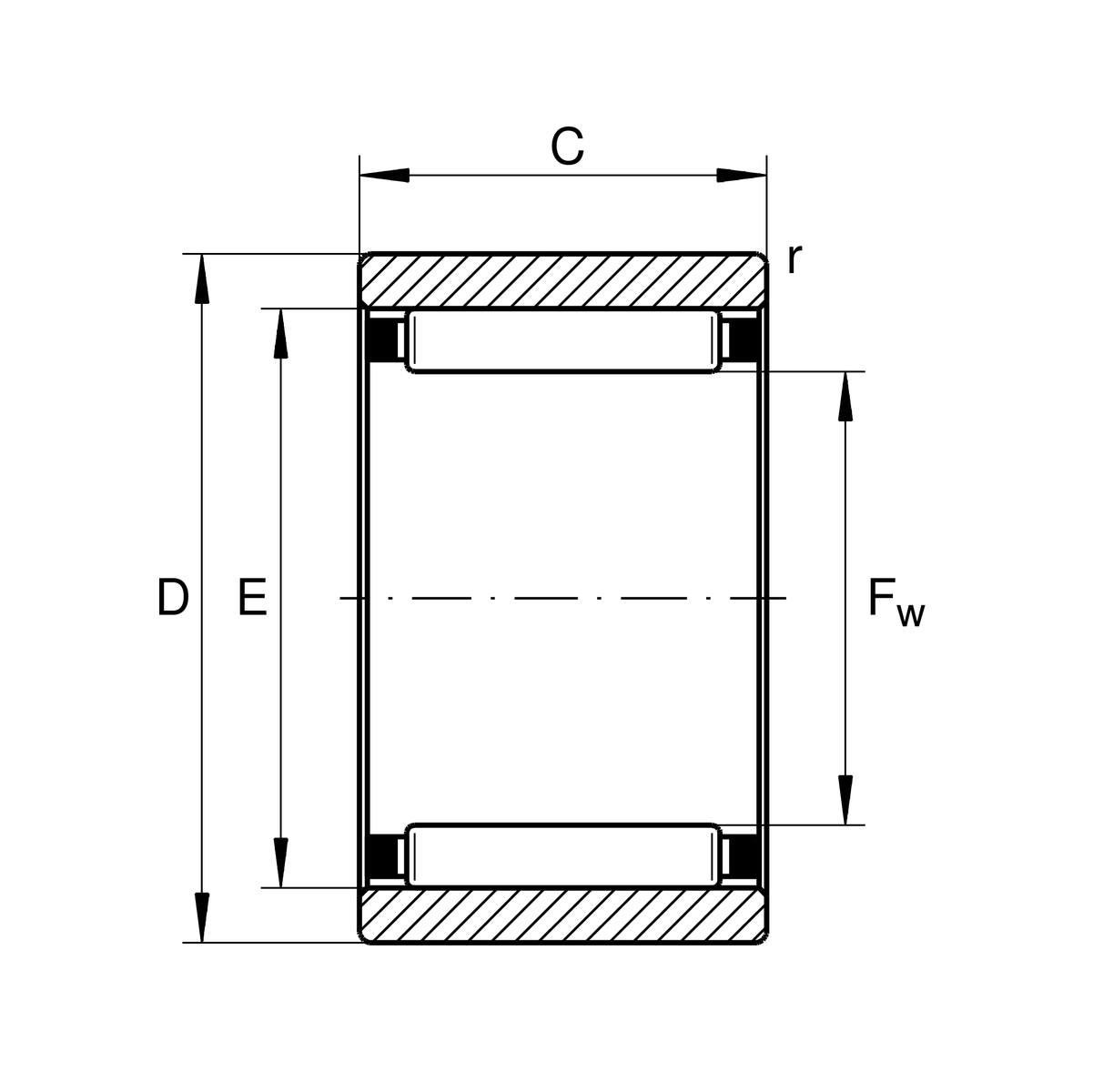

Main Dimensions & Performance Data
Fw
22 mm
Under roller diameter
D
30 mm
Outside diameter
C
13 mm
Width, outer ring
Cr
11,800 N
Basic dynamic load rating, radial
C0r
15,900 N
Basic static load rating, radial
Cur
2,600 N
Fatigue load limit, radial
nG
20,400 1/min
Limiting speed
nϑr
12,400 1/min
Reference speed
≈m
33.32 g
Weight

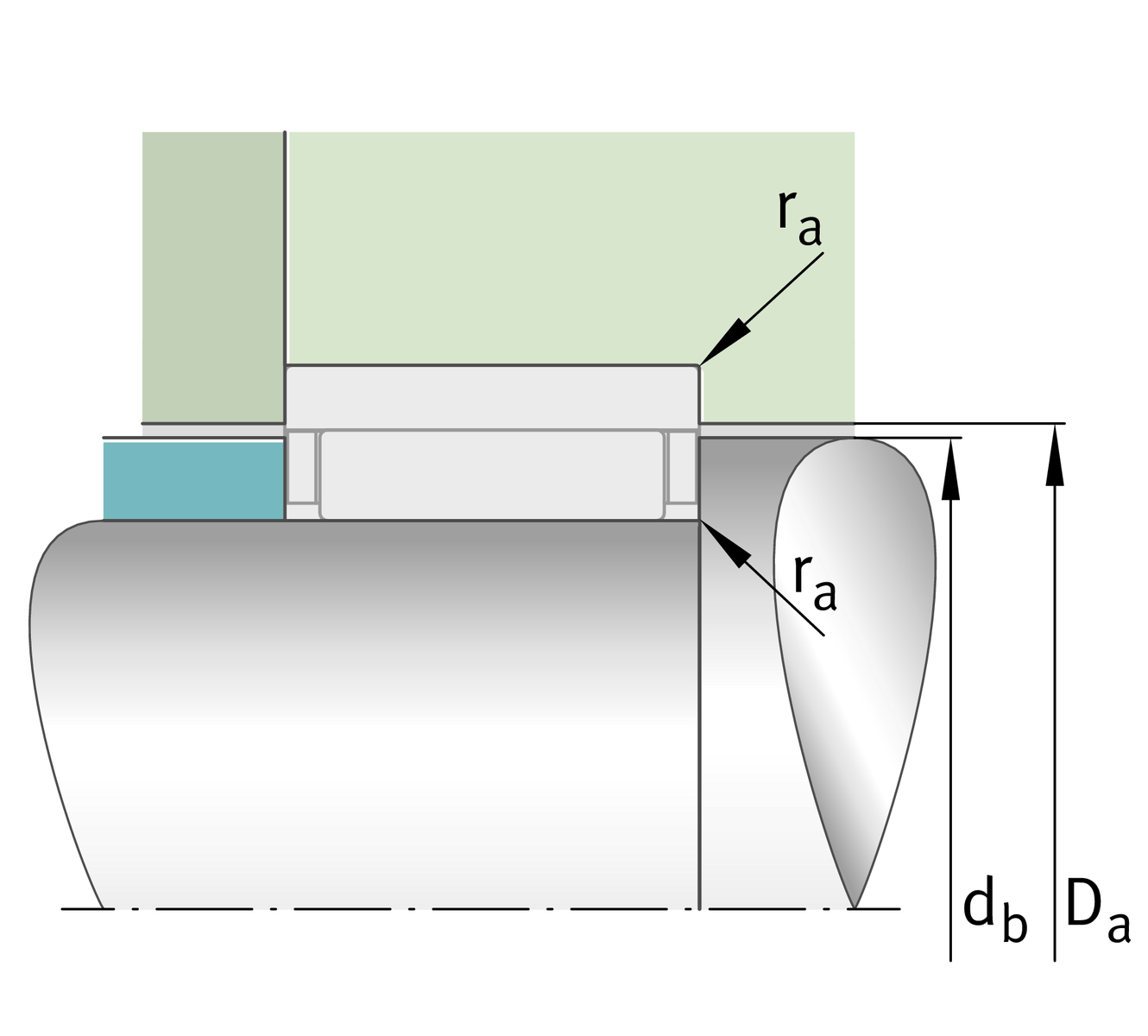

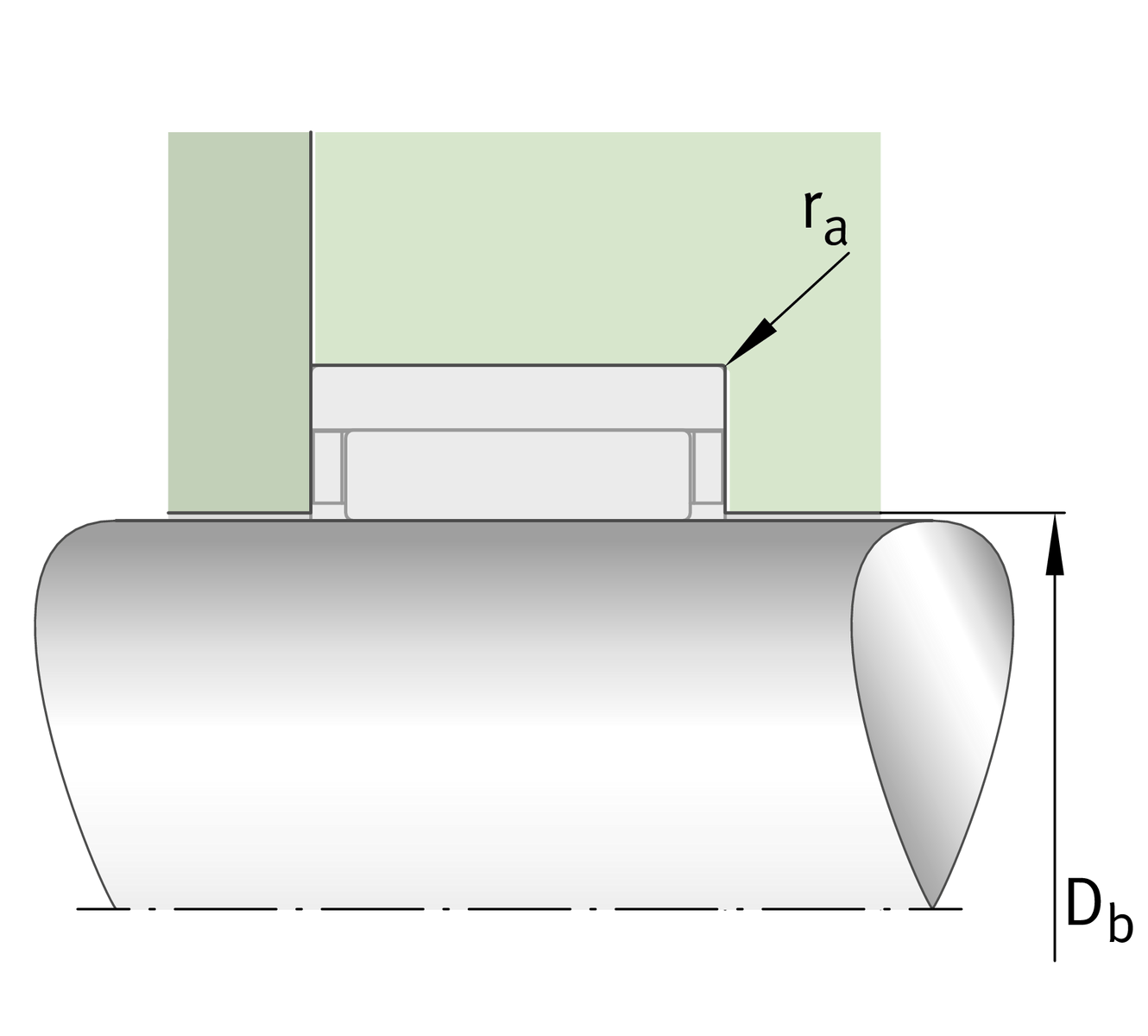

Mounting dimensions
Db
22.4 mm
Shoulder diameter axial guidance NK/housing
db
25.6 mm
Shoulder diameter axial guidance NK/shaft
Da
26.3 mm
Shoulder diameter outer ring
ra max
0.3 mm
Maximum recess radius

Dimensions
E
26 mm
Raceway diameter outer ring
rmin
0.3 mm
Minimum chamfer dimension

Temperature range
Tmin
-30 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
CageStandard
