FAG INA Schaeffler
INA
RMEL20-N
Flanged housing unit RMEL20-N
Thêm vào yêu cầu báo giá

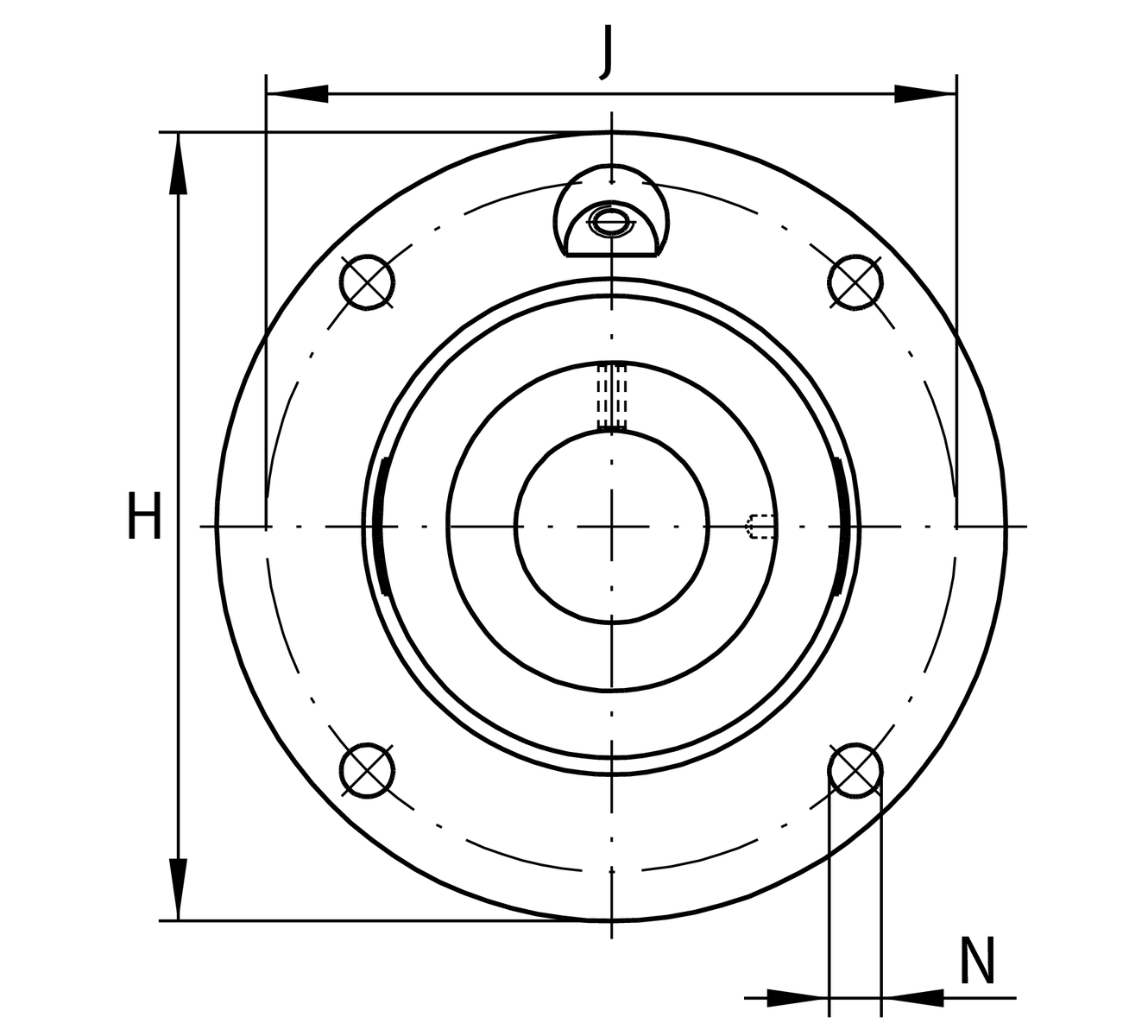

Main Dimensions & Performance Data
d
20 mm
Bore diameter
H
100 mm
Height flange
U
34.1 mm
Total height unit
Cr
13,600 N
Basic dynamic load rating, radial
C0r
6,600 N
Basic static load rating, radial
Cur
335 N
Fatigue load limit, radial
≈m
0.51 kg
Weight

Mounting dimensions
J
78 mm
Pitch circle diameter (holes)
N
9 mm
Fixing bore
Z
62 mm
Diameter spigot
n
4
Number of screwing holes

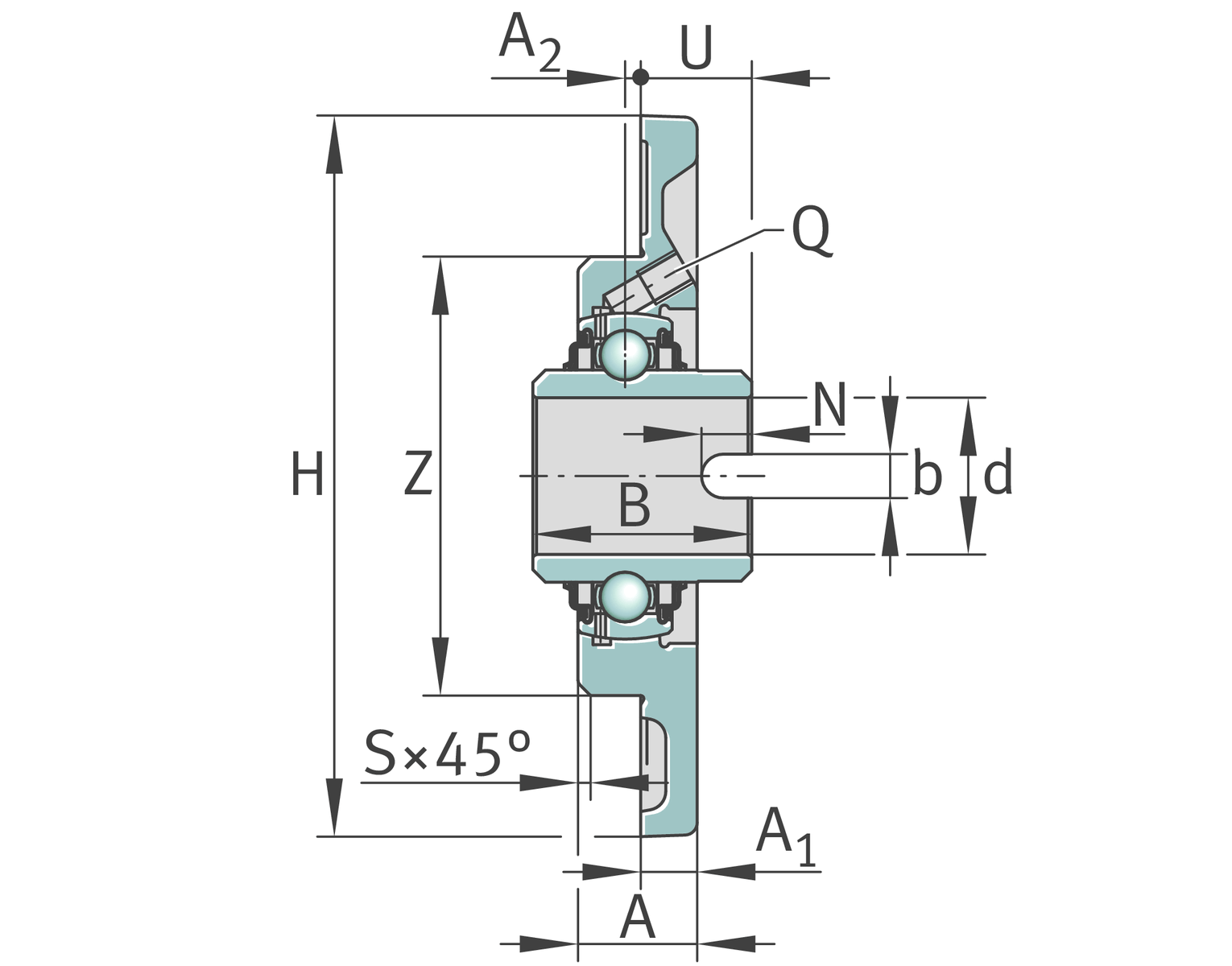

Dimensions
A
17 mm
Height housing
A1
8 mm
Thickness of flange
A2
2 mm
Distance raceway
B
34.1 mm
Width
Q
M6
Connection thread for lubrication

Additional information
1
Number of housings
ME04-N
Housing
GLE20-XL-KRR-B
Bearing designation

Temperature range
Tmin
-40 °C
Operating temperature min.
Tmax
180 °C
Operating temperature max.

Your current product variant
GrooveNCast iron housing with undercut slot for end caps
MaterialGGGrey cast iron
