Take-up housing unit RHEY20-TV-VA

Thêm vào yêu cầu báo giá

Main Dimensions & Performance Data

d	20 mm	Bore diameter
L	99 mm	Length
M	65 mm	Housing total width
≈m	0.316 kg	Weight

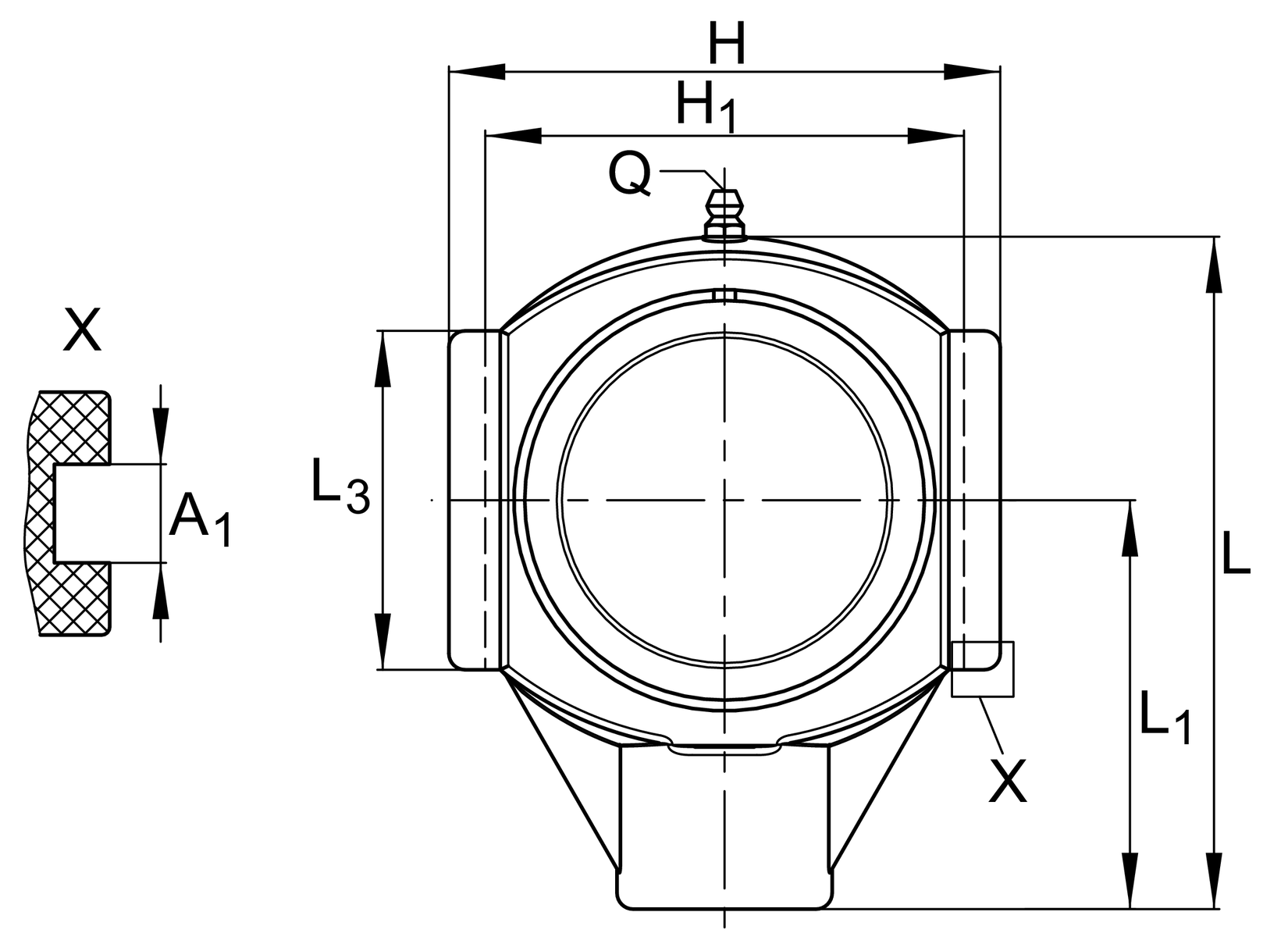

Mounting dimensions

L₁	63.5 mm	Distance shaft axis
L₃	46 mm	Length guidance grooves
K	M16	Thread fixing bore
Q	1/4-28 UNF	Connection thread for lubrication

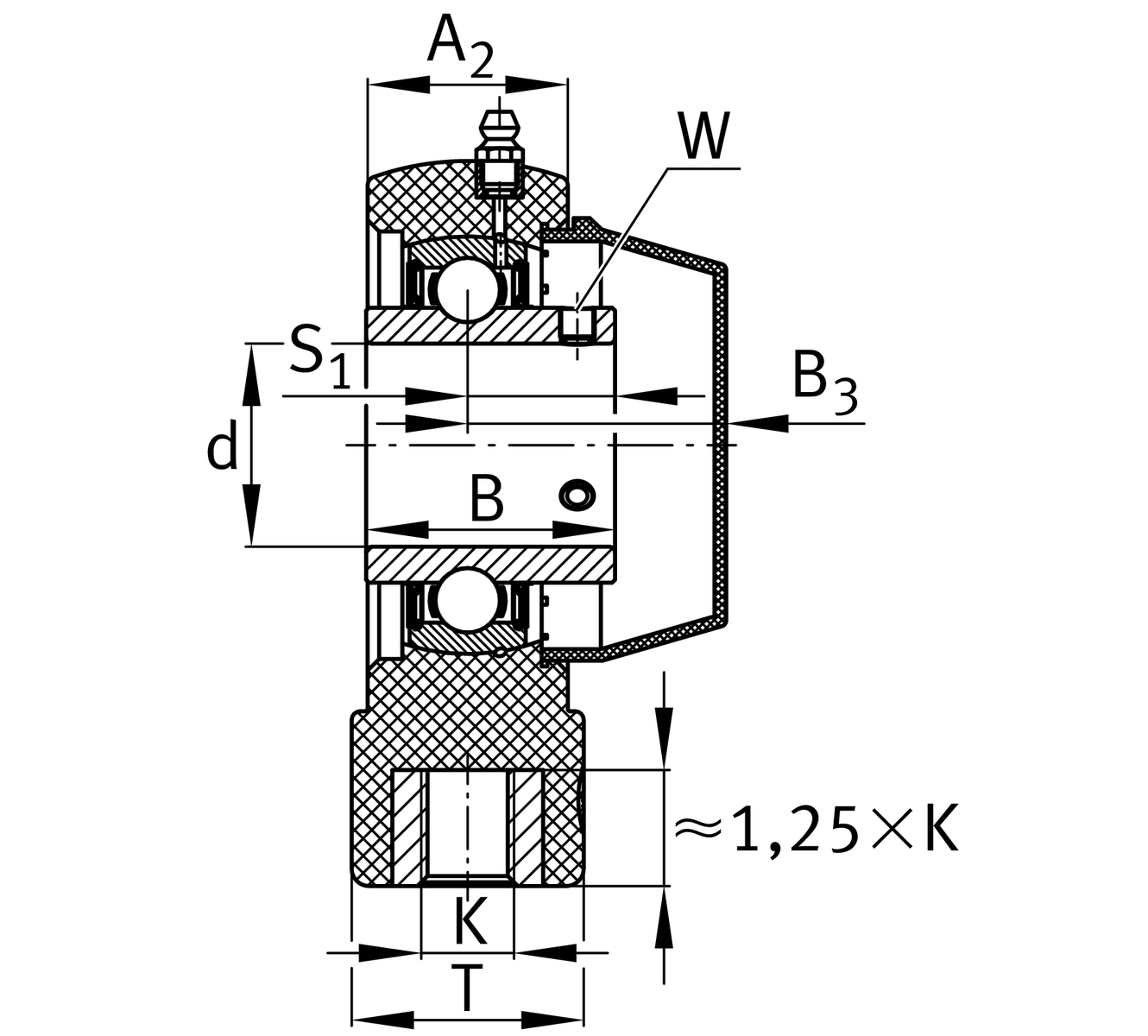

Dimensions

T	36 mm	Height (housing, mounting side)
A₂	27.5 mm	Width housing

Additional information

	HE04-TV	Housing
	GYE20-KRR-B-FA107-VA	Bearing designation
	KASK04-S-G	End cap
	KASK04-S-R-NBR	Open protecting cap

Temperature range

T_min	-20 °C	Operating temperature min.
T_max	80 °C	Operating temperature max.

Your current product variant

Special material	TV	Plastic housing
Corrosion resistant bearing	VA	Corrosion-resistant VA design
Material	TV	Plastic
