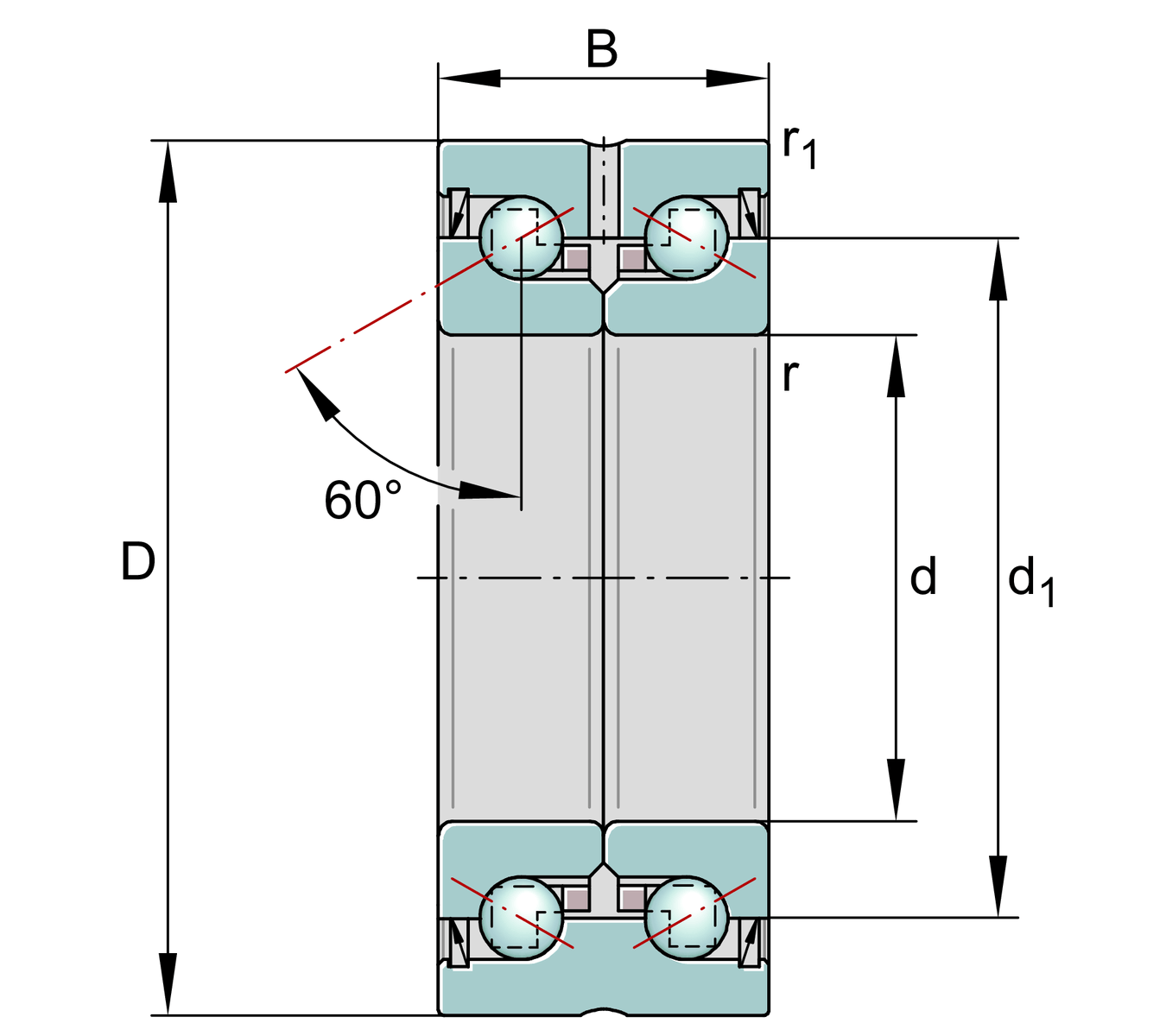

Main Dimensions & Performance Data
| d | 90 mm | Bore diameter |
0 mm | Bore diameter upper tolerance | |
-0.008 mm | Bore diameter lower tolerance | |
| D | 150 mm | Outside diameter |
0 mm | Outside diameter upper tolerance | |
-0.015 mm | Outside diameter lower tolerance | |
| B | 55 mm | Width |
0 mm | Width upper tolerance | |
-0.25 mm | Width lower tolerance | |
| Ca | 149,000 N | Basic dynamic load rating, axial |
| C0a | 395,000 N | Basic static load rating, axial |
| Cua | 21,900 N | Fatigue load limit, axial |
| nG Grease | 3,500 1/min | Limiting speed for grease lubrication |
| nϑ | 2,300 1/min | Thermally safe operating speed |
| MR | 2.3 Nm | Bearing frictional torque |
| ≈m | 3.703 kg | Weight |

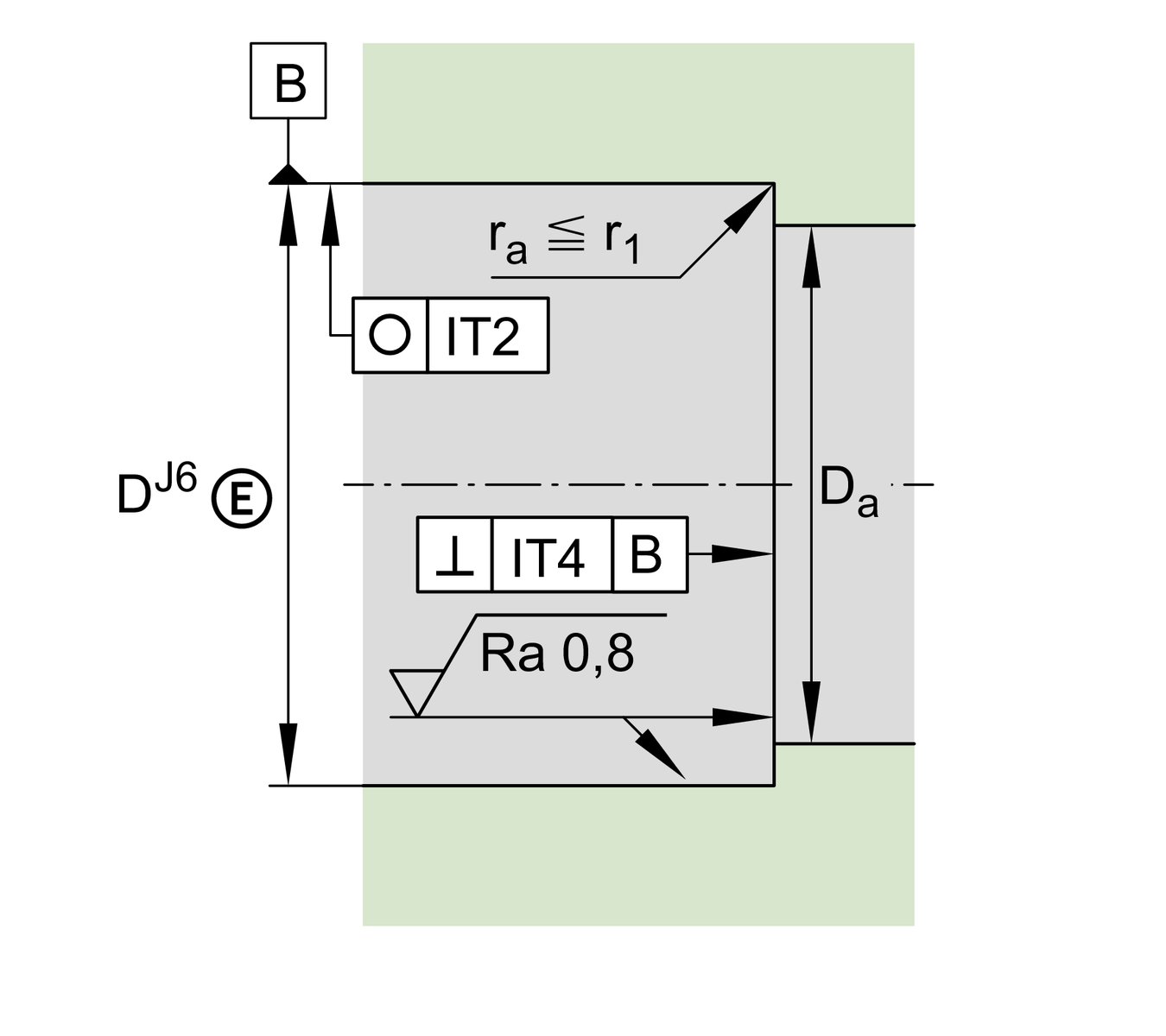

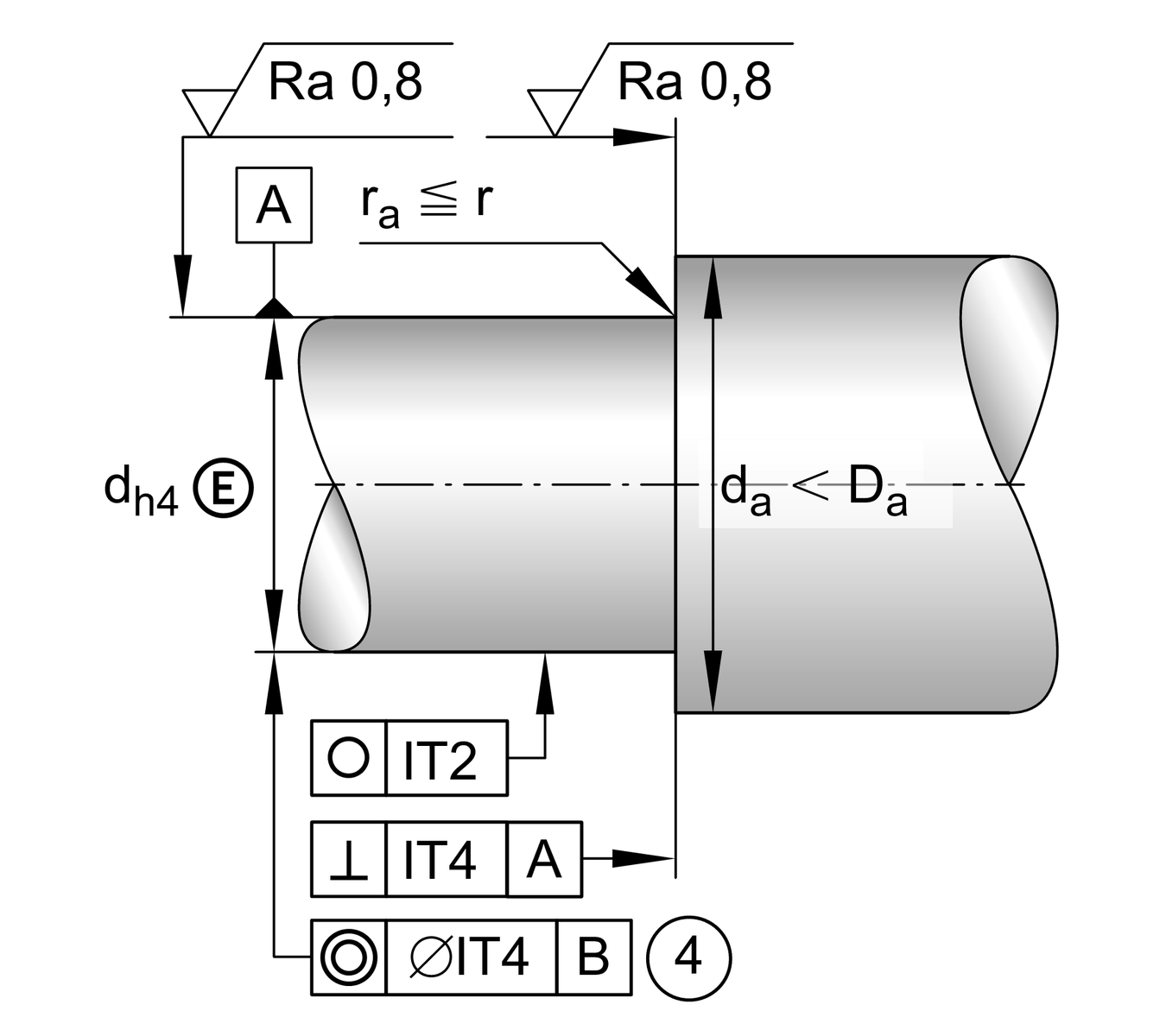

Mounting dimensions
| Da max | 138 mm | Maximum diameter of housing |
| da min | 116 mm | Minimum diameter shaft |
Dimensions
| d1 | 120 mm | Rib diameter inner ring |
| rmin | 0.6 mm | Minimum chamfer dimension |
| r1 min | 0.6 mm | Minimum chamfer dimension |
| α | 60 ° | Contact angle |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
| caL | 1,700 N/µm | Rigidity axial |
| ckL | 4,400 Nm/mrad | Tilting rigidity |
| Mm | 59.9 kg*cm2 | Mass moment of inertia |
3 µm | Axial runout | |
ZMA90/130 | Recommended INA precision locknut for radial locking | |
AM90 | Recommended INA precision locknut for axial locking | |
| MA | 200 Nm | Tightening torque for the recommended INA precision locknut |
22,731 N | Required locknut force axial |
Your current product variant
| Sealing | 2Z | Minimal gap seal on both sides |
| Tolerance class | Standard |
