RCSMB20/65-XL-FA106
Radial insert ball bearing RCSMB20/65-XL-FA106
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
20 mm
Bore diameter
D
65.1 mm
Outside diameter
C
25.4 mm
Width, outer ring
B1
31 mm
Locking collar total width
Cr
12,800 N
Basic dynamic load rating, radial
C0r
6,600 N
Basic static load rating, radial
Cur
315 N
Fatigue load limit, radial
1,200 N
Load carrying capacity (rubber interliner)
≈m
0.245 kg
Weight

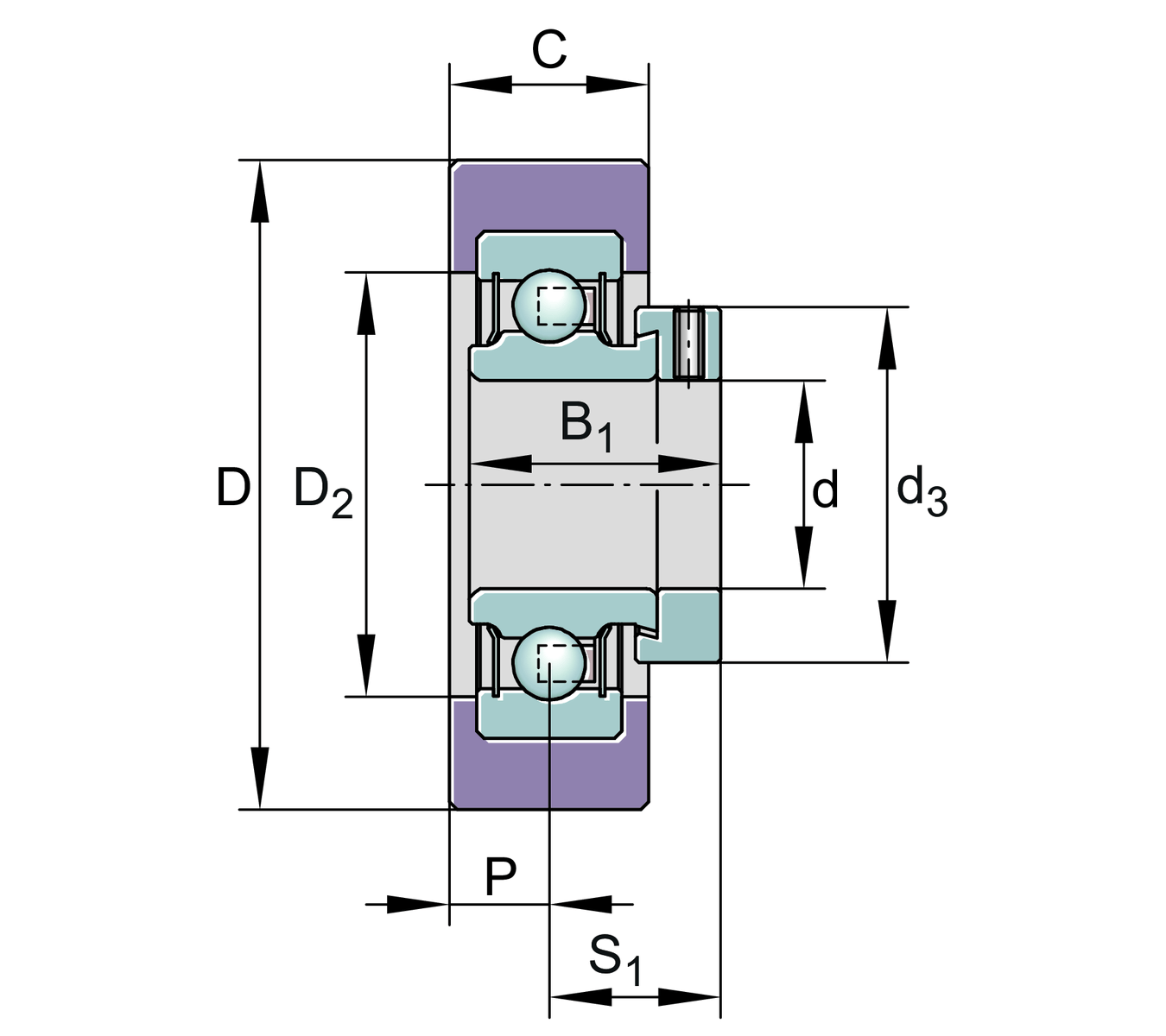

Dimensions
S1
23.5 mm
Distance raceway to locking collar
D2
40 mm
Flange diameter rubber interliner
d3
33 mm
Outside diameter locking collar/locknut
P
12.7 mm
Distance raceway of rubber interliner to face side

Calculation factors
f0
13.1
Calculation factor

Additional information
RAE20-XL-NPP-FA106
Bearing designation
Shore A
70 °
Hardness rubber interliner

Your current product variant
Manufacturing instructionFA106Bearing subjected to special noise testing
