Main Dimensions & Performance Data
| Fw | 90 mm | Under roller diameter |
| D | 110 mm | Outside diameter |
| Cr | 153,000 N | Basic dynamic load rating, radial |
| C0r | 300,000 N | Basic static load rating, radial |
| Cur | 54,000 N | Fatigue load limit, radial |
| nG | 5,100 1/min | Limiting speed |
| nG Grease | 3,050 1/min | Limiting speed for grease lubrication |
| nϑr | 3,050 1/min | Reference speed |
| ≈m | 941.8 g | Weight |

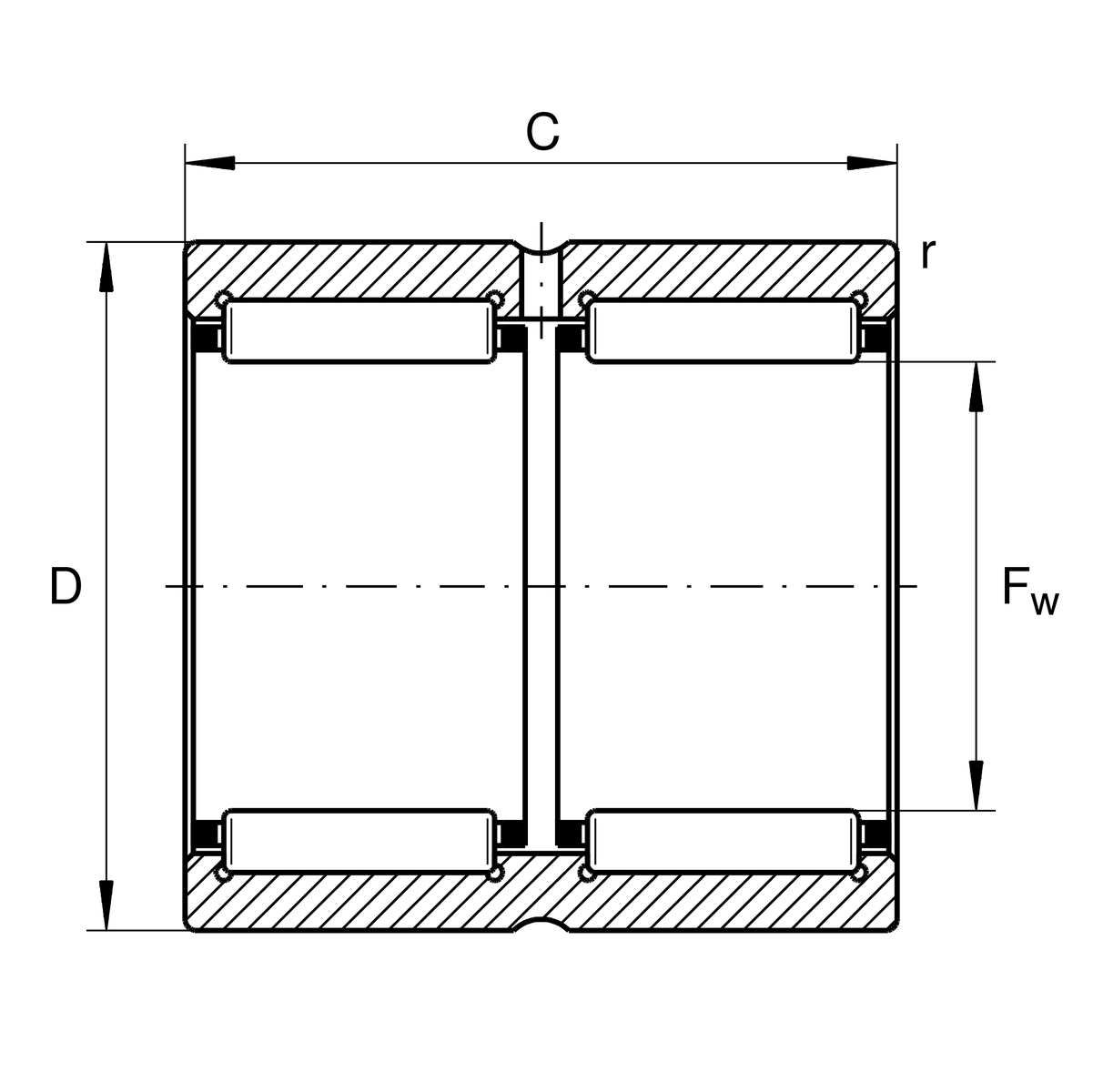

Dimensions
| rmin | 1 mm | Minimum chamfer dimension |
| C | 54 mm | Width, outer ring |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Cage | Standard | Standard |
| Lubrication hole | with | with |
| Coating | Without | |
| Sealing | Without | |
| Special features | Without | |
| Number of rolling element rows | ZW | Double-row design |
