RSHEY20-TV-VA-FD
Plummer block housing unit RSHEY20-TV-VA-FD
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
20 mm
Bore diameter
L
72.8 mm
Length
H2
66 mm
Height
≈m
0.27 kg
Weight

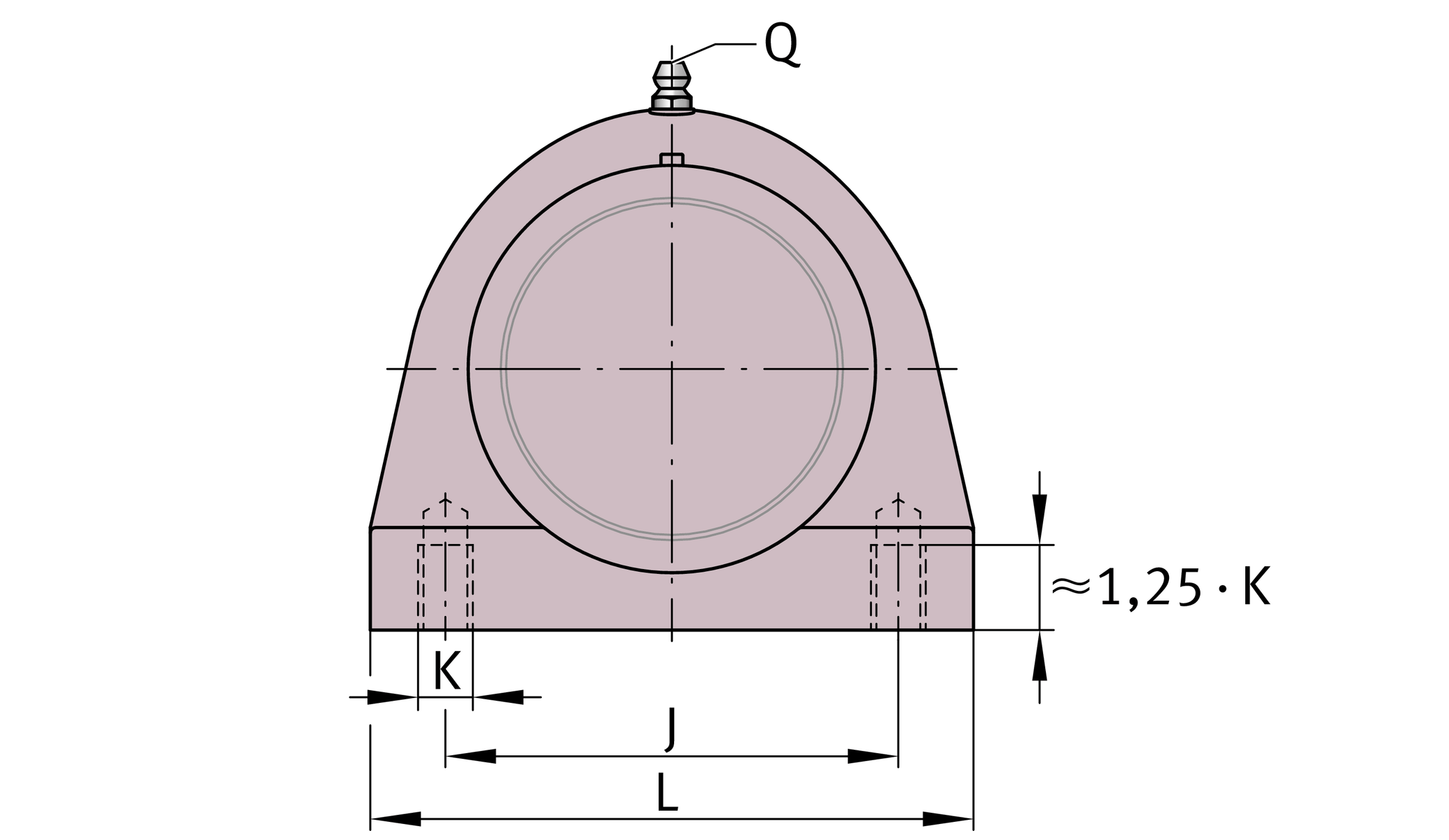

Mounting dimensions
J
50.8 mm
Distance fixing bore
K
M8
Thread fixing bore
W
2.5 mm
Width of flats

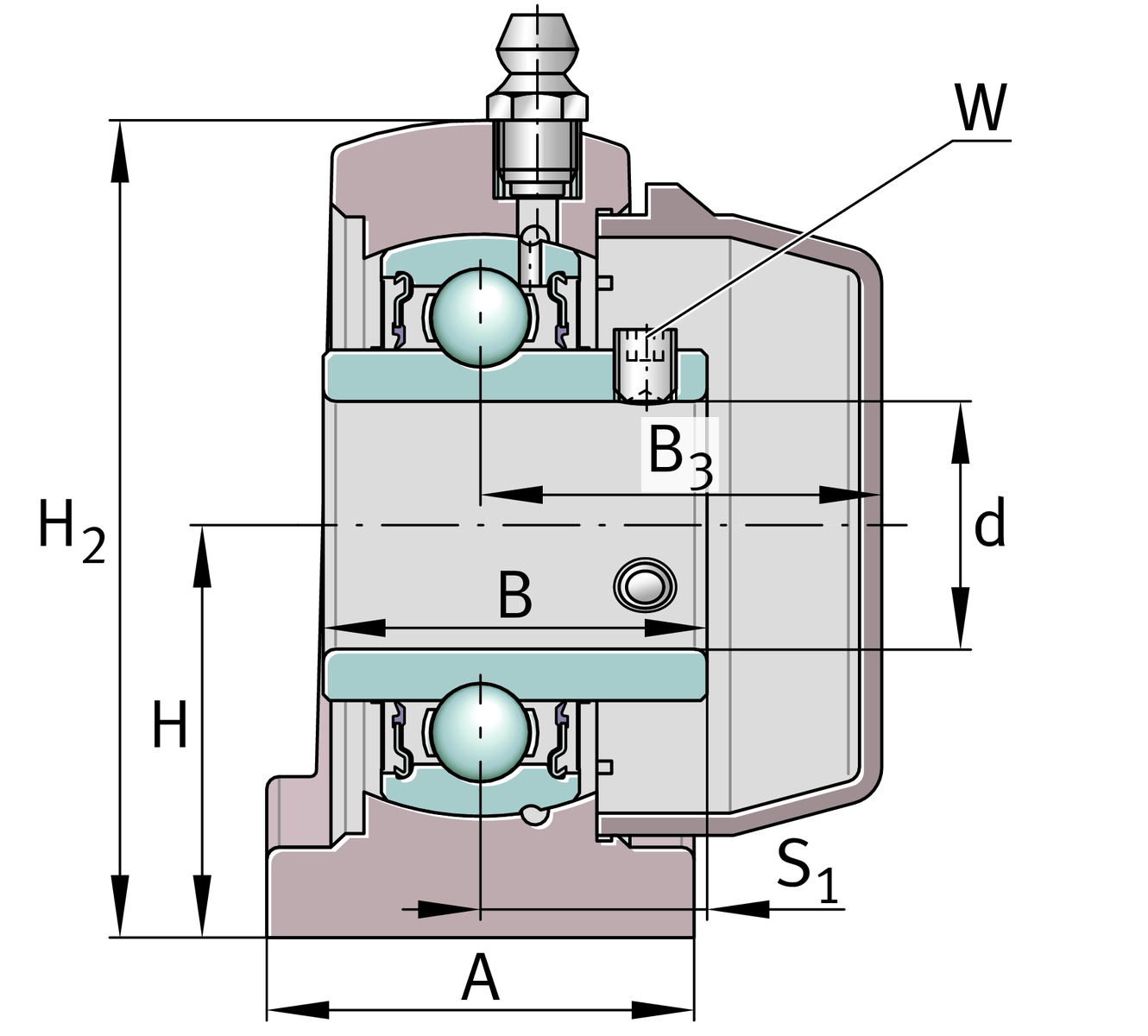

Dimensions
H
33.3 mm
Distance shaft axis
A
34.5 mm
Width (base)
B
31 mm
Width
B3
32.35 mm
Distance housing centre to cap end
S1
18.3 mm
Distance raceway to locking collar
Q
1/4"-28 UNF
Connection thread for lubrication

Additional information
GEH.SHE04-TV-WHT
Housing
GYE20-KRR-B-FA107-VA-FD
Bearing designation
KASK04-S-G-WHT
End cap
KASK04-S-R-NBR-WHT
Open protecting cap

Temperature range
Tmin
-30 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Your current product variant
Special materialTVPlastic housing
Corrosion resistant bearingVACorrosion-resistant VA design
MaterialTV-FDPlastic for food industry
