FLCTEY20-XL
Flanged housing unit FLCTEY20-XL
Thêm vào yêu cầu báo giá

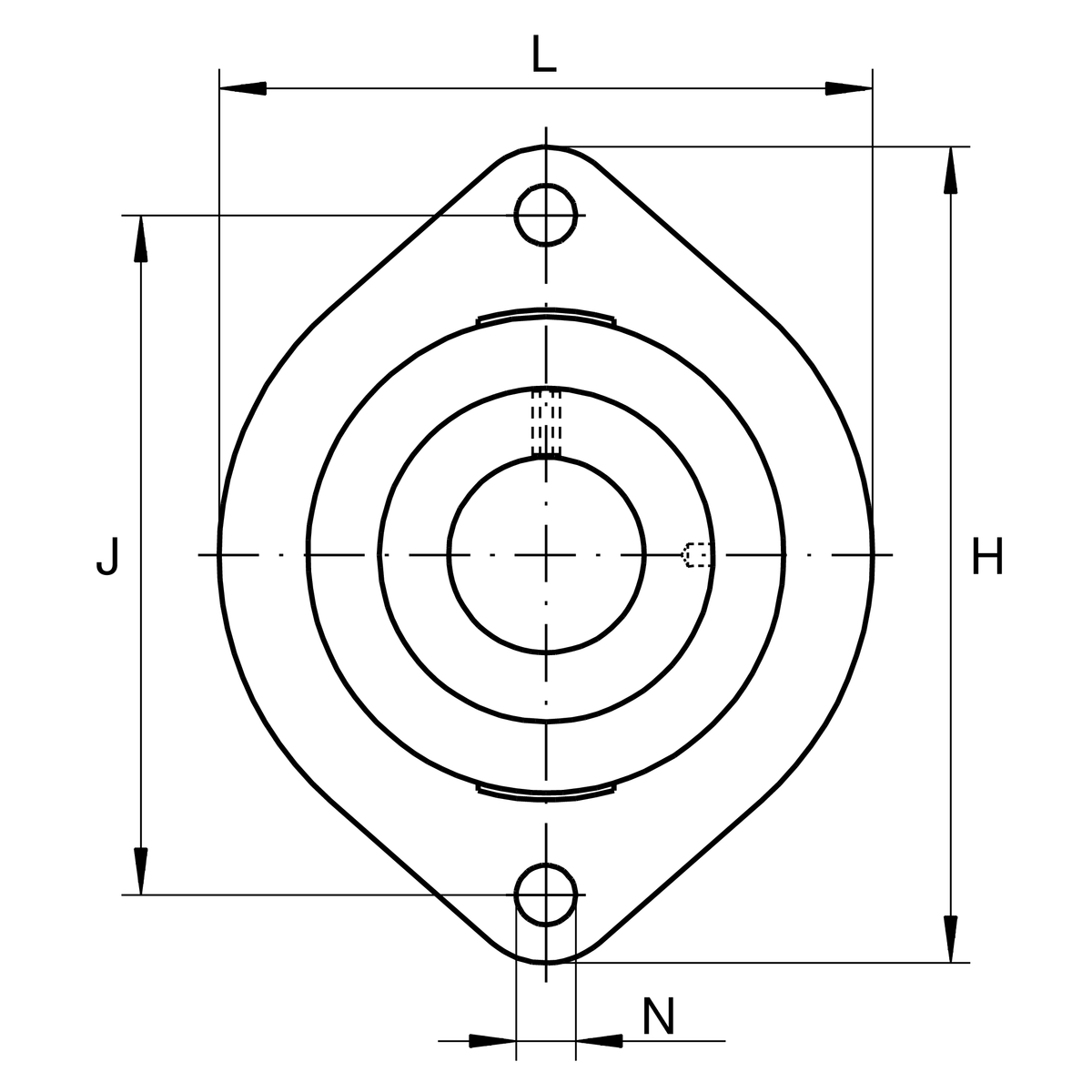

Main Dimensions & Performance Data
d
20 mm
Bore diameter
L
66.5 mm
Flange width
H
90.5 mm
Height flange
U
27 mm
Total height unit
Cr
13,600 N
Basic dynamic load rating, radial
C0r
6,600 N
Basic static load rating, radial
Cur
345 N
Fatigue load limit, radial
≈m
0.31 kg
Weight

Mounting dimensions
J
71.4 mm
Distance fixing bore
J
71.4 mm
Pitch circle diameter (holes)
N
9 mm
Fixing bore
n
2
Number of screwing holes

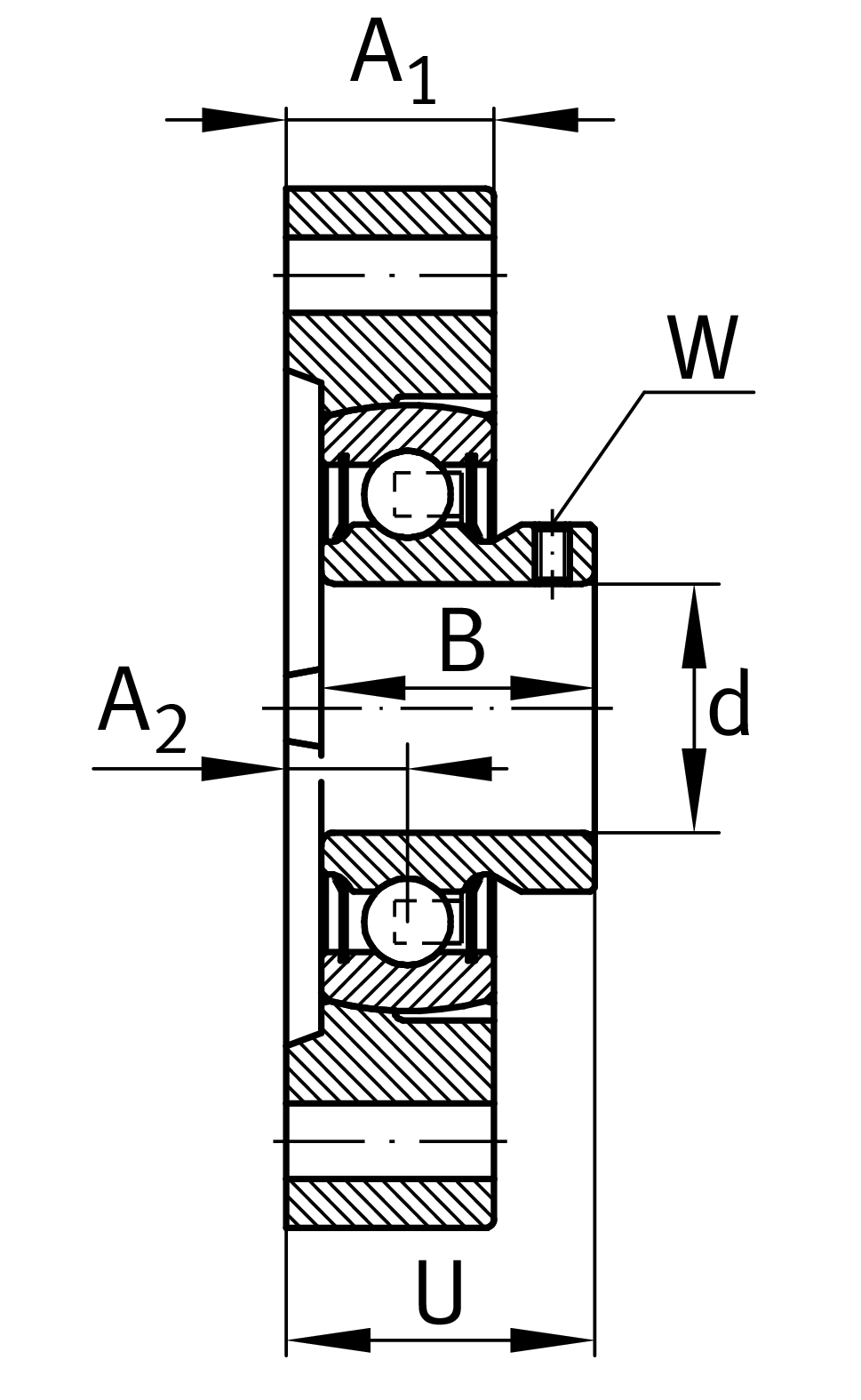

Dimensions
A1
17 mm
Thickness of flange
A2
9.5 mm
Distance raceway
d3
33 mm
Outside diameter eccentric locking collar

Additional information
1
Number of housings
LCTE04
Housing
AY20-XL-NPP-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
