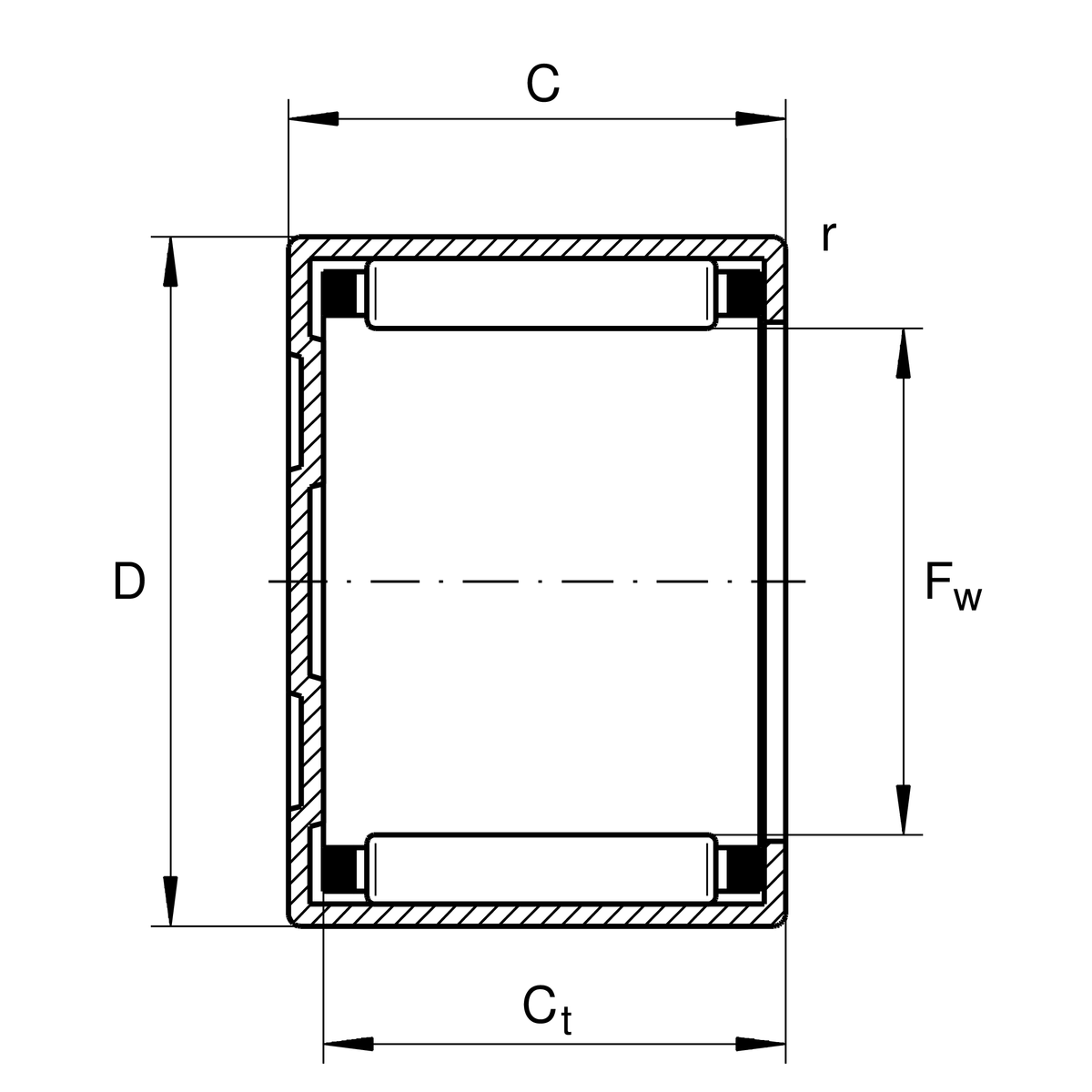

Main Dimensions & Performance Data
| Fw | 20 mm | Under roller diameter |
| D | 26 mm | Outside diameter |
| C | 16 mm | Width, outer ring |
| Cr | 12,700 N | Basic dynamic load rating, radial |
| C0r | 20,100 N | Basic static load rating, radial |
| Cur | 2,550 N | Fatigue load limit, radial |
| nG Grease | 7,600 1/min | Limiting speed for grease lubrication |
| nG | 12,700 1/min | Limiting speed |
| nϑr | 9,300 1/min | Reference speed |
| ≈m | 22.3 g | Weight |
Dimensions
| rmin | 0.8 mm | Minimum chamfer dimension |
| Ct min | 13.3 mm | Minimum width to base of drawn cup with closed end |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 140 °C | Operating temperature max. |
Additional information
SD20X26X4 | Sealing ring | |
G20X26X4 | Sealing ring 2 | |
LR17X20X16,5 | Suitable inner rings LR | |
IR17X20X16-XL | Suitable inner rings IR |
Your current product variant
| Coating | Without | |
| Sealing | Without |
