Main Dimensions & Performance Data
| d | 120 mm | Bore diameter |
| D | 250 mm | Outside diameter |
| T | 78 mm | Height |
| Ca | 1,170,000 N | Basic dynamic load rating, axial |
| C0a | 4,000,000 N | Basic static load rating, axial |
| Cua | 395,000 N | Fatigue load limit, axial |
| nG | 1,560 1/min | Limiting speed |
| nϑr | 580 1/min | Reference speed |
| ≈m | 21.77 kg | Weight |

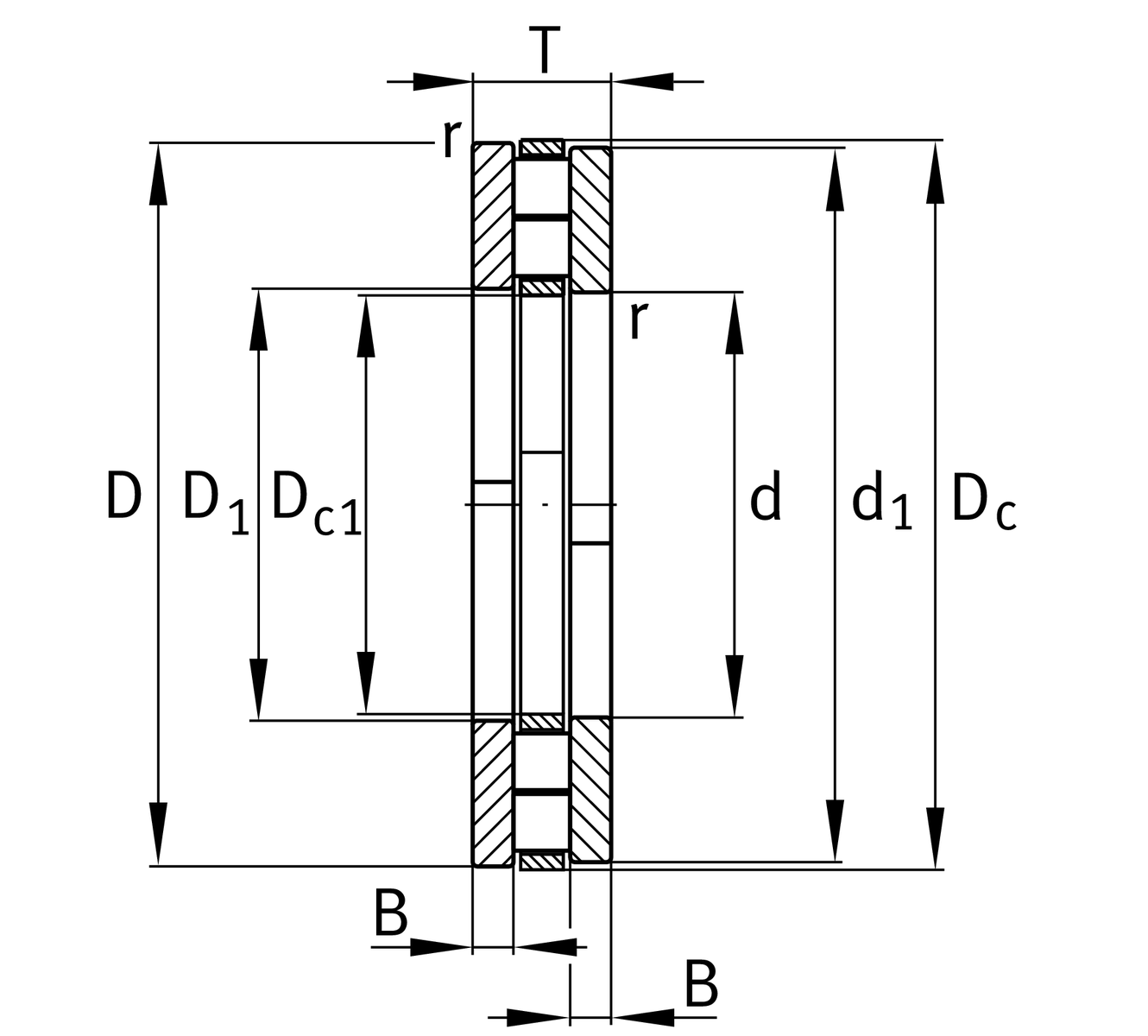

Dimensions
| D1 | 123 mm | Bore diameter housing washer |
| d1 | 250 mm | Rip diameter shaft washer |
| rmin | 4 mm | Minimum chamfer dimension |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
K89424-M | Axial roller and cage assembly | |
GS89424 | Housing Washer | |
WS89424 | Shaft washer |
