RUSV30069-KS
Linear recirculating roller bearing unit RUSV30069-KS
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
L
82 mm
Length total
B
27 mm
Width
H
30 mm
Height
C
42,000 N
Basic dynamic load capacity
C0
66,000 N
Basic static load capacity
≈m
324.36 g
Weight

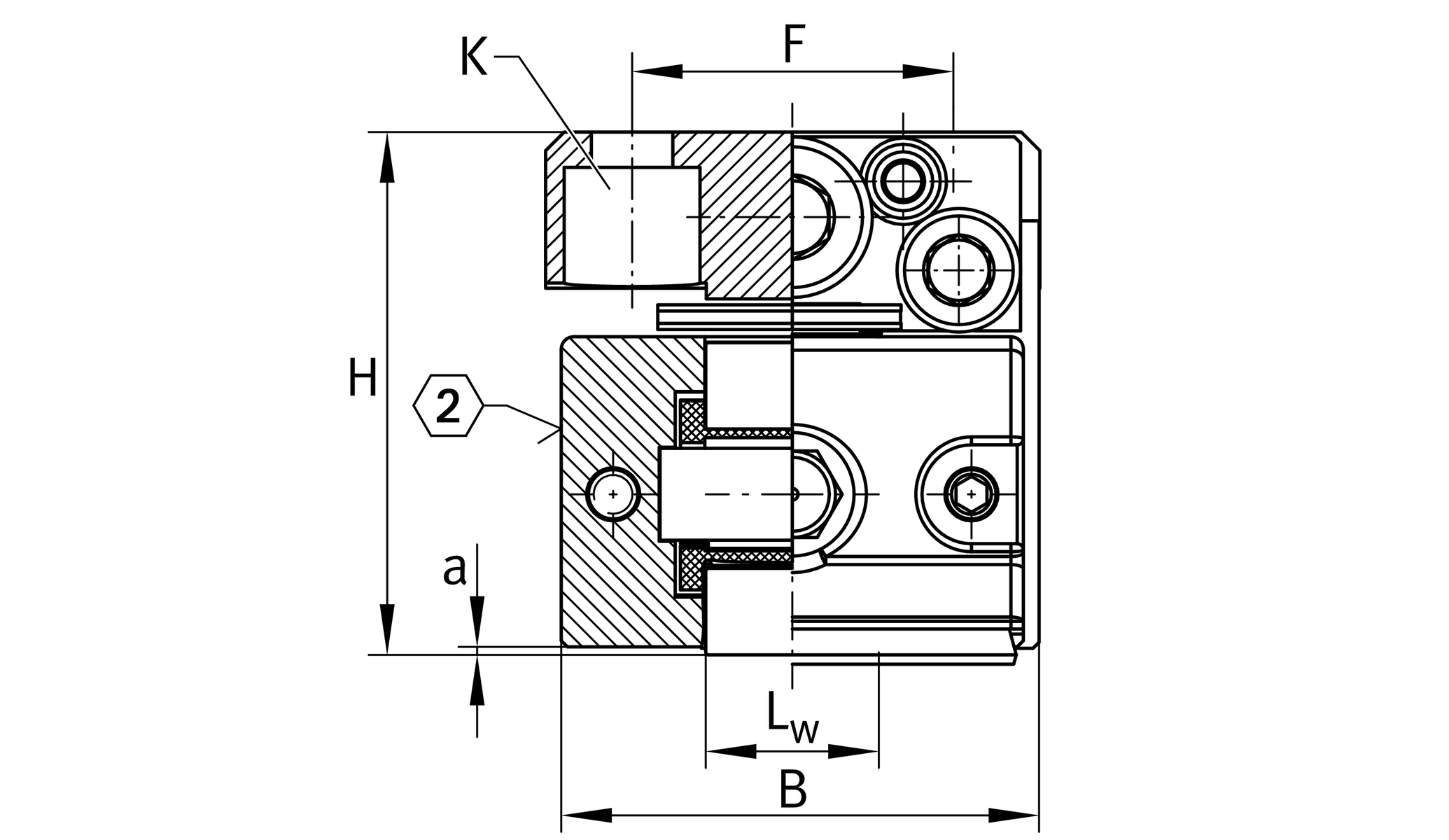

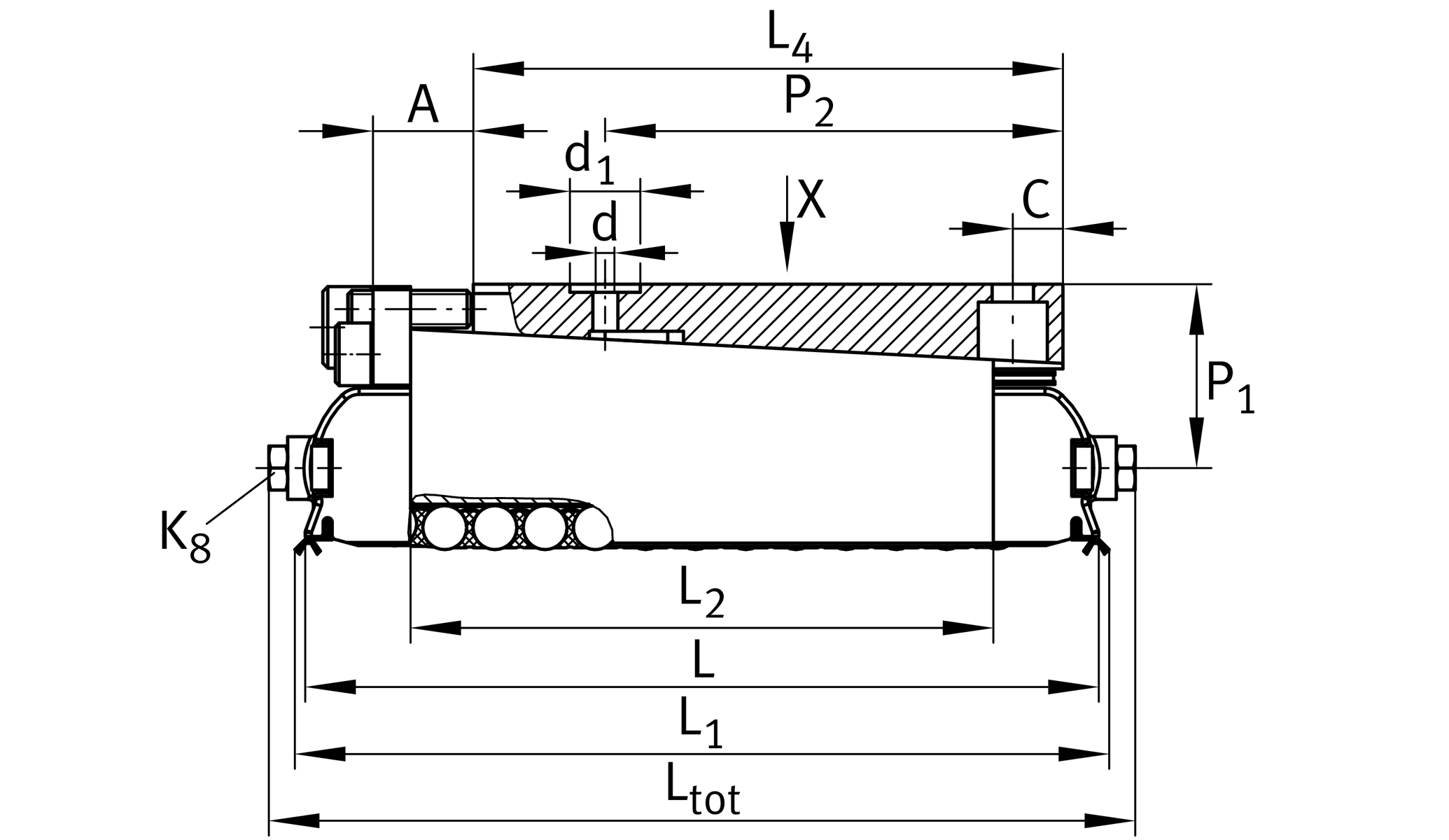

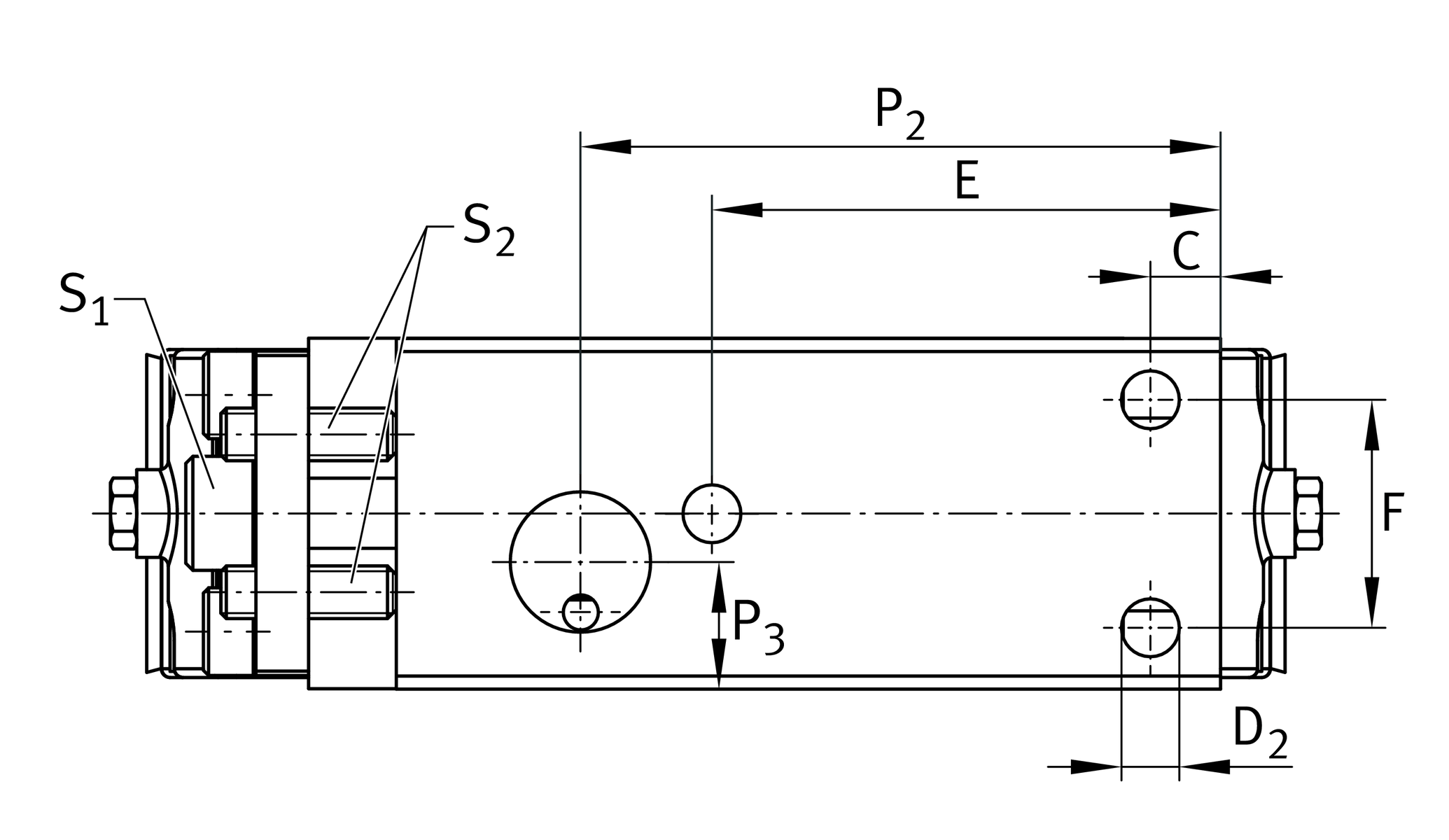

Mounting dimensions
L
69 mm
L1
75 mm
L3
43.5 mm
L4
45 mm
a
0.3 mm
LW
10 mm
C
5 mm
E
25 mm
Mounting dimension
F
19 mm

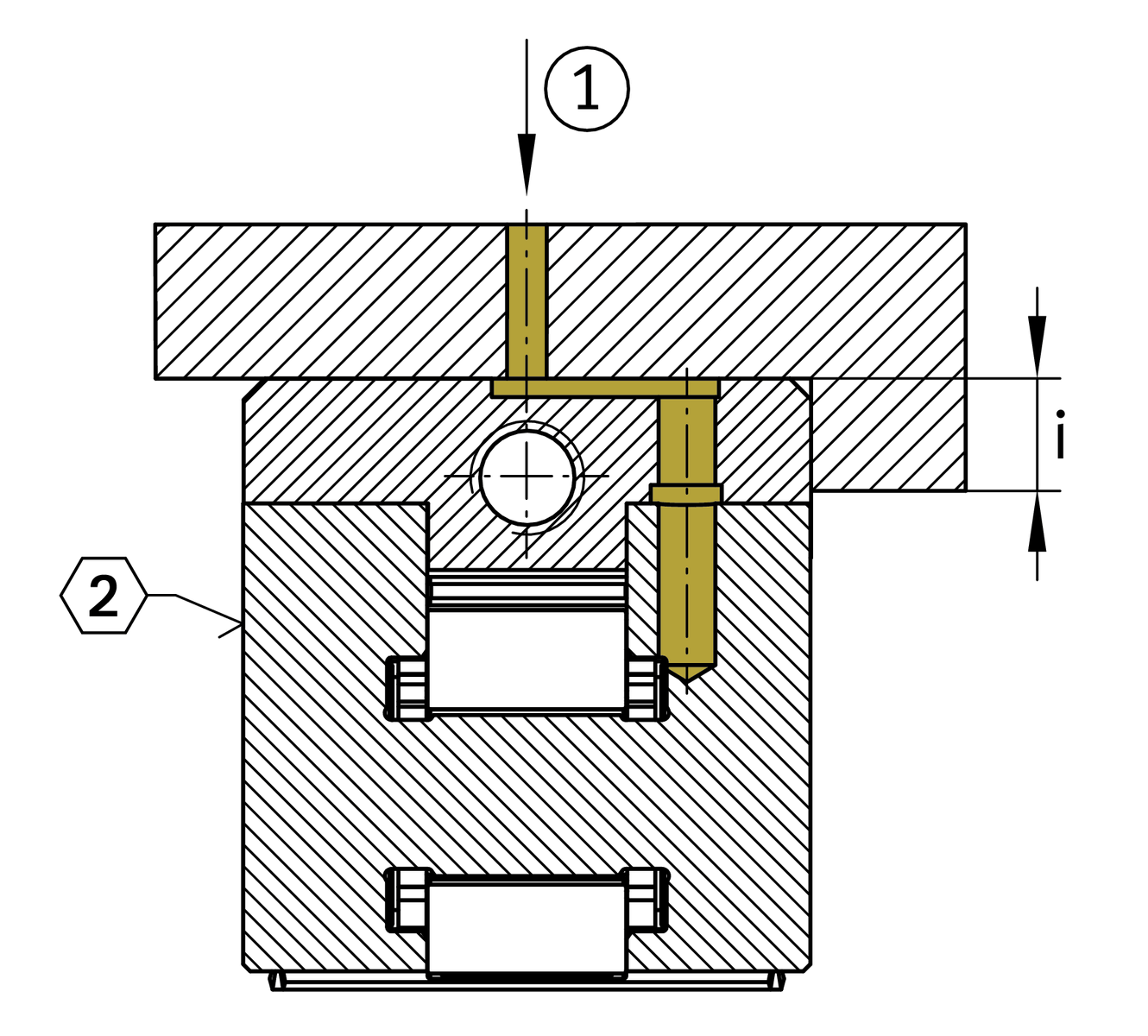

i
4 mm
Mounting dimension
P1
21 mm
d1
12 mm
P2
33 mm
P3
9 mm
d
2.5 mm
K
M6
Lubrication connector DIN3405-A
S1
3 mm
Hexagon socket adjusting screw 1
S2
2 mm
Hexagon socket counter forcing screw 1
K
M4
Size thread k DIN
K MA
5 Nm
Tightening torque fixing screws 2
D2
4.5 mm
Amax
7 mm
Screw stroke A
Delta hmax
0.37 mm
Adjustment maximum
0.035 mm
Adjustment screw revolution

Related products
UG6628, UGN6628, UZ6628, UZN6628, UFK3210, UFB4710
suitable Guide Rails

Your current product variant
Size code30069
SuffixKSwith end face lubrication connectors
