FLCTE20-XL
Flanged housing unit FLCTE20-XL
Thêm vào yêu cầu báo giá

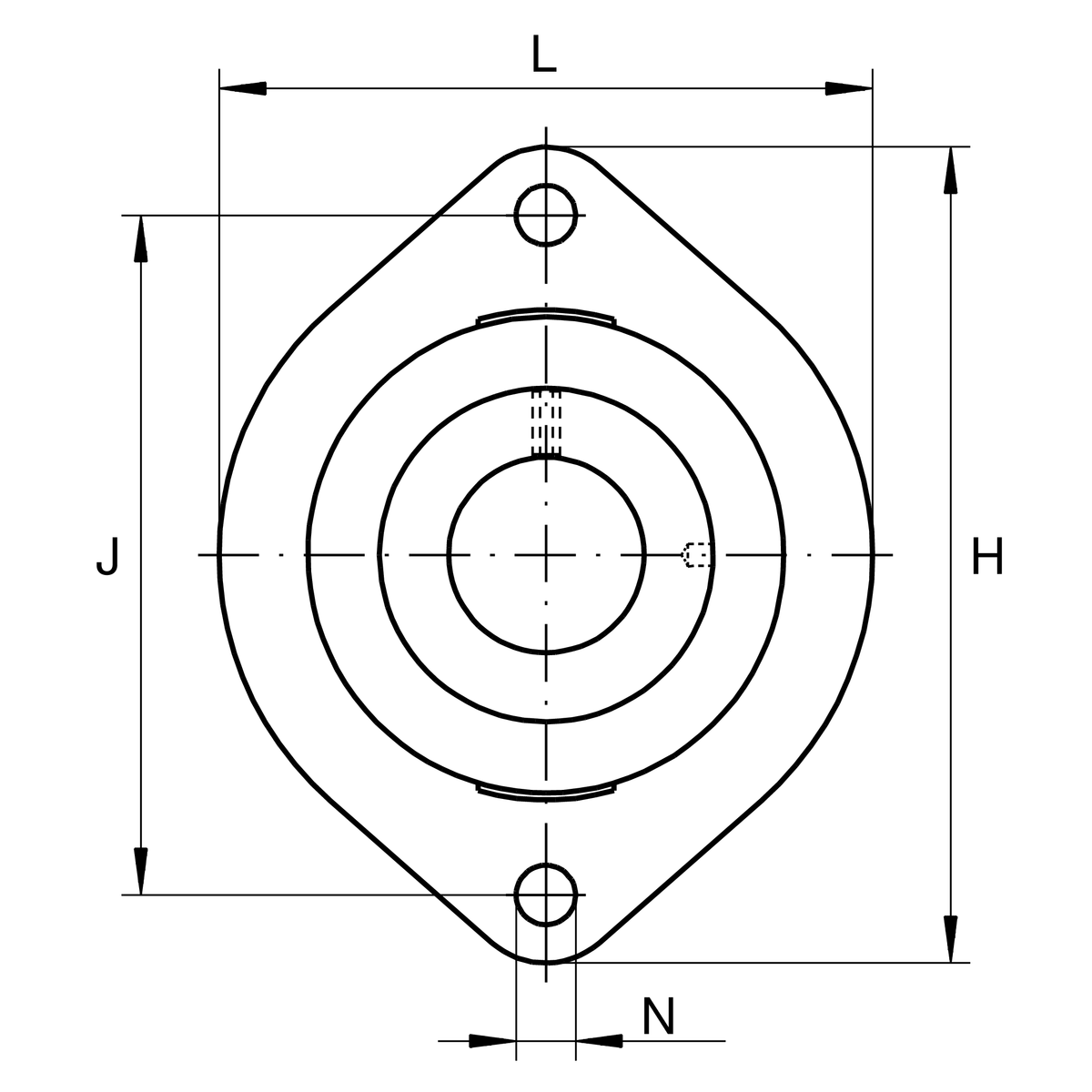

Main Dimensions & Performance Data
d
20 mm
Bore diameter
L
66.5 mm
Flange width
H
90.5 mm
Height flange
U
33 mm
Total height unit
Cr
13,600 N
Basic dynamic load rating, radial
C0r
6,600 N
Basic static load rating, radial
Cur
345 N
Fatigue load limit, radial
≈m
0.414 kg
Weight

Mounting dimensions
J
71.4 mm
Distance fixing bore
N
9 mm
Fixing bore
W
3 mm
Width across flats
n
2
Number of screwing holes

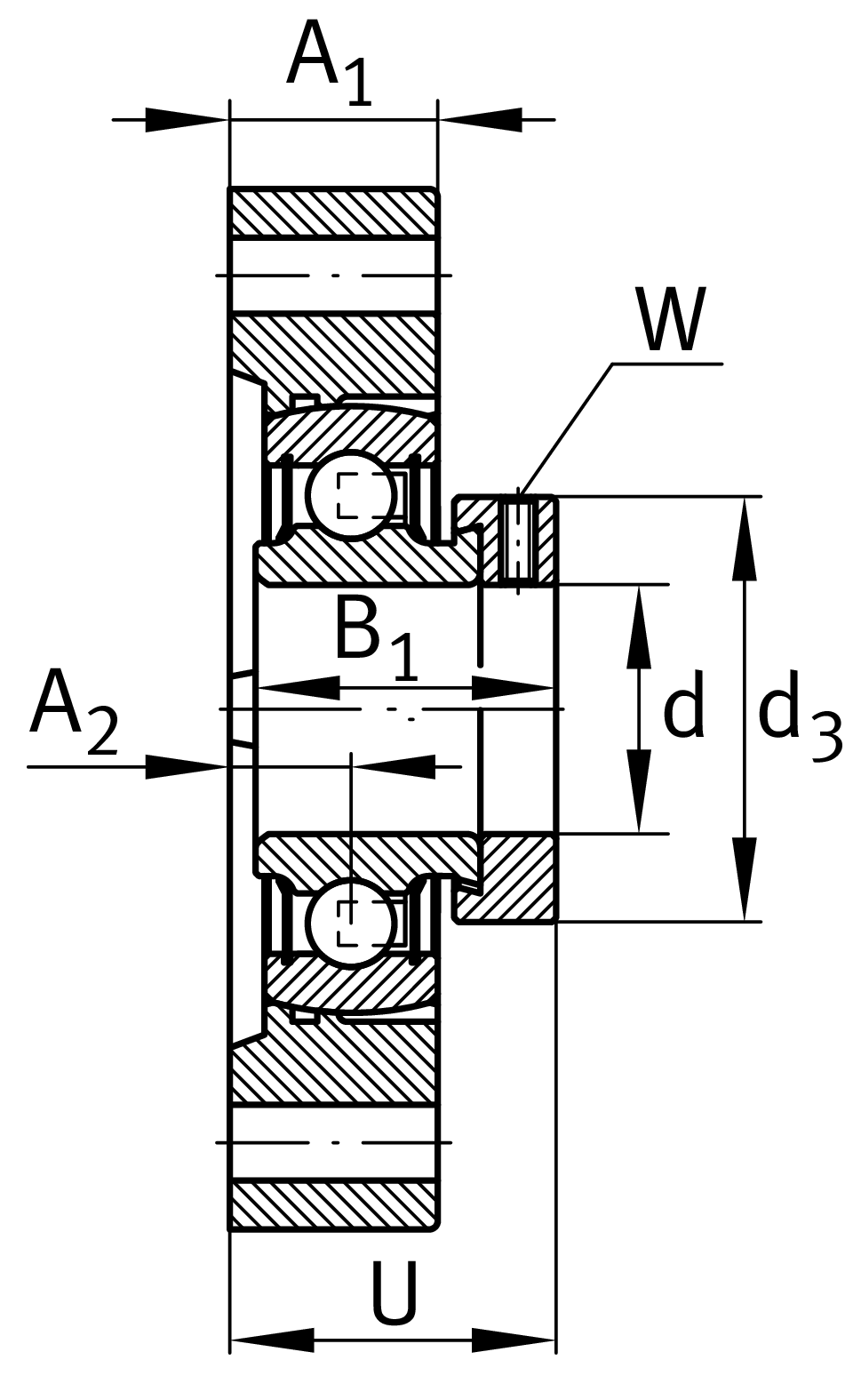

Dimensions
A1
17 mm
Thickness of flange
A2
9.5 mm
Distance raceway
B1
31 mm
Locking collar total width
d3
33 mm
Outside diameter eccentric locking collar

Additional information
1
Number of housings
LCTE04
Housing
RAE20-XL-NPP-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
